4114R-2-561 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 4114R-2-561

4114R-2-561: DescriptionResistor Networks u0026 Arrays 14 PIN BUSS. 560 OHM; CategoryPassive components; File Size214KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4114R-2-561 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4114R-2-561	-	-	View	Buy Now

4114R-2-561 Overview

Resistor Networks u0026 Arrays 14 PIN BUSS. 560 OHM

4114R-2-561 Parametric

Parameter Name	Attribute value
Product Category	Resistor Networks & Arrays
Manufacturer	Bourns
RoHS	No
Product	Networks
Termination Style	DIP
Resistor Values	560 Ohms
Tolerance	2 %
Circuit Type	Bussed
Number of Resistors	13
Number of Pins	14
Temperature Coefficient	100 PPM / C
Operating Temperature Range	- 55 C to + 125 C
Package / Case	DIP-14
Length	27.05 mm
Width	4.57 mm
Lead Spacing	2.54 mm
Power per Element	2 W
Factory Pack Quantity	25
Unit Weight	0.045856 oz

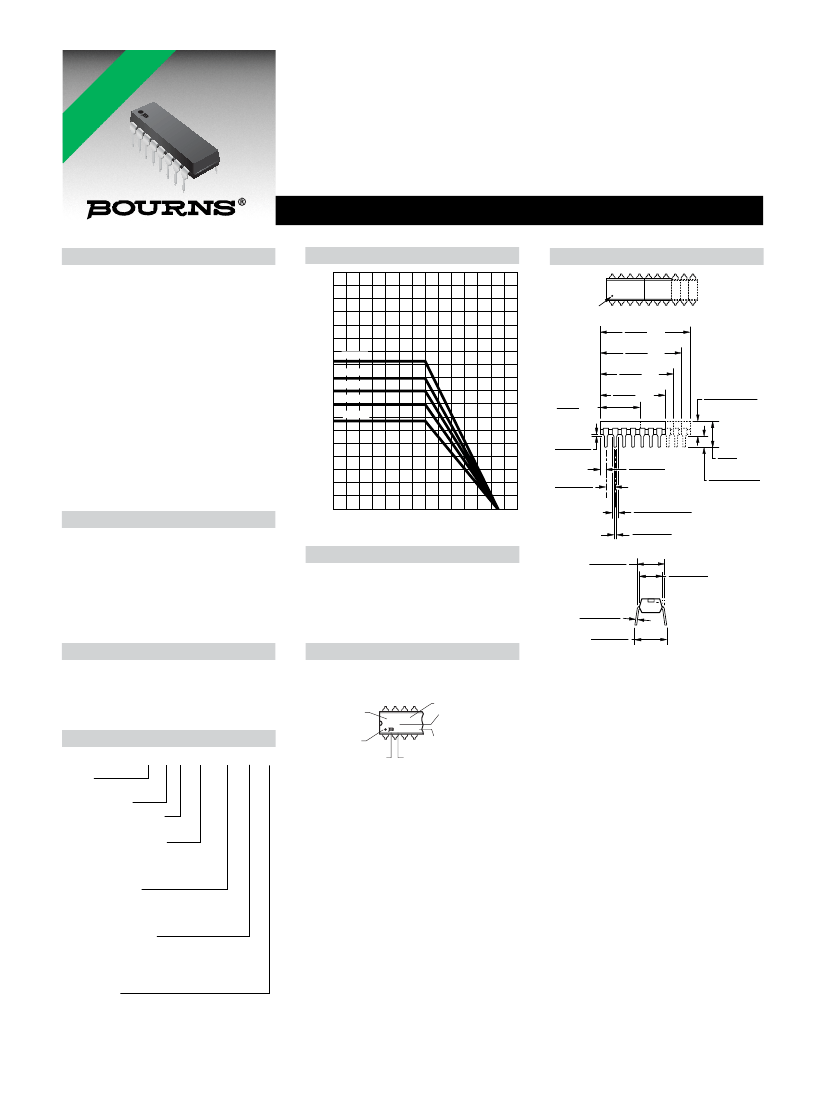

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

B L S NT

Features

■

RoHS compliant* versions available (see

How to Order “Termination” option)

■

Compatible with automatic insertion

equipment

■

Superior package integrity

■

Now available with improved tolerance

to ±0.5 %

For information on speciﬁc applications,

download Bourns’ application notes:

■

DRAM Applications

■

Dual Terminator Resistor Networks

■

R/2R Ladder Networks

■

SCSI Applications

Product Characteristics

Resistance Range

.................... 10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 MΩ...............±100 ppm/°C

below 50

.....................±250 ppm/°C

above 2.2 MΩ.................±250 ppm/°C

TCR Tracking.........................50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability .....Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

...............................................±0.25 %

Terminal Strength ......................±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material.................. Novolac epoxy

How To Order

WATTS

41 14 R - 1 - 152 __ __

Model

(41 = Molded DIP)

Number of Pins

Physical Conﬁguration

(R = Thick Film Low Proﬁle)

Electrical Conﬁguration

• 1 = Isolated

• 2 = Bussed

• 3 = Dual Terminator

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• LF = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

R–

16 40

41 120 C11

–

4100R Series - Thick Film Molded DIPs

Package Power Temp. Derating Curve

Product Dimensions

4.00

PIN #1 REF.

3.50

3.00

2.50

2.00

1.50

1.00

.50

.89 .25

(.035 .010)

TYP.

2.54 .25

(.100 .010*)

TYP.

NON-ACCUM.

8.40

MAX.

(.331)

3.43 + .38/ - .25.

(135 + .015/ - .010)

27.05

MAX.

(1.065)

24.51

MAX.

(.965)

21.97

MAX.

(.865)

19.43

MAX.

(.765)

4120R

4118R

4116R

4114R

4108R

11.81

MAX.

(.465)

4.57 + .12/ - .28

(.180 + .005/ - .007)

2.03 .12

(.080 .005)

125

AMBIENT TEMPERATURE (

C )

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

(.019

.050

TYP.

.002)

Package Power Rating at 70 °C

4108R .....................................1.69 watts

4114R .....................................2.00 watts

4116R .....................................2.25 watts

4118R .....................................2.50 watts

4120R .....................................2.80 watts

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

4116R-1-

120

CYYWW

7.87 .25

(.310 .010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254 .050

(.010 .002)

8.64 .50

(.340 .020)

6.71 .10

(.260 + .005)

(.260

- .000)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

CIRCUIT

RESISTANCE

CODE

DATE CODE

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
