20SEQP150M-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 20SEQP150M-T

20SEQP150M-T: DescriptionAluminum Organic Polymer Capacitors 20VDC,150uF,20mohm,10x13mm,Tu003c(u003eu0026u003c)u003eB; CategoryPassive components; File Size56KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

20SEQP150M-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20SEQP150M-T	-	-	View	Buy Now

20SEQP150M-T Overview

Aluminum Organic Polymer Capacitors 20VDC,150uF,20mohm,10x13mm,Tu003c(u003eu0026u003c)u003eB

20SEQP150M-T Parametric

Parameter Name	Attribute value
Product Category	Aluminum Organic Polymer Capacitors
Manufacturer	Panasonic
Factory Pack Quantity	500

Preview

Download Datasheet

View All

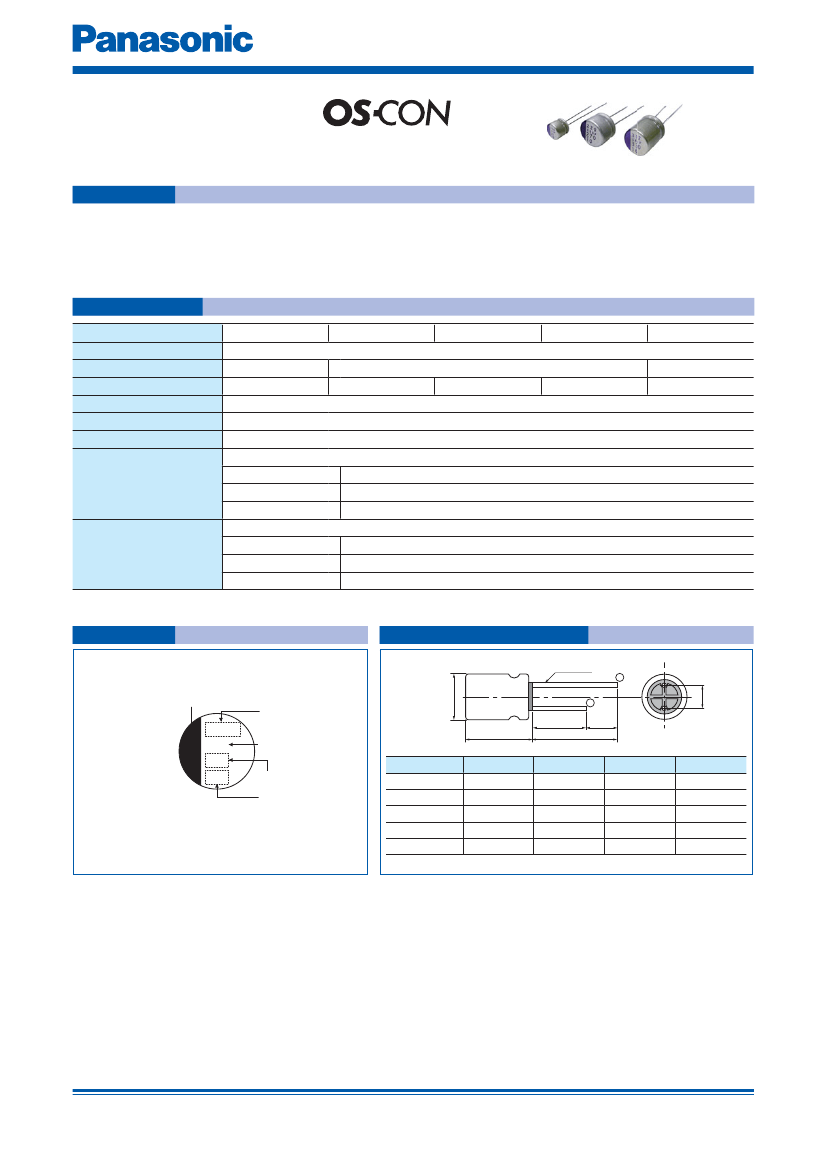

Conductive Polymer Aluminum Solid Capacitors

Radial Lead Type

Series :

SEQP

Features

●

High

voltage (32 V.DC max.)

●

125 °C 1000 h

●

RoHS compliance, Halogen free

Specifications

Size code

E12

F13

Category temperature range

–55 °C to +125 °C

Rated voltage range

4 V.DC to 20 V.DC

4 V.DC to 32 V.DC

4 V.DC to 20 V.DC

Rated capacitance range 22 µF to 150 µF 6.8 µF to 330 µF 15 µF to 680 µF

18 µF to 560 µF 150 µF to 1200 µF

Capacitance tolerance

±20 % (120 Hz / + 20 °C)

Leakage current

Please see the attached characteristics list

Dissipation factor (tan

Please see the attached characteristics list

+125 °C, 1000 h/+105 °C, 5000 h, rated voltage applied

Capacitance change Within ±20 % of the initial value

Endurance

tan

200 % of the initial limit

DC leakage current Within the initial limit

+60 °C, 90 % to 95 %, 1000 h, No-applied voltage

Capacitance change Within ±20 % of the initial value

Damp heat

(Steady State)

tan

150 % of the initial limit

DC leakage current Within the initial limit (after voltage processing)

Marking

Dimensions (not to scale)

Polarity marking (−)

Lot. No.

Series

–

Unit : mm

15 min. 4 min.

19 min.

Size code

R. Capacitance

R. Voltage

E12

F13

fD±0.5

6.3

8.0

10.0

8.0

10.0

L max.

6.0

7.0

8.0

12.0

13.0

F±0.5

2.5

3.5

5.0

3.5

5.0

fd±0.05

0.45

0.50

0.60

Externals of ﬁgure are the reference.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Nov. 2015
