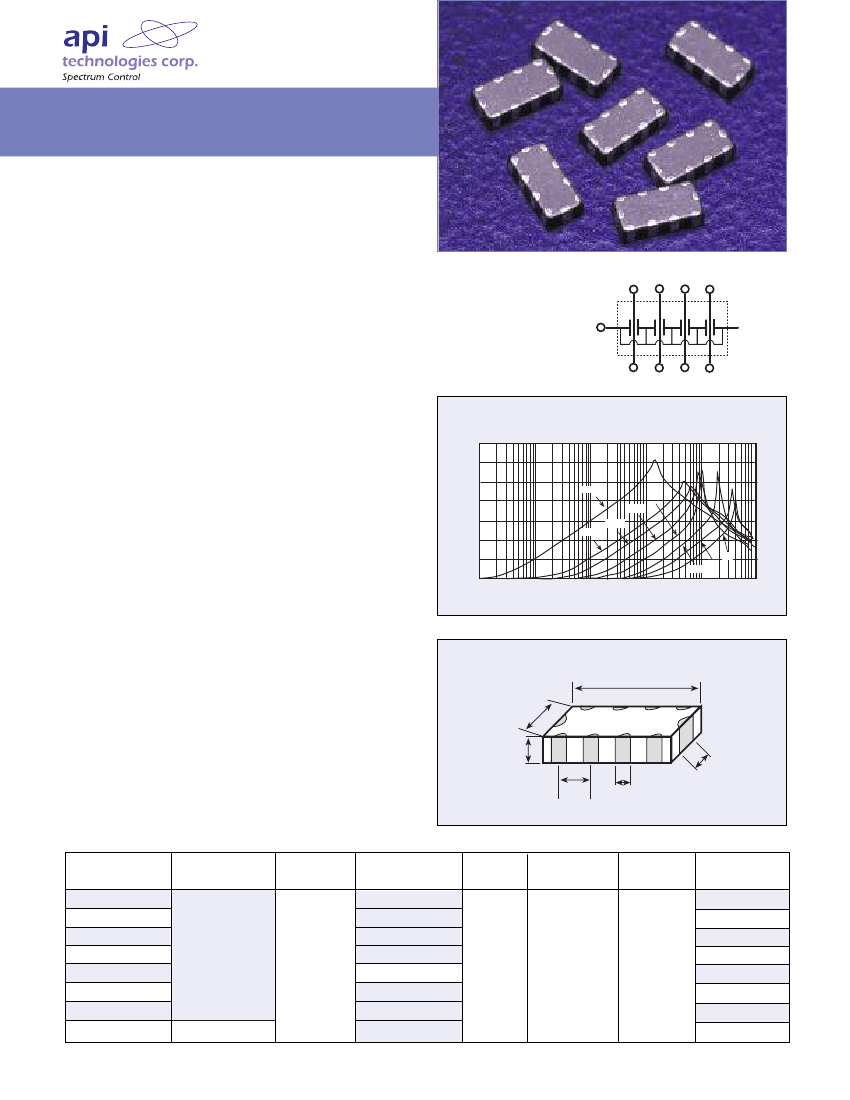

Surface Mount Filter Arrays
SA Series
Insertion Loss
Dimensions
Features
s
Equivalent Circuit
s
s
s
s
The filter’s structure minimizes residual inductance
with a high self resonant frequency, ensuring large
.125
insertion loss in a wide band.
(3.2±0.2)
The common ground electrode built into the chip
.062 (1.6±0.2)
ensures complete grounding of all lines at the
ground on both ends. The filter is designed to
control cross
.027 (0.7±0.2)
talk.
.031
An optimum constant can be selected from the
(0.8±0.2)
capacity range of 22-22,000 pF to best suit the
.015 (0.4±0.2)
frequency.
.031 (0.8±0.1)
Solder plated nickel barrier terminations offer good
solderability and resistance to soldering heat.
Available lead free/RoHs compliant
Circuit Schematic
GND
GND
Insertion Loss
70
Insertion Loss (dB)
60
50
40
30
2200
20
10
chip
0
0.1
1
10
Frequency (MHz)
100
1000
Applications
s
s
s
s
s
22000
470
Noise reduction for DC lines on computers
Computer peripheral equipment
Top side
.011 (0.3)
Digital TV & VTR
Cellular telephones
GND
Automotive electronics
.015 (0.4)
.086 (2.2)
220
PO.031 (0.8)
Top side
22
100
1000
47
10000
.011 (0.3)
GND
.039 (1.0)
Dimensions
Rated Voltage
. . . . . . . . . . . 25 VDC to 50 VDC
Rated Current
. . . . . . . . . . . 0.3 Amps
IR
. . . . . . . . . . . . . . . . . . . 10,000 MΩ Min.
DC Resistance.
. . . . . . . . . . 0.3
Ω
Max.
Temperature Range
. . . . . . . -55˚C to +125˚C
.102 (2.6)
Capacitance Range
. . . . . . . 22 pF to 22,000 pF
Copper foil pattern
Capacitance Tolerance
. . . . . ±20%
Bottom side
Dimensions
GND
.062 (1.6±0.2)
.027 (0.7±0.2)
.023 (0.6)
.125 (3.2±0.2)
.086 (2.2)
.015 (0.4)
Typical Electrical Characteristics
.102
.031 (0.8±0.2)
.015 (0.4±0.2)
.031 (0.8±0.1) Bottom side
Coppe
Specifications
Part Number
SA1206C220
SA1206C470
SA1206C101
SA1206C221
SA1206R471
SA1206R102
SA1206R222
SA1206R223
Ground pattern
Rated
Current
Temperature
Characteristic
C
C
50 VDC
C
0.3A DC
C
U
R
R
25 VDC
R
10,000 MΩ
min.
IR
DC
Resistance
Dimensions in inches
(mm)
Capacitance
(pF)
22
47
100
Ground pattern
Rated Voltage
(@ 50/60Hz)
Operating
Temp
Through hole
Thro
PO.031 (0.8)
Top side
0.3Ω max.
.011 (0.3)
-55/+125˚C
220
470
ch
GND
1,000
2,200
22,000
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
.086 (2.2)
.015 (0.4)
.039 (1.0)
SM8
Surface Mount Filter Arrays
SA Series
Ordering Information
SA
Style
1206
Size
1206
SA
Series
C
+/- 30 ppm/˚C
R
+/- 15%
U
-750 +/- 120
ppm/˚C
Temperature
Characteristics
C
Capacitance
22 pF
47 pF
100 pF
220 pF
470 pF
1,000 pF
2,200 pF
22,000 pF
220
Capacitance
tolerance
M =
± 20%
M
Rated Voltage
(Vdc)
A =
25
B =
50
B
Termination
N
N =
Ni Barrier
Solder Plated
T -
Tape and reel
4,000 pc/reel
B -
Bulk pack
1,000 pcs/bag
Packaging
B
SA Tape and Reel Packaging
ø .058 (1.5±0.1-0)
Equivalent Circuit
Dimensions
.078
(2.00±0.01)
.157
.157
(4.0±0.1)
(4.0±0.1)
.068
(1.75±0.1)
.042 (1.1) Max.
.314 (8.0±0.3)
.140
(3.60±0.2)
.125 (3.2±0.2)
.062 (1.6±0.2)
.027 (0.7±0.2)
.031 (0.8±0.2)
.015 (0.4±0.2)
.031 (0.8±0.1)
GND
.137
(3.5±0.05)
GND
Chip
.078 (2.00±0.2)
.054 (1.4) Max.
Dimensions in inches
(mm)
Recommended Board Pattern
Top side
.011 (0.3)
GND
GND
.086 (2.2)
.015 (0.4)
.039 (1.0)
.086 (2.2)
.015 (0.4)
.039 (1.0)
PO.031 (0.8)
chip
Top side
.011 (0.3)
PO.031 (0.8)
chip
GND
GND
.102 (2.6)
.023 (0.6)
Copper foil pattern
Bottom side
Ground pattern
Bottom side
Ground pattern
Copper foil pattern
.102 (2.6)
.023 (0.6)
Through hole
Through hole
Dimensions in inches
(mm)
