B1179BS-3R8N=P3 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> B1179BS-3R8N=P3

Preview

B1179BS-3R8N=P3: DescriptionFixed Inductors 3.8uH 16mOhms 6.4A +/-30%; CategoryPassive components; File Size194KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

B1179BS-3R8N=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B1179BS-3R8N=P3	-	-	View	Buy Now

B1179BS-3R8N=P3 Overview

Fixed Inductors 3.8uH 16mOhms 6.4A +/-30%

B1179BS-3R8N=P3 Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	Murata
RoHS	Details
Inductance	3.8 uH
Tolerance	30 %
Maximum DC Current	6.4 A
Maximum DC Resistance	16 mOhms
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Package / Case	-
Length	10.4 mm
Width	10.4 mm
Height	4 mm
Diameter	-
Packaging	MouseReel
Packaging	Reel
Packaging	Cut Tape
Core Material	Ferrite
Lead Diameter	-
Lead Spacing	-
Mounting Style	SMD/SMT
Operating Temperature Range	-
Q Minimum	-
Self Resonant Frequency	-
Factory Pack Quantity	500
Test Frequency	100 kHz
Type	Ferrite Inductors
Unit Weight	0.070548 oz

Preview

Download Datasheet

View All

Ferrite Inductors

铁氧½功率电感器

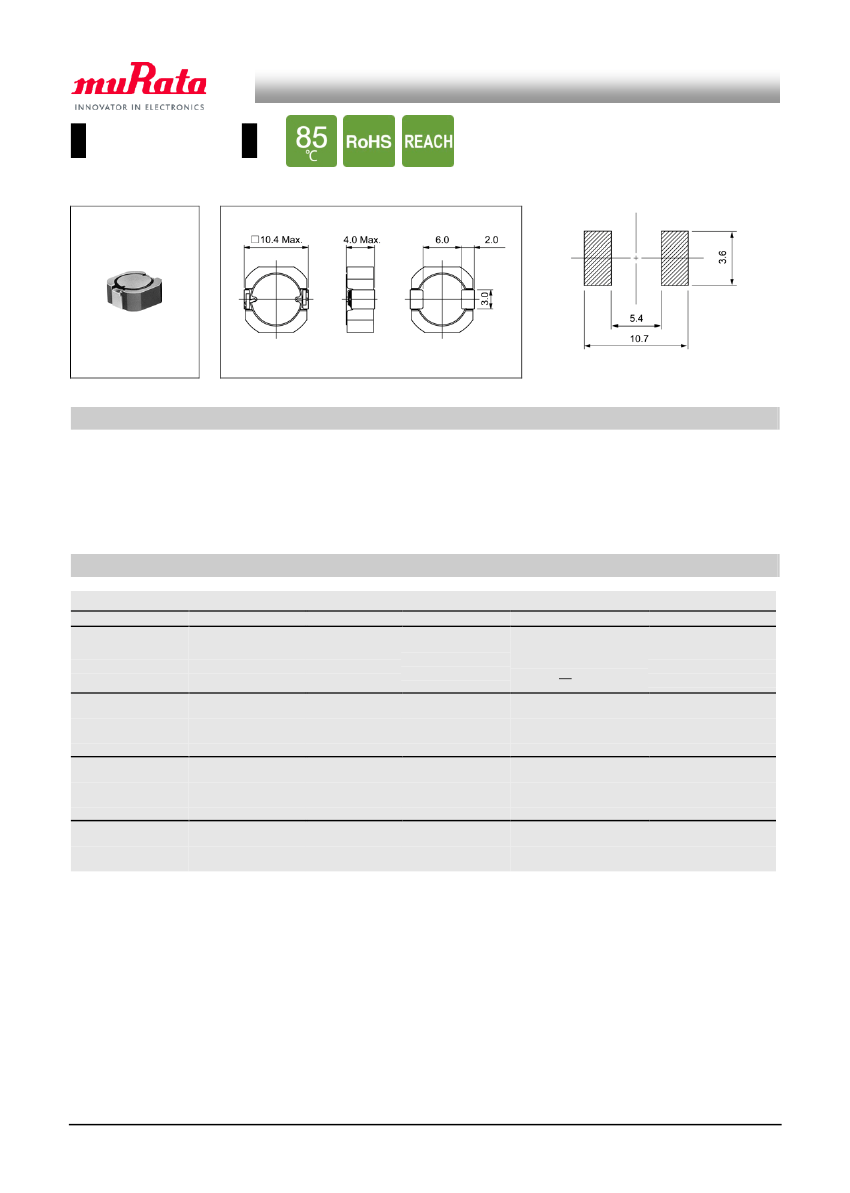

DS104LC

Inductance Range:

1.0~100µH

Recommended patterns

推荐焊盘尺寸

(Unit: mm)

FEATURES

•

特点

•

最大10.4毫米的平面，最大高度4.0毫米

磁性屏½结构和½直流电阻

适合大电流

DC-DC½换器电感器的理想选择

½用温度范围：-40½+85°C

10.4mm Max. square and 4.0mm Max. height.

Magnetically shielded construction and low DC resistance.

Suitable for large current.

Ideal for DC-DC converter inductor applications.

Operating temperature : -40½+85°C

STANDARD PART NUMBERS

标准零件号码

TYPE DS104LC (Quantity/reel; 500 PCS)

零件号码

Part

Number

B1179BS-1R0N=P3

B1179BS-1R5N=P3

B1179BS-2R2N=P3

B1179BS-3R3N=P3

B1179BS-3R8N=P3

B1179BS-5R6N=P3

B1179BS-6R8N=P3

B1179BS-100M=P3

B1179BS-150M=P3

B1179BS-220M=P3

B1179BS-330M=P3

B1179BS-470M=P3

B1179BS-680M=P3

B1179BS-101M=P3

电感值

(1)

Inductance

(1)

(µH)

1.0

1.5

2.2

3.3

3.8

5.6

6.8

10

15

22

33

47

68

100

公差

Tolerance

(%)

±

30

±

30

±

30

±

30

±

30

±

30

±

30

±

20

±

20

±

20

±

20

±

20

±

20

±

20

最大直流电阻

(2)

(典型)

最大电感值减小电流

(3)

(典型)

最大温度上升电流

(3)

(典型)

Inductance

Temperature

DC

Decrease Current

(3)

Rise Current

(3)

Resistance

(2)

(A) Max. (Typ.)

∆T=40°C

∆L

(mΩ) Max. (Typ.)

=35%

(A) Max. (Typ.)

L

5.7 (4.8)

8.1 (6.7)

9.4 (7.8)

13 (10)

16 (12)

21 (17)

24 (20)

31 (26)

56 (46)

74 (62)

100 (87)

140 (120)

190 (160)

290 (240)

13 (17)

11 (14)

8.4 (11)

7.3 (9.7)

6.4 (8.6)

5.5 (7.3)

5.0 (6.7)

4.2 (5.6)

3.3 (4.4)

2.7 (3.6)

2.2 (3.0)

1.9 (2.5)

1.6 (2.1)

1.3 (1.7)

9.5 (11)

8.2 (9.6)

6.9 (8.1)

6.0 (7.1)

5.4 (6.4)

4.7 (5.5)

4.1 (4.8)

3.6 (4.3)

2.8 (3.3)

2.3 (2.7)

1.8 (2.1)

1.6 (1.9)

1.3 (1.6)

1.1 (1.3)

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 35%

inductance reduction from the initial value, or coil temperature to

rise by 40°C, whichever is smaller.(Reference ambient

temperature: 20°C)

(1) LCR仪表4284A (Agilent技术)或者功½相同的仪器在100kHz下测

试电感值。

(2)

通过数码万用表34420A（Agilent技术）或者3541(HIOKI)测试直

流电阻。（环境温度为25°C）

(3)

允许最大直流电的范围是以下两者中比较小的一个：引起电感值

从最初值降½35%，或者线圈温度升高40°C。

（参考周围环境温度20°C）。

B1179BS-3R8N=P3 Related Products

	B1179BS-3R8N=P3	B1179BS-1R0N=P3	B1179BS-1R5N=P3	B1179BS-150M=P3	B1179BS-5R6N=P3
Description	Fixed Inductors 3.8uH 16mOhms 6.4A +/-30%	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 10uF 25volts X5R +/-20% GP	Fixed Inductors 1.5uH 8.1mOhms 11A +/-30%	LED Lighting Drivers LED DRIVER	Power Switch ICs - Power Distribution
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	Murata	Murata	Murata	-
Reach Compliance Code	-	compliant	compliant	compliant	compliant
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	-	12 weeks	12 weeks	12 weeks	-
Inductor type	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
