VJ0805Y102KXABC31

CategoryPassive components    capacitor
File Size212KB,21 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

VJ0805Y102KXABC31 Online Shopping

Suppliers Part Number Price MOQ In stock
VJ0805Y102KXABC31 - - View Buy Now

VJ0805Y102KXABC31 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Parts packaging code0805
package instruction, 0805
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
JESD-609 codee3
Manufacturer's serial numberVJ
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, PAPER, 7 INCH
positive tolerance10%
Rated (DC) voltage (URdc)50 V
size code0805
surface mountYES
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Alternative Device Available, See GA....31G and GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC

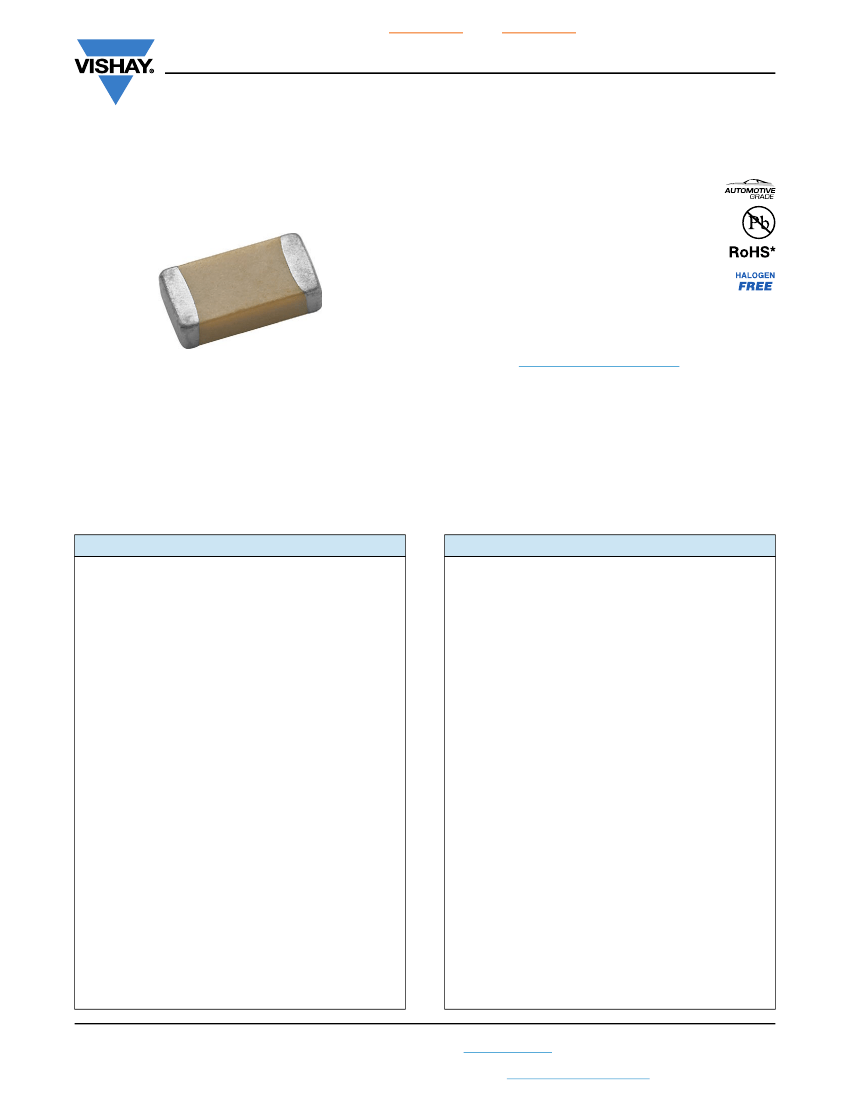

www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for Automotive Applications
FEATURES
AEC-Q200 qualified with PPAP available
Available in 0402 to 1812 body size
Four dielectric materials
AgPd termination available for silver epoxy
bonding
Available
High operating temperature
Wet build process
Reliable Noble Metal Electrode (NME) system
RoHS and ELV (end-of-life vehicles) compliance, see
Selection Charts
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
For more than 25 years Vishay Vitramon has supported the automotive industry with robust, highly reliable MLCCs that have
made it a leader in this segment. All Vishay Vitramon MLCCs are manufactured in “Precious Metal Technology” (PMT / NME)
and a wet build process. They are qualified according to AEC-Q200 with PPAP available on request. Applications for these
devices include automotive “under the hood”, safety and comfort electronics. Their termination finish is 100 % matte tin plate
finish and AgPd which is used with silver epoxy bonding. A polymer (flexible) termination with 100 % matte tin plate finish is
offered for boardflex sensitive applications.
C0G (NP0) DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
X7R, X8R DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +150 °C
(above +125 °C changed characteristics, see 2.3)
Capacitance Range:
1 pF to 22 nF
Voltage Range
:
25 V
DC
to 3000 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 MΩ min. or 1000
ΩF
whichever is less
at +125 °C 10 000 MΩ min. or 100
ΩF
whichever is less
Aging
:
0 % maximum per decad
e
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
150 % of rated voltage
3000 V
DC
-rated:
120 % of rated voltage
Revision: 29-May-17
Operating Temperature
:
-55 °C to +150 °C
(X7R above +125 °C changed characteristics, see 2.3)
Capacitance Range
:
120 pF to 1.0 μF
Voltage Range
:
16 V
DC
to 1000 V
DC
Temperature Coefficient of Capacitance (TCC):
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
X8R: ± 15 % from -55 °C to +150 °C, with 0 V
DC
applied
Dissipation Factor (DF):
10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
> 25 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 MΩ min. or 1000
ΩF
whichever is less
at +125 °C 10 000 MΩ min. or 100
ΩF
whichever is less
Aging Rate
:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated: min. 120 % of rated voltage
Document Number: 45040
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
