ERLA211LIN801KR35M

Description
Aluminum Electrolytic Capacitors - Snap In 210V 800uF 10% Tol.
CategoryPassive components
File Size259KB,2 Pages
ManufacturerUnited Chemi-Con
Websitehttp://www.chemi-con.com/
Download Datasheet Parametric View All

ERLA211LIN801KR35M Online Shopping

Suppliers Part Number Price MOQ In stock
ERLA211LIN801KR35M - - View Buy Now

ERLA211LIN801KR35M Overview

Aluminum Electrolytic Capacitors - Snap In 210V 800uF 10% Tol.

ERLA211LIN801KR35M Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - Snap In
ManufacturerUnited Chemi-Con
RoHSDetails
Capacitance800 uF
Voltage Rating DC210 VDC
Tolerance10 %
ESR-
Ripple Current4.48 A
Minimum Operating Temperature- 25 C
Maximum Operating Temperature+ 85 C
Diameter30 mm
Length35 mm
Life3000 Hour
PackagingBulk
Dissipation Factor DF0.15
Number of Pins2
ProductGeneral Purpose Electrolytic Capacitors
Factory Pack Quantity200
Termination StyleSnap In
Test Frequency120 Hz
TypeLarge Capacitance Aluminum Electrolytic Capacitors

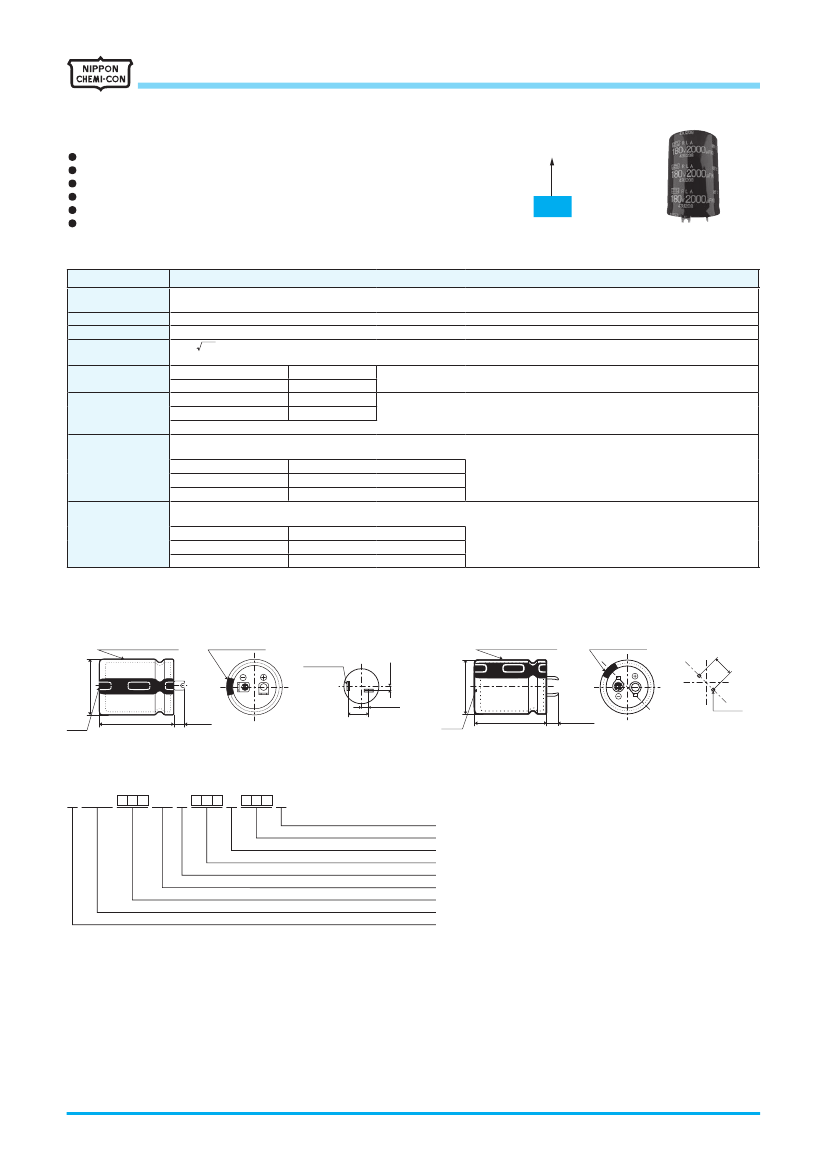

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
High ripple snap-ins, 85℃
RLA
Series
RLB
Longer life
・Endurance
with ripple current : 3,000 hours at 85℃
・High
ripple current capability in a commercial frequency range
・High
ripple current for inverter control like air conditioner
・Rated
voltage range : 180 to 250Vdc, Capacitance range : 600 to 2,200µF
・Non
solvent resistant type
・RoHS2
Compliant
RLA
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-25 to +85℃
180 to 250V
±10%
(K)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
180 to 250V
tanδ (Max.)
0.15
Rated voltage (V
dc
)
180 to 250V
Z(-25℃)/Z(+20℃)
4
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Characteristics
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 85℃.
Capacitance change
≦±20%
of the initial value
D. F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±15%
of the initial value
D. F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
Terminal
Code : LI (φ30,
φ35)
: Standard
Negative mark
PC board pin-out
(View from Solder side)
2-1.2×6
4.2
±
0.5
Terminal
Code : VS (φ30,
φ35)
Negative mark
PC board pin-out
(View from Solder side)
10
Sleeve (PVC : Black)
φD+1max.
Sleeve (PVC : Black)
φD+1max.
5
±
0.5
L
±
2.5
4.5
±
1
14.2
±
1
2-
φ2
L
±
2.5
4.0
±
0.5
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E RLA
AAA
L I N
AAA
K
AAA
M
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex .800µF:801, 2,200µF:222)
Dummy terminal code
Terminal code ( LI,VS)
Voltage code (ex.180V:181, 200V:201)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (snap-in type)"
