LFXTAL072352Reel datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL072352Reel

Preview

LFXTAL072352Reel: DescriptionCrystals 8.0MHz AEC-Q200 7.0 x 5.0 x 1.2mm; CategoryPassive components; File Size147KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFXTAL072352Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL072352Reel	-	-	View	Buy Now

LFXTAL072352Reel Overview

Crystals 8.0MHz AEC-Q200 7.0 x 5.0 x 1.2mm

LFXTAL072352Reel Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	IQD
RoHS	Details
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Load Capacitance	18 pF
Frequency	8 MHz
Tolerance	50 PPM
Frequency Stability	100 PPM
Drive Level	50 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Length	7 mm
Width	5 mm
Height	1.2 mm
Packaging	MouseReel
Packaging	Cut Tape
Packaging	Reel
ESR	150 Ohms
Mounting Style	SMD/SMT
Product	Crystals
Qualification	AEC-Q200
Factory Pack Quantity	1000
Type	Quartz Crystal
Unit Weight	0.006562 oz

Preview

Download Datasheet

View All

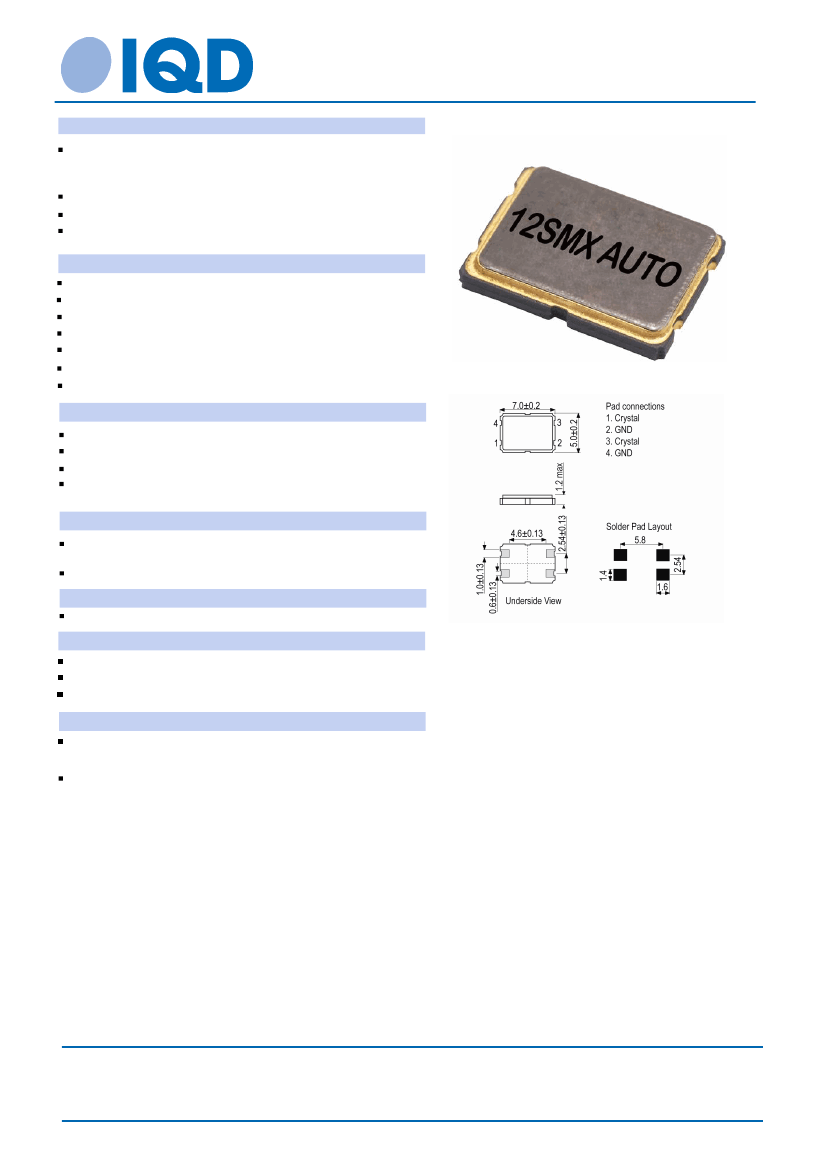

Crystal Specification

Part No. + Packaging:

LFXTAL072352Reel

Description

Ceramic package with a hermetically seam sealed metal lid

suitable for automotive applications. Qualified to AEC-Q200 and

with TS16949 release.

4 pad

Model

Model Issue number

Frequency Parameters

12SMX AUTO

3

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

8.0MHz

±50.00ppm

@ 25°C

±

100.00ppm

-40.00 to 125.00°C

Fundamental

±5ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

50µW typical

150.00Ω max

Storage Temperature Range: –45°C to Max Operating

Temperature+5°C

Qualified to AEC-Q200

Manufacturing Details

Maximum Process Temperature: 260°C (10secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 23 Jan 17 9:57 using Part Data Sheet V1.00014
