3600 Series
Flat Coil SM Power Inductors
SELECTION GUIDE
Order Code
36401C
36601C
36102C
36182C
36232C
36332C
36472C
Inductance, L
±25%
μH
0.40
0.60
1.00
1.80
2.30
3.30
4.70
DC Current
2
Max.
A
14.5
12.5
9.5
7.0
6.0
4.6
3.6
DC Resistance
Max.
mΩ
4
5
7.5
14
20
35
41
FEATURES
n
compliant
RoHS
n
Inductance range from 0.4µH to 4.7µH
n
Small footprint
n
profile
Low
n
94V-0 packaging materials
UL
n
Custom inductance values available
ABSOLUTE MAXIMUM RATINGS
Operating temperature range
Storage temperature range
SOLDERING INFORMATION
1
Peak reflow solder temperature
Pin finish
Moisure sensitivity level
-40°C to 125°C
-40°C to 150°C
250°C
Tin dip
1
PACKAGE SPECIFICATIONS
PRODUCT OVERVIEW
The 3600 series is a range of flat-coil power
inductors. They are ideal for high power designs
which demand reliability in high temperature
environments. Used to provide filtering or energy
storage, they are suited to many power applications
including portable devices, computers and telecom
equipment.

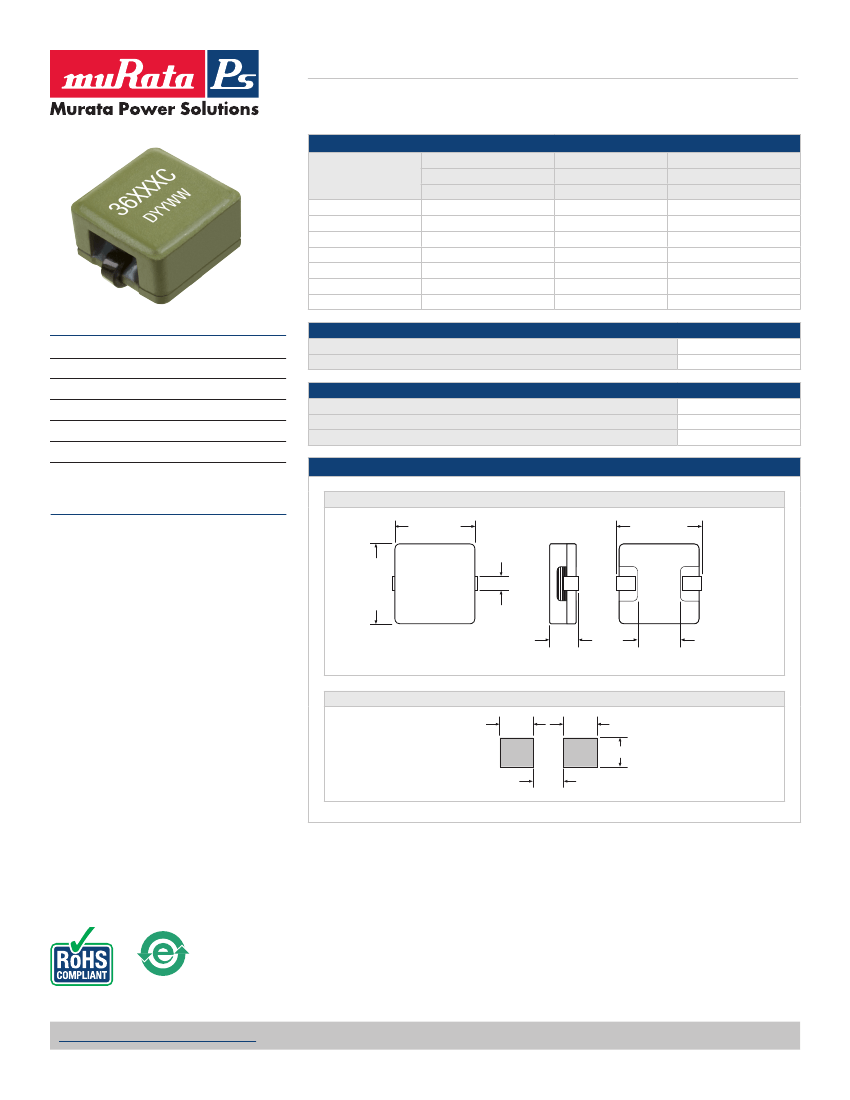

Mechanical Dimensions
6.8 (0.268) Max.
7.6 (0.299) Max.
6.8 (0.268) Max.
36XXXC
DYYWW
1.1±0.15
(0.043±0.006)
4.2 (0.165) Max.
3.6 (0.142) Min.
4.4 (0.173) Max.
Package weight: 0.8g Typ.
Recommended Footprint Details
3.0
(0.118)
3.0
(0.118)
2.5 (0.098)
2.6
(0.102)
Unless otherwise stated, all dimensions in mm (inches) ± 0.25 (0.010).
Specifications typical at T
A
= 25°C
1 For further information, please visit www.murata-ps.com/rohs
2 The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches
40°C, whichever is sooner.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KMP_3600C_A03
Page 1 of 3
3600 Series
Flat Coil SM Power Inductors
INDUCTANCE Vs CURRENT
36472C
Typical performance characteristics
36472C Inductance Vs Current
10.0
Inductance, L (µH)
1.0
0.1
0.00
0.01
0.10
1.00
10.00
Current, I
DC
(A)
TEMPERATURE Vs CURRENT
36472C
Typical performance characteristics
36472C Temperature Vs Current
120
Temperature rise above ambient, t (ºC)
100
80
60
40
20
0
0
1
2
3
4
5
6
7
8
Current, I
DC
(A)
INDUCTANCE Vs FREQUENCY
36472C
Typical performance characteristics
36472C Inductance Vs Frequency
10
Inductance, L (µH)
1
0.1
10
100
1000
10000
Frequency, (kHz)
www.murata-ps.com/support
KMP_3600C_A03
Page 2 of 3
3600 Series
Flat Coil SM Power Inductors

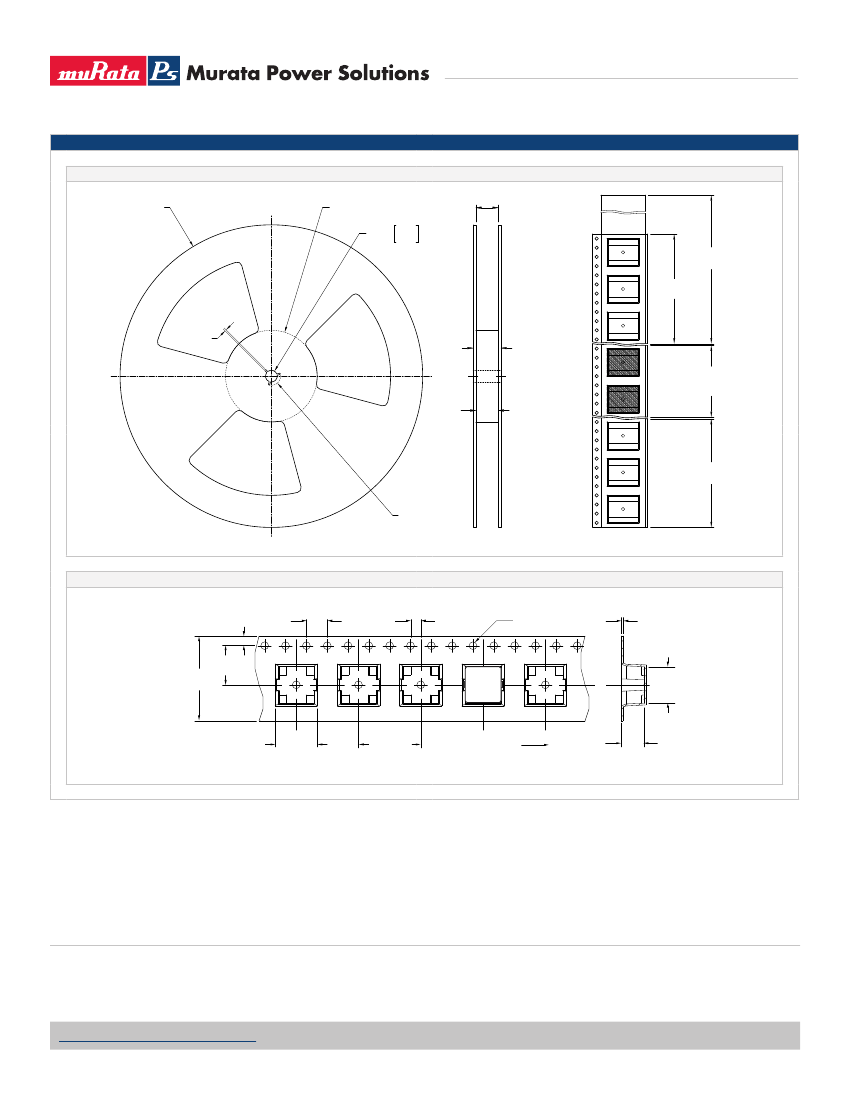

PACKAGE SPECIFICATIONS
Mechanical Dimensions
Ø331 (13.031) Max.
49.75 (1.96) Min.
Ø
13.50 0.531
Ø
12.50 0.492
Leader Section
400 (15.748) Min.
100 (3.937)
Min.
15.9-19.4*
(0.626-0.764)
1.50 (0.059) Min.
22.4
(0.882)
Max.
†
Goods
Enclosure
Section
16.3-16.7
(0.642-0.657)
†
Trailer Section
160 (6.299) Min.
All dimensions in mm (inches)
* Includes flange distortion at outer edge
† Measured at hub
Ø21.1 (Ø0.83) Min.
Tape Outline Dimensions
4.00 (0.157)
2.00 (0.079)
Ø1.50 (0.059)
0.35 (0.014)
1.75 (0.069)
7.50
(0.296)
16.00
(0.630)
36XXXC
DYYWW
7.3
(0.287)
7.0 (0.276)
Reel quantity: 1000
Unless otherwise stated, all dimensions in mm (inches).
12.00 (0.472)
Direction of unreeling
4.5 (0.177)
