HIGH FREQUENCY CYLINDRICAL TYPE
MICROPROCESSOR CRYSTAL
L
AB308
Pb
RoHS/RoHS II Compliant
8.0 x Ø3.0mm
FEATURES:
• High stability by tight vacuum sealing
• Miniature high frequency cylinder type crystal
APPLICATIONS:
• Suitable for wide range of application
• Clocks for microprocessor
• Consumer electronics
• Test equipment
• Computer peripherals
STANDARD SPECIFICATIONS:
Parameters
Frequency Range*
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Minimum
4.000
Typical
Maximum
40.000
Units
MHz
ºC
ºC
ppm
ppm
4.000 – 5.999MHz
Fundamental
6.000 – 9.999MHz
Fundamental
10.000 – 10.999MHz
Fundamental
11.000 – 19.999 MHz
Fundamental
20.000 –29.999 MHz
Fundamental
30.000 –40.000 MHz
Fundamental
40.001 – 70.000 MHz
3
rd
OT
Notes
Fundamental
3
rd
Overtone
See options
See options
40.001
70.000
Fundamental or 3
rd
Overtone
-10
+60
-40
+85
-30
+30
-50
+50
150
80
60
Equivalent series resistance (R1)
50
40
30
80
Ω
Shunt capacitance (C0)
Load capacita nce (CL)
Dr iv e Level
Aging@25°C±3°C
Insulation Resistance
5
16
-5
500
1 00
+5
pF
pF
µW
ppm
M
Ω
See options
First year
@ 100Vdc ± 15V
* Please contact Abracon for the availability of frequency>30MHz.
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.22.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
HIGH FREQUENCY CYLINDRICAL TYPE
MICROPROCESSOR CRYSTAL
L
AB308
Pb
RoHS/RoHS II Compliant
8.0 x Ø3.0mm
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
AB308 -
Frequency in MHz
Please specify the frequency
in MHz.
e.g. 14.31818MHz
Load Capacitance (pF)
Please specify CL in pF
or S for series (10pF min.)
MHz -
-
-
-
Freq. Tolerance
Blank: ± 30 ppm
5: ± 50 ppm
Please contact Abracon for
values under 10pF
Operating Temp.
Blank: -10°C ~ +60°C
E: 0°C ~ +70°C
Custom ESR if other
than STD
R□
□:
Specify a value in
Ω
(e.g.: R40)

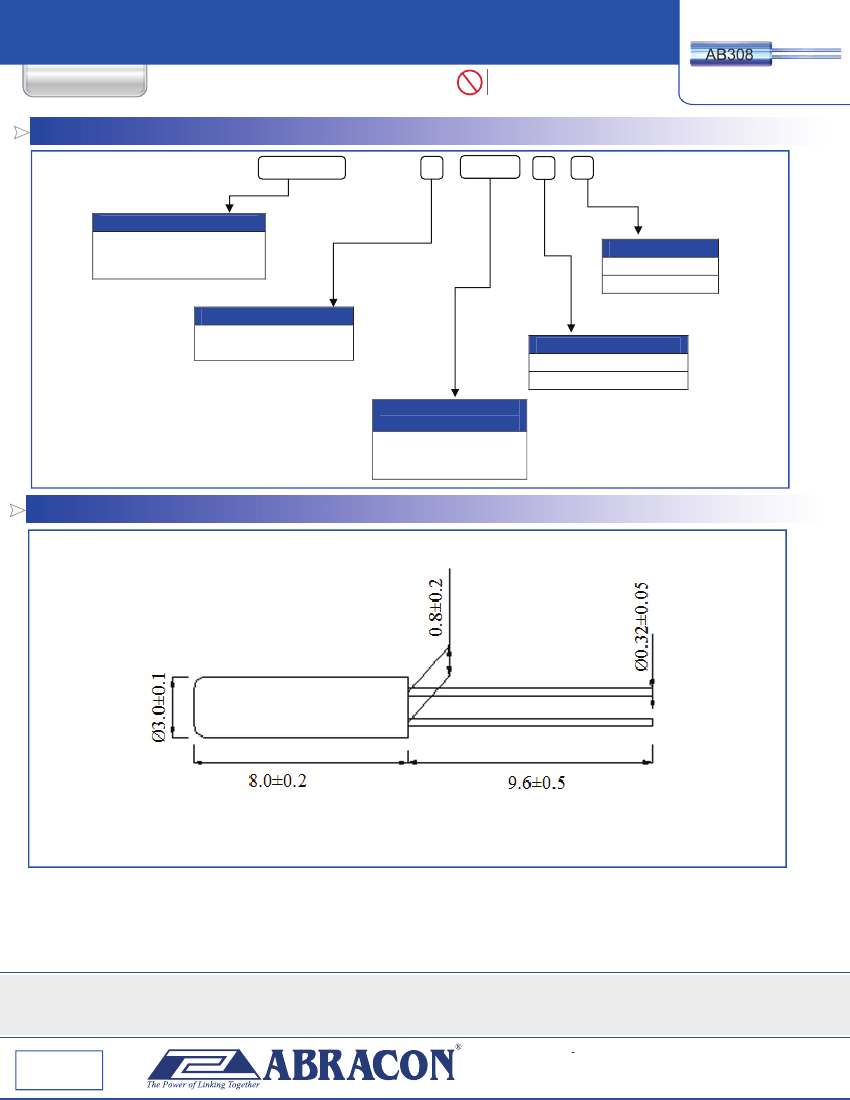

OUTLINE DRAWING:
Dimensions: mm
Packaging = Bulk, 1000pcs/bag
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.22.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
