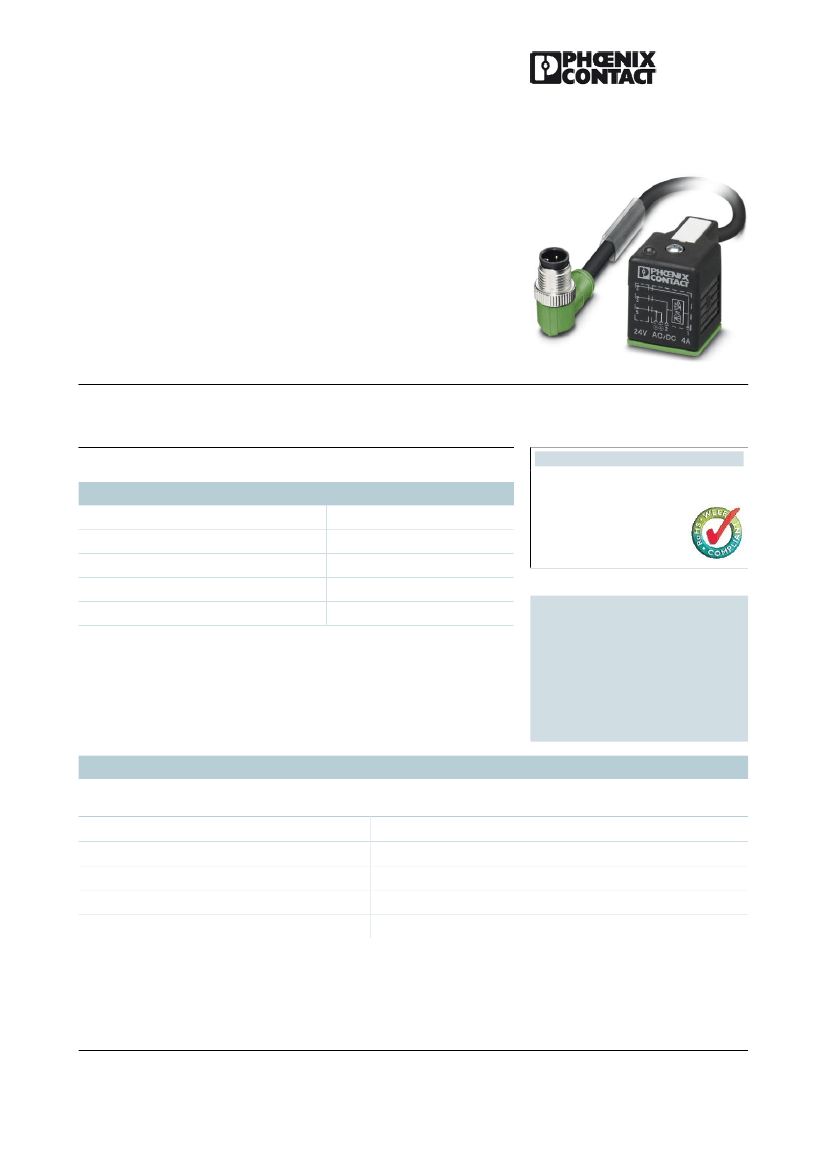

SAC-3P-M12MR/0,6-PUR/A-1L-S
Order No.: 1669288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669288
Sensor/actuator cable, 3-pos., PUR/PVC black, angled M12 plug on
valve connector type A, with one LED and Z-diode, cable length: 0.6 m
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918136154
1 pcs.
85444290
0.0758 KG
Page 90 (PC-2007)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
12/01/2006
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
4A
24 V
3
≤ 5 mΩ
≥ 100 MΩ
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 5
Jul 12, 2009
SAC-3P-M12MR/0,6-PUR/A-1L-S
Order No.: 1669288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669288
Length of cable
Ambient temperature (operation)
0.6 m
-25 °C ... 90 °C (plug/socket)
-20 °C ... 80 °C (valve plug)
-30 °C ... 70 °C (cable, fixed installation)
-5 °C ... 70 °C (cable, flexible installation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Contact material
Contact surface material
Valve plug contact insert material
Material, housing, valve plug
Sealing material
Status display
Protective circuit/component
Conductor data
Cable type
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure, signal line
Core diameter including insulation
Thickness, insulation
PUR/PVC black
LiYY11Y-JZ
0.75 mm²
18
42x 0.15 mm
Approx. 1.8 mm
Approx. 0.34 mm (Core insulation)
Approx. 0.35 mm (Outer cable sheath)
Approx. 0.3 mm (Inner sheath)
External cable diameter
Wire colors
5.90 mm
Black 1, black 2, green/yellow
A - standard
HB
II
3
IP67
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
CuSn
Ag
PBT
PBT
TPU (Flat gasket valve plug)
1 LED
Z diode
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 5
Jul 12, 2009
SAC-3P-M12MR/0,6-PUR/A-1L-S
Order No.: 1669288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669288
External sheath, color
Insulation resistance
Nominal voltage, conductor
Test voltage, conductor
Overall twist
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Smallest bending radius, movable installation

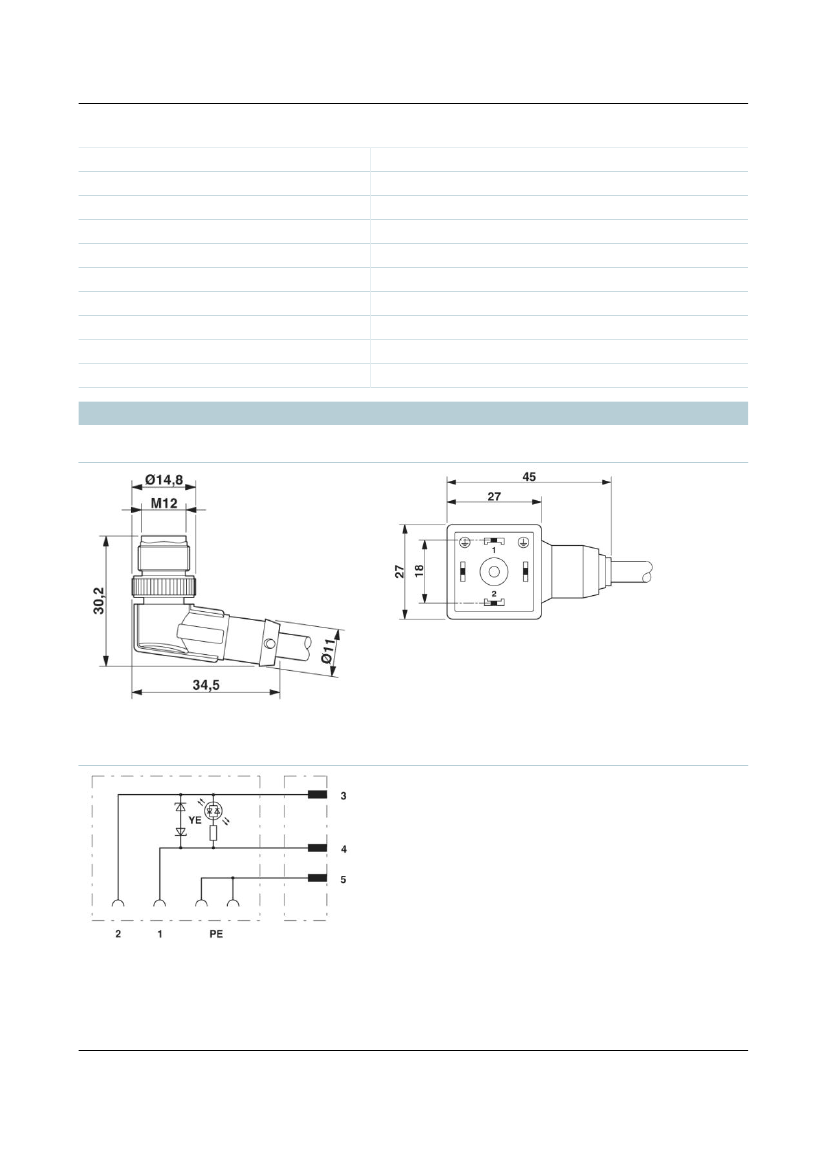

Drawings
Dimensioned drawing
Black RAL 9005
≥ 1 MΩ*km
300 V
2000 V
3 concentrically twisted wires
PUR
PVC
PVC
Bare Cu litz wires
59 mm
Valve plug, type A
M12 x 1 male connector, angled
Circuit diagram
Contact assignment of M12 plug and valve connector
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 5
Jul 12, 2009
SAC-3P-M12MR/0,6-PUR/A-1L-S
Order No.: 1669288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669288

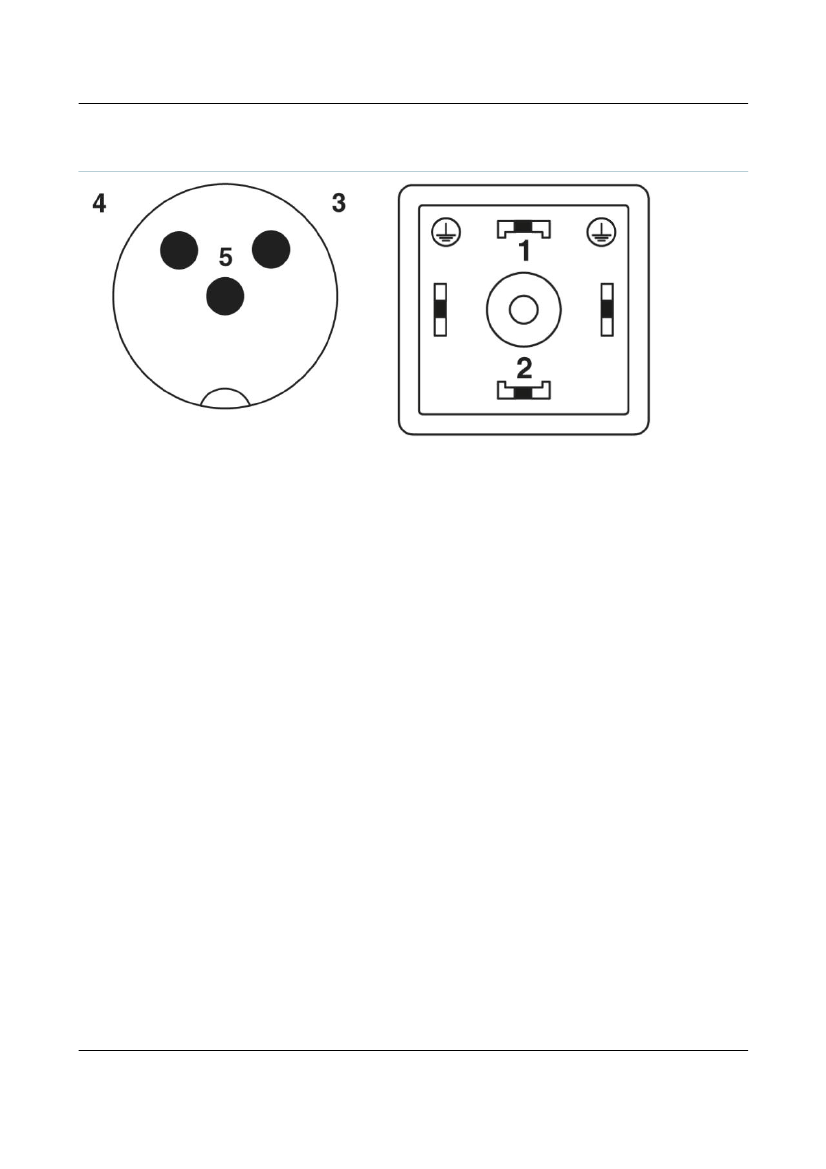

Schematic diagram
Pin assignment M12 plug, 3-pos., valve
connector
Valve connector pin assignment, type A
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 5
Jul 12, 2009
SAC-3P-M12MR/0,6-PUR/A-1L-S
Order No.: 1669288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1669288
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
