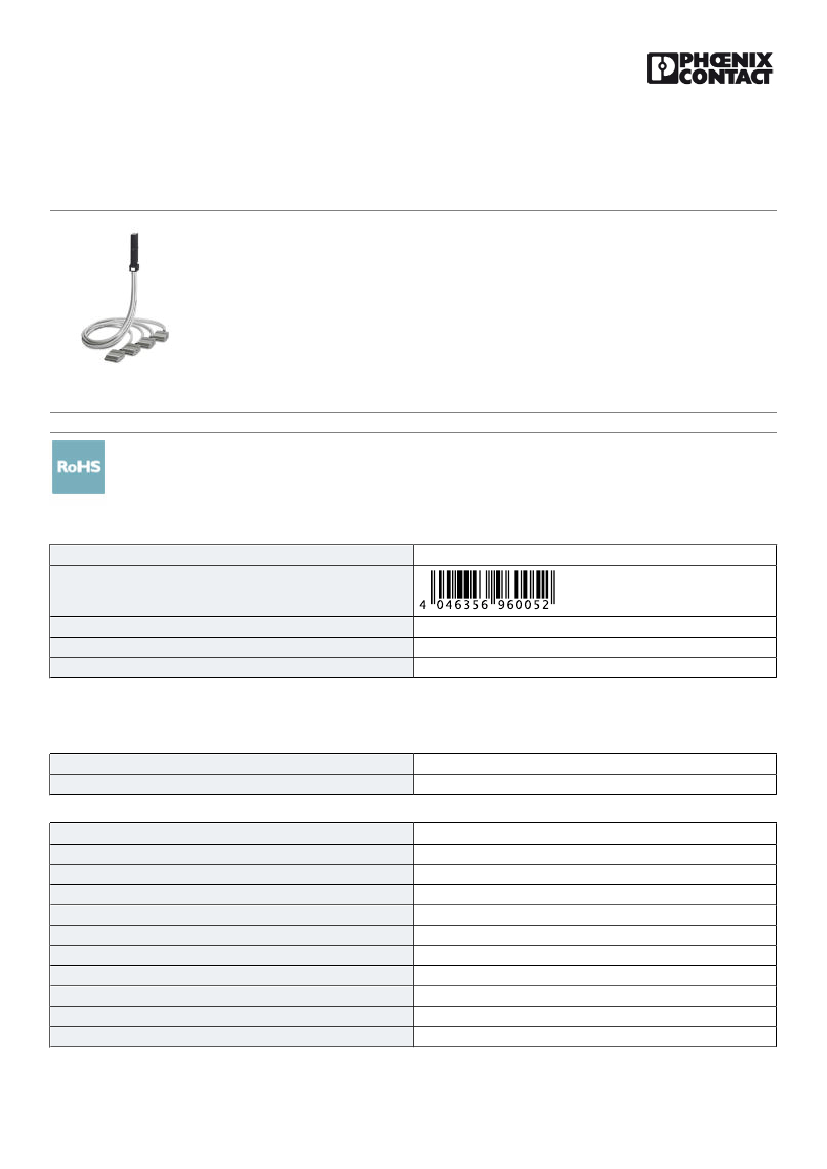

Front adapters - VIP-PA-PWR/4X10 PT/ 8,0M/S7 - 2905525
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VIP power cabling, universal front adapter for connecting all common 40-pos. SIMATIC S7-300 I/O modules,
via four cables each with a 10-pos. COMBI connector, pitch: 3.5 mm, Cable length: 8 m
The figure shows version VIP-PA-
PWR/4X10COMBI/.../S7
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356960052
85444290
Made to Order (non-returnable)
1 STK
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 60 °C
-20 °C ... 80 °C
General
Nominal voltage U
N
Max. permissible current
Max. permissible total current
Mounting position
Nominal operating mode
Degree of protection
Standards/regulations
≤ 250 V AC/DC
6 A (per single wire at 40°C)
4 A (per single wire at 60°C)
20 A (per cable at 40 °C)
16 A (per cable at 60°C)
any
100% operating factor
IP20
DIN EN 50178
IEC 60664
IEC 62103
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/2905525
Front adapters - VIP-PA-PWR/4X10 PT/ 8,0M/S7 - 2905525
Technical data
General
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
260 V
4 kV (basic insulation)
2
III
Connection data 1
Connection name
Connection method
Note
Controller level
Plug connection
Can be plugged onto 40-pos. I/O modules
Connection data 2
Connection name
Connection method
Number of connections
Number of positions
Pitch
Field level
COMBICON connectors
4
10
3.5 mm
Cable
Individual wires per module
Single wire, material
Single wire, cross section
External diameter
Length of cable
Max. conductor resistance
16
Cu uninsulated
0.5 mm²
9 mm
8m
≤ 39 Ω/km
Supported controller
Controller
- suitable I/O card
SIEMENS S7-300 / ET 200 M
6ES7 321-1BL00-0AA0
6ES7 321-1EL00-0AA0
6ES7 321-1CH00-0AA0
6ES7 321-1FF10-0AA0
6ES7 322-1BL00-0AA0
6ES7 322-8BH10-0AB0
6ES7 322-5GH00-0AB0
6ES7 322-5FF00-0AB0
6ES7 322-5HF00-0AB0
6ES7 322-1HF10-0AA0
6ES7 323-1BL00-0AA0
6ES7 331-7NF00-0AB0
6ES7 331-7NF10-0AB0
6ES7 331-1KF02-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/2905525
Front adapters - VIP-PA-PWR/4X10 PT/ 8,0M/S7 - 2905525
Technical data
Supported controller
6ES7 331-7PE10-0AB0
6ES7 332-5HF00-0AB0
6ES7 326-1BK02-0AB0
6ES7 326-1RF00-0AB0
6ES7 326-2BF41-0AB0
6ES7 326-2BF01-0AB0
6ES7 326-2BF10-0AB0
6ES7 336-1HE00-0AB0
Standards and Regulations
Connection in acc. with standard
Standards/regulations
CUL
DIN EN 50178
IEC 60664
IEC 62103
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
260 V
4 kV (basic insulation)
2
III
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
B
Circuit diagram
COMBI
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
1 2
3
4
5
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
S7 - 300
S7 - 300
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
A
6
7
8
9 10
A
...4X10COMBI...
B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
COMBI
52
...2X10COMBI...
...4X10 PT...
70
35
...2X10 PT...
62
Approvals
Approvals
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/2905525
Front adapters - VIP-PA-PWR/4X10 PT/ 8,0M/S7 - 2905525
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 70019651
6A
250 V
Nominal current IN
Nominal voltage UN
EAC RU C-DE.A*30.B00767
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
