856-10-001-10-002000

Description
Circuit Board Hardware - PCB 30P PIN RECEPTACLE W/OFP SOLDER BARRIER
CategoryThe connector    The connector
File Size577KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

856-10-001-10-002000 Online Shopping

Suppliers Part Number Price MOQ In stock
856-10-001-10-002000 - - View Buy Now

856-10-001-10-002000 Overview

Circuit Board Hardware - PCB 30P PIN RECEPTACLE W/OFP SOLDER BARRIER

856-10-001-10-002000 Parametric

Parameter NameAttribute value
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.087 inch
subject depth0.87 inch
body length0.065 inch
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
Insulation resistance10000000000 Ω
Plug contact pitch0.05 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.1 inch
Termination typeSOLDER
Total number of contacts1
SPRING-LOADED
CONNECTORS

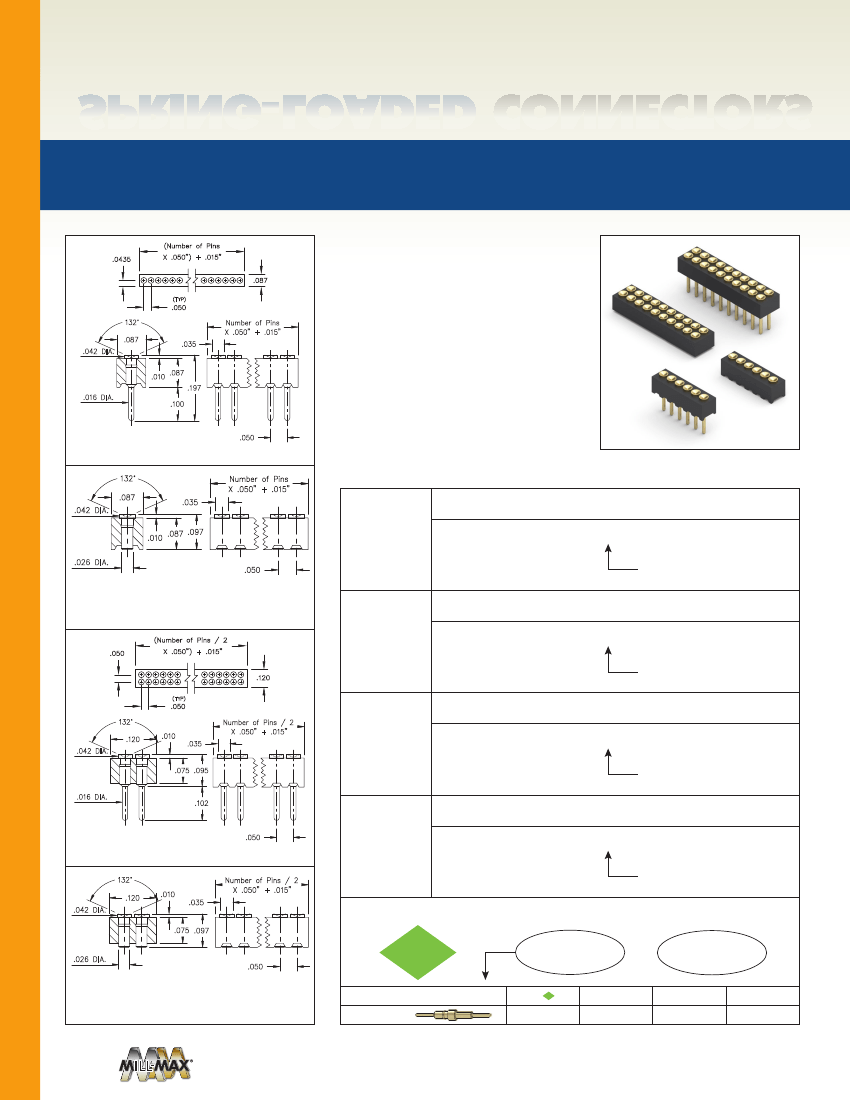

SERIES 856, 857 • .050” GRID CONCAVE FACE TARGET CONNECTORS
FOR SPRING-LOADED ASSEMBLIES • SINGLE AND DOUBLE ROW STRIPS
• Series 856 and 857 Target Connectors, SMT &
through-hole, supplied in single and double
row strips
• Target Connectors provide an excellent gold-
plated conductive mating surface for spring
loaded connectors. These series are offered
with a concave face for making contact with
our standard .019” dia. spring pin plungers
• Target connectors use MM #1934 (through-
hole) and #1936 (surface mount) pins. See
page 223.2 for details
FIG. 1
• Insulators are high temperature thermoplastic
ORDERING INFORMATION
Series 856...10-002
Concave face / Solder Tails
FIG. 1
Coplanarity .005”. For Pin counts >20 positions, consult
Technical Support.
856-10-0_ _-10-002000
Specify number of pins
01-20
FIG. 2
Series 856...30-002
Concave face / Surface Mount
FIG. 2
856-10-0_ _-30-002000
Specify number of pins
02-20
Series 857...10-002
Concave face / Solder Tails
FIG. 3
PAGE 21.4 | SPRING-LOADED CONNECTORS
857-10-0_ _-10-002000
Specify number of pins
04-40
Series 857...30-002
Concave face / Surface Mount
FIG. 3
FIG. 4
857-10-0_ _-30-002000
Specify number of pins
04-40
2011/65/EU
RoHS - 2
XX=Plating Code
See Below
10
10
μ”
Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
Coplanarity .005”. For Pin counts >40 positions, consult
Technical Support.
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
