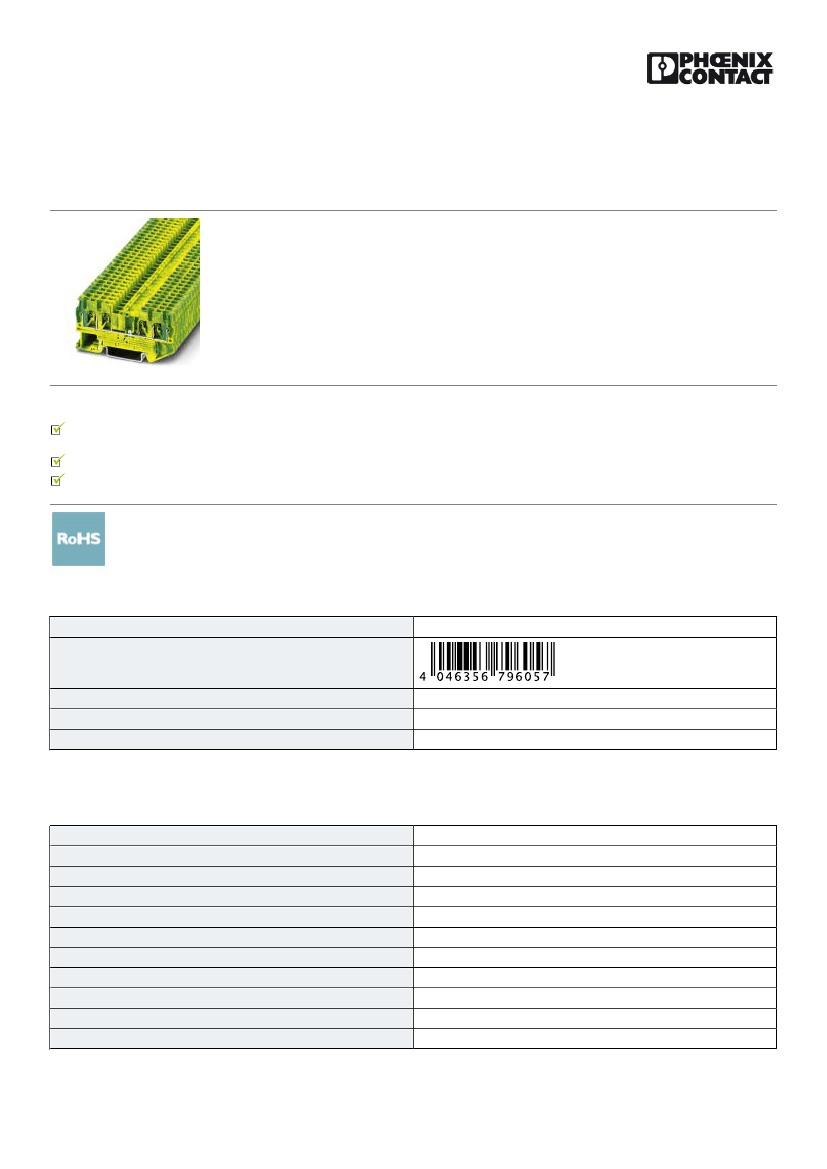

Ground modular terminal block - FT 2,5-QUATTRO-PE - 3270065
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, without actuation lever, Connection method: Push-in connection, Cross
section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Height: 35.3 mm, Color: green-yellow, Mounting
type: NS 35/7,5, NS 35/15
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356796057
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
4
1
2.5 mm²
green-yellow
PA
V0
Machine building
Plant engineering
Process industry
Rated surge voltage
8 kV
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3270065
Ground modular terminal block - FT 2,5-QUATTRO-PE - 3270065
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.964 (m/s ) /Hz
0.58 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3270065
Ground modular terminal block - FT 2,5-QUATTRO-PE - 3270065
Technical data
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
5.2 mm
2.2 mm
72.2 mm
35.3 mm
36.8 mm
44.3 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Internal cylindrical gage
Please observe the current carrying capacity of the DIN rails.
Push-in connection
IEC 60947-7-2
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
26
12
8 mm ... 10 mm
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-2
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3270065
Ground modular terminal block - FT 2,5-QUATTRO-PE - 3270065
Approvals
Approvals
Approvals
CSA / NK / BV
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
26-12
mm²/AWG/kcmil
NK http://www.classnk.or.jp/hp/en/ 14ME0913
BV http://www.veristar.com/portal/veristarinfo/generalinfo/approved/approvedProducts/equipmentAndMaterials 25278/A3 BV
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
