LMS_033_YTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LMS_033_YTP

LMS_033_YTP: DescriptionLED Light Pipes Light Pipe w/Lens LMS033YTP; CategoryLED optoelectronic/LED; File Size68KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric View All

LMS_033_YTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LMS_033_YTP	-	-	View	Buy Now

LMS_033_YTP Overview

LED Light Pipes Light Pipe w/Lens LMS033YTP

LMS_033_YTP Parametric

Parameter Name	Attribute value
Product Category	LED Light Pipes
Manufacturer	Visual Communications Company, LLC
RoHS	Details
Product	Light Pipe Assembly
Packaging	Bulk
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

REVISIONS

ECN #

REV.

001

002

DESCRIPTION

REVISED PER ECR 111009AZ01

MODIFIED GENERAL TOLERANCE .XX

DATE

8/18/10

11/14/11

NOTES:

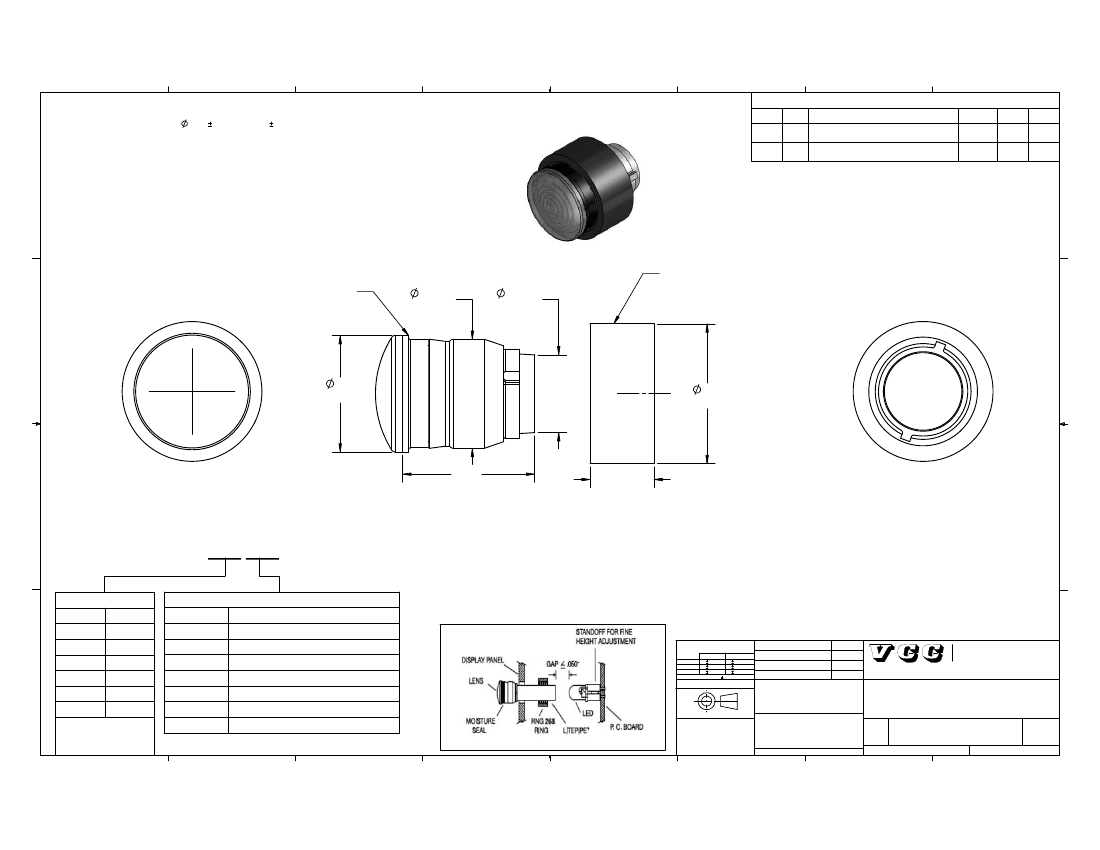

MOUNTING: Mounts in a .281 .002 (7.14mm 0.051) panel hole on .375 (9.53mm) centers.

Panel thickness .031 (.8mm) to .125 (3.18mm). Panel hole shall be deburred, but not chamfered.

ASSEMBLY: Insert Litepipe through the panel hole and press on retaining ring to secure unit to

panel. Slide PCB into position aligning LED with the end of the Litepipe unit.

MATERIAL: Litepipe - Acrylic (Clear optical grade) UL 94-HB

Lens - Polycarbonate UL 94-V2

Seal - TPE

Retaining Ring - Polypropylene (Black)

Meets NEMA 4/IP 56 standards

U.S. & Foreign Pat. Issued

INITIALS

CHK'D

DPZ

MOISTURE

SEAL

.280

(7.112mm)

.200

(5.080mm)

RETAINING

RING

.300

(7.620mm)

.360

(9.144mm)

.XXX

.165

(4.191mm)

ORDERING CODE:

LMS XXX XXX

LITEPIPE

XXX = LENGTH

033

.330"

053

.530"

073

.730"

093

0.93"

113

1.13"

133

1.33"

CUSTOM LENGTHS

AVAILABLE UPON

REQUEST

LENS

XXX =

RTP

ATP

GTP

BTP

YTP

CTP

GLO

COLOR

RED TRANSPARENT

AMBER TRANSPARENT

GREEN TRANSPARENT

BLUE TRANSPARENT

YELLOW TRANSPARENT

CLEAR TRANSPARENT

WHITE TRANSLUCENT

ASSEMBLY

DIMENSION STYLE: INCHES [MM]

GENERAL TOLERANCES UNLESS

OTHERWISE SPECIFIED

APPROVAL

DATE

8/18/10

8/19/10

.XX

.XXX

INCHES

.020

.015

.005

ANGLE 1'

.508

.381

.127

DRAWN

CHECKED

MATERIAL

K HOWARD

DPZ

OPTOELECTRONICS

190 BOSSTICK BLVD. SUITE 101 SAN MARCOS, CA 92069 U.S.A

PHONE: (760) 560-1300, FAX: (760) 560-1301 EMAIL: vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

THIRD ANGLE PROJECTION

5MM MOISTURE SEALED

LITEPIPE

SIZE DWG. NO.

REV

PROPRIETARY AND CONFIDENTIAL

FINISH

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS

A WHOLE WITHOUT THE WRITTEN

PERMISSION OF VISUAL

COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

SEE NOTES

DO NOT SCALE DRAWING

LMS XXX XXX

002

SHEET 1 OF 1

SCALE: 6:1
