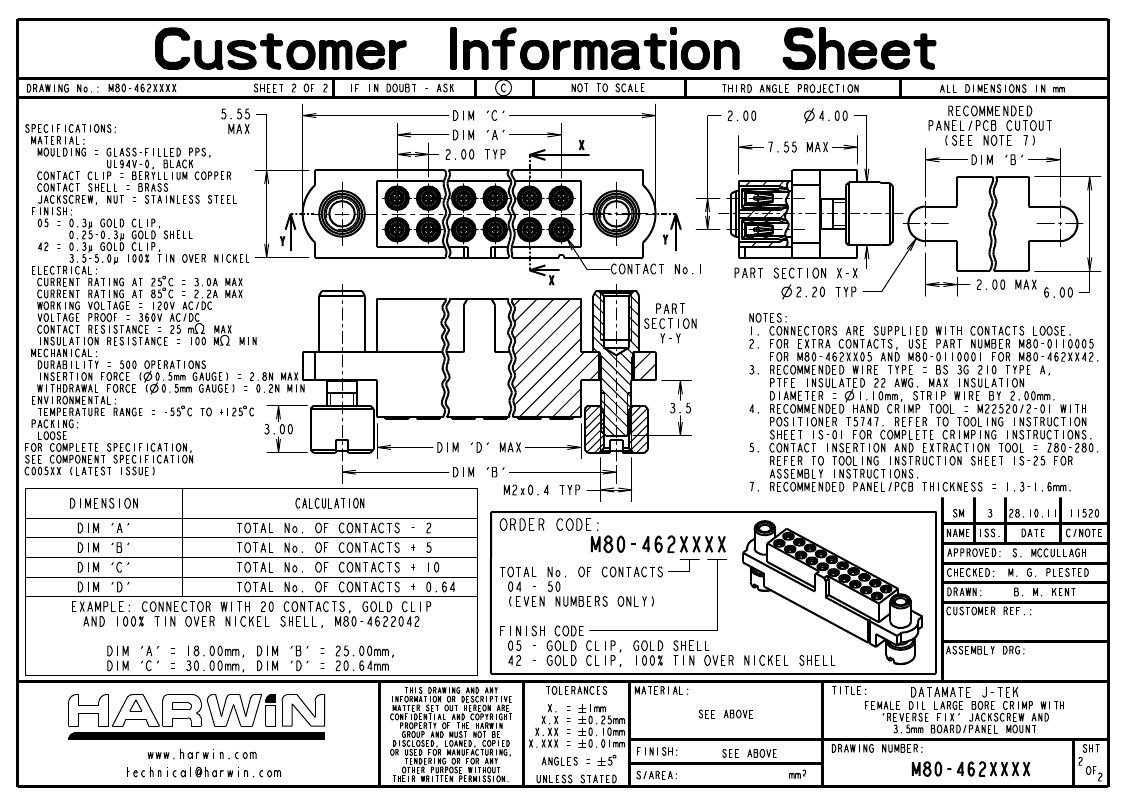

M80-4625042: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4625042 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4625042	-	-	View	Buy Now

M80-4625042 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE

M80-4625042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1784629767
package instruction	LEAD FREE
Reach Compliance Code	not_compliant
Country Of Origin	UK
ECCN code	EAR99
Samacsys Description	Datamate J-Tek DIL Female Large Bore (22AWG) Crimp Connector, gold clip + tin shell, with reverse fix jackscrews + board mount, 25+25 contacts
Samacsys Manufacturer	Harwin
Samacsys Modified On	2020-07-27 08:04:58
YTEOL	0
Other features	PANEL MOUNTABLE
body width	0.219 inch
subject depth	0.297 inch
body length	2.362 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG

Preview

Download Datasheet

View All

M80-4625042 Related Products

	M80-4625042	M80-4624242	M80-4622042
Description	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE	Headers u0026 Wire Housings 22+22 DIL FEMALE L/B REV/FJS	Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug, LEAD FREE
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Objectid	1784629767	-	1784629763
package instruction	LEAD FREE	-	LEAD FREE
Reach Compliance Code	not_compliant	-	not_compliant
Country Of Origin	UK	-	UK
Samacsys Description	Datamate J-Tek DIL Female Large Bore (22AWG) Crimp Connector, gold clip + tin shell, with reverse fix jackscrews + board mount, 25+25 contacts	-	Datamate J-Tek DIL Female Large Bore (22AWG) Crimp Connector, gold clip + tin shell, with reverse fix jackscrews + board mount, 10+10 contacts
Samacsys Manufacturer	Harwin	-	Harwin
Samacsys Modified On	2020-07-27 08:04:58	-	2020-07-27 08:04:58
Other features	PANEL MOUNTABLE	-	PANEL MOUNTABLE
body width	0.219 inch	-	0.219 inch
subject depth	0.297 inch	-	0.297 inch
body length	2.362 inch	-	1.181 inch
Body/casing type	PLUG	-	PLUG
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contactor design	LOOSE	-	LOOSE
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL	-	TIN OVER NICKEL
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR
Contact resistance	25 mΩ	-	25 mΩ
Contact style	RND PIN-SKT	-	RND PIN-SKT
DIN compliance	NO	-	NO
Durability	500 Cycles	-	500 Cycles
Filter function	NO	-	NO
IEC compliance	NO	-	NO
maximum insertion force	2.78 N	-	2.78 N
Insulation resistance	100000000 Ω	-	100000000 Ω
Insulator color	BLACK	-	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE	-	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e3	-	e3
MIL compliance	NO	-	NO
Plug contact pitch	0.079 inch	-	0.079 inch
Match contact row spacing	0.079 inch	-	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation option 1	LOCKING	-	LOCKING
Installation option 2	JACKSCREW	-	JACKSCREW
Installation type	CABLE	-	CABLE
Number of connectors	ONE	-	ONE
Number of rows loaded	2	-	2
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Plating thickness	12u inch	-	12u inch
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING
Rated current (signal)	3 A	-	3 A
Guideline	UL	-	UL
Termination type	CRIMP	-	CRIMP
Total number of contacts	50	-	20
UL Flammability Code	94V-0	-	94V-0
Maximum wire diameter	22 AWG	-	22 AWG
Minimum wire diameter	22 AWG	-	22 AWG
