52745-2097

Description
RF Connectors / Coaxial Connectors SMT ML REC AU 50 OHM W/ANTI SLDR WCKNG RL
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52745-2097 Online Shopping

Suppliers Part Number Price MOQ In stock
52745-2097 - - View Buy Now

52745-2097 Overview

RF Connectors / Coaxial Connectors SMT ML REC AU 50 OHM W/ANTI SLDR WCKNG RL

52745-2097 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresEASY-ON, POLARIZED
body width0.079 inch
subject depth0.197 inch
body length0.634 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYAMIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness39u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts20
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1

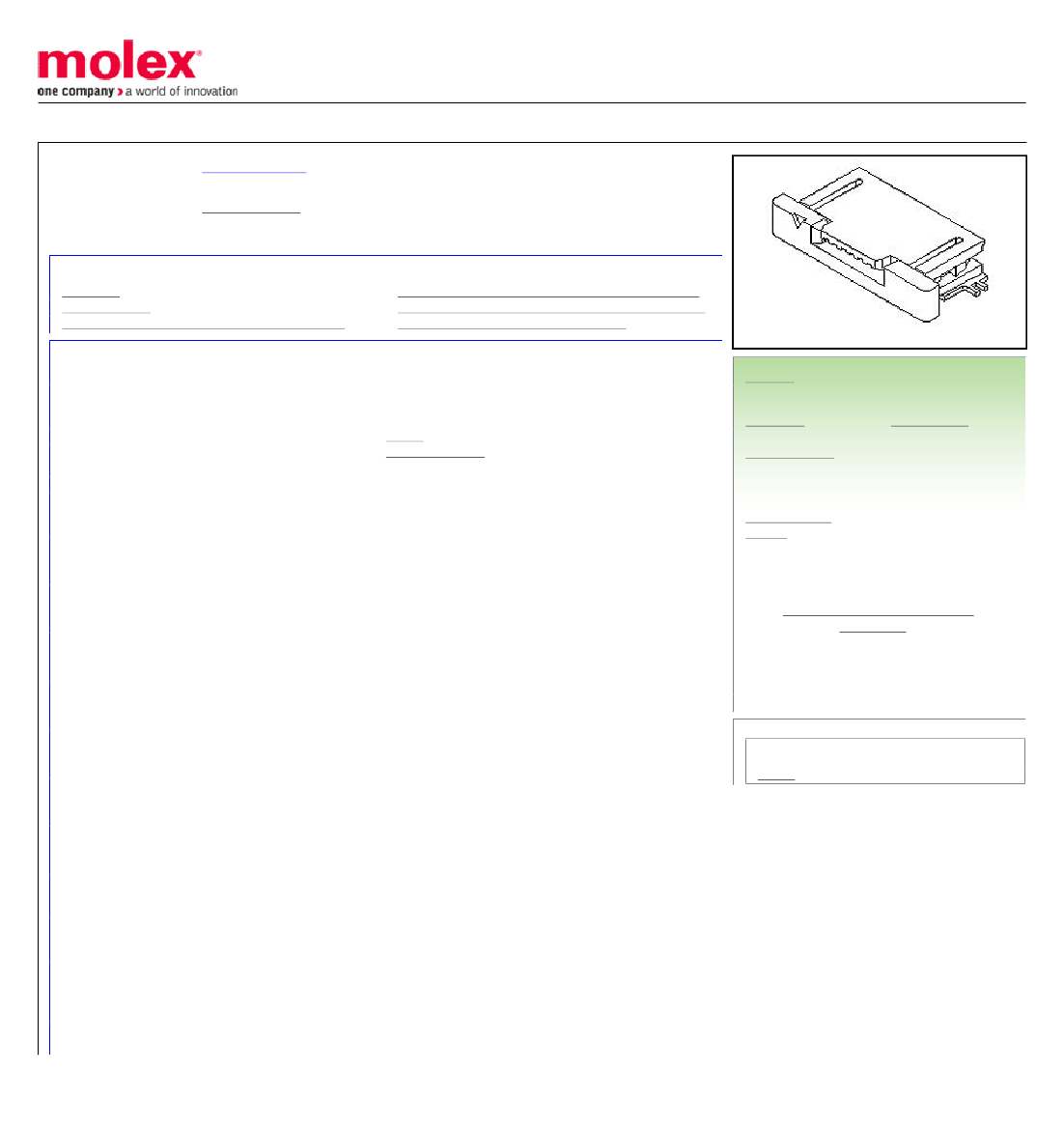

This document was generated on 10/31/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0527452097
Active
FFC-FPC (SMT)
0.50mm Pitch Easy-On Type FFC/FPC Connector, Right Angle, Surface Mount, ZIF,
Top Contact Style, 20 Circuits, Gold (Au) Contact Plating, High Barrier Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52745-051-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-52745-001-001 (PDF)
Packaging Specification SPK-52745-002-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E29179
FFC/FPC Connectors
52745
FFC-FPC (SMT)
Easy-On
822348250585
20
Black, White
Top
20
90° Angle
94V-0
2.00mm
Phosphor Bronze
Gold
Gold
242.510/mg
1
Right Angle
No
Yes
Embossed Tape on Reel
0.50mm
Yes
No
-40°C to +85°C
Surface Mount
FFC/FPC
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
52745 Series
AS-52745-001-001
SPK-52745-002-001
PS-52745-051-001
SD-52745-050, SD-52745-051
