76160-3008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76160-3008

76160-3008: DescriptionHigh Speed / Modular Connectors Impact DC 4x8 GL Sn; CategoryThe connector The connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76160-3008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76160-3008	-	-	View	Buy Now

76160-3008 Overview

High Speed / Modular Connectors Impact DC 4x8 GL Sn

76160-3008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	11 weeks
body width	0.748 inch
subject depth	1.109 inch
body length	0.898 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.075 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	96

Preview

Download Datasheet

View All

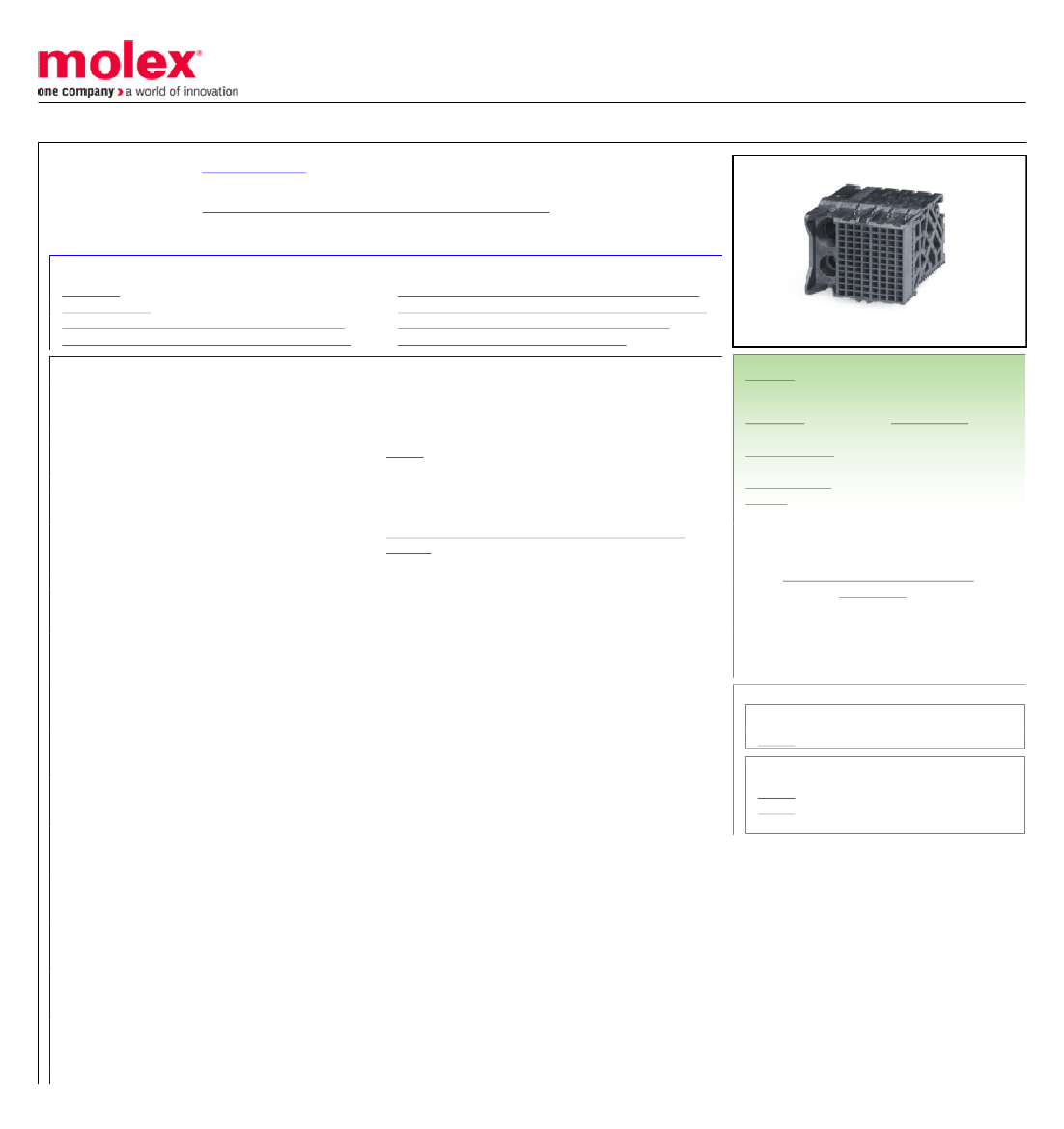

This document was generated on 10/12/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0761603008

Active

Impact Backplane Connector and Cable Assembly System

Impact 100 Ohm 4 Pair Right Angle Daughtercard Receptacle, Left Guided, 8 Columns,

96 Circuits, Plated Through Hole Dimension 0.46mm, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Product Specification TS-76160-0001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Electrical Model

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Application Specification AS-76060-990-001 (PDF)

Application Specification AS-76060-9999-001 (PDF)

Packaging Specification PK-70873-610 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

E29179

Backplane Connectors

76160

Conventional, Coplanar, Daughtercard

TM-622018799

PCB Receptacle

Yes

Impact Backplane Connector and Cable Assembly

System

Impact

884982283503

Black

200

94V-0

Yes

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

10.638/g

Right Angle

1.20mm

None

1.00mm

Tray

1.90mm

0.762µm

Yes

-55°C to +85°C

Through Hole - Compliant Pin

Search Parts in this Series

76160 Series

Mates With

76155 Impact 100 Ohm Vertical Header,
