30FLS-RSM1-TB(D)(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 30FLS-RSM1-TB(D)(LF)(SN)

30FLS-RSM1-TB(D)(LF)(SN): DescriptionCard Edge Connector; CategoryThe connector The connector; File Size812KB，3 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

30FLS-RSM1-TB(D)(LF)(SN) Overview

Card Edge Connector

30FLS-RSM1-TB(D)(LF)(SN) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

FLS

CONNECTOR

0.5mm

pitch

Emboss Tape

Connectors for FPC

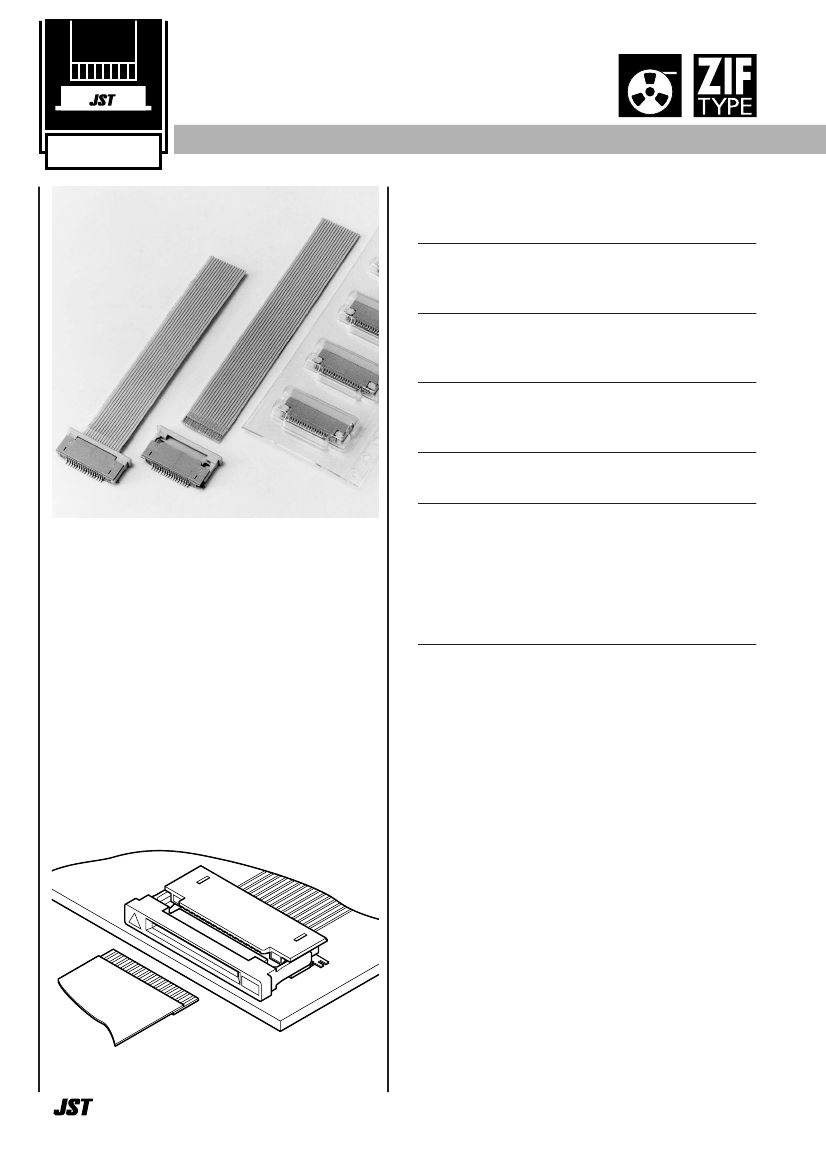

Features––––––––––––––––––––––––

• Easy location of FPC

The shrouded FPC entry point allows the FPC to be positioned

and hold in place before the connector is locked.

• Zero insertion force mechanism

A ZIF mechanism increases wear resistance and extends the

connector’s mating life.

• Heat resisting design suitable for surface mounting

The housing is made of heat resisting resin to allow reflow

soldering.

• In-line surface mounting

Has an in-line surface mount tails for easy inspection.

• Two types of connections

Compact connector with just 2.0mm high

after mounting on the PC board.

Available both in normal type and reverse

type.

The connector is available in either the normal or reverse

configurations. The FPC is positioned with its mating surfaces

facing upward for the normal configured connector, while the

reverse configuration requires that the FPC be positioned with

its mating surfaces facing down. The engineer has greater

freedom in designing his circuitry.

• Embossed tape for automatic mounting

The FLS connector can be packaged in embossed tape for

automatic mounting.

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/40m

Ω

max.

After environmental testing/60m

Ω

max.

• Insulation resistance: 800M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.03mm

Note

FPC to be actually used should be checked for applicability.

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

Certified LR20812
