HC3-5553-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HC3-5553-5

HC3-5553-5: DescriptionHC3-5553-5; CategoryWireless rf/communication Telecom circuit; File Size760KB，11 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HC3-5553-5 Overview

HC3-5553-5

HC3-5553-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
Law of compression and extension	MU-LAW
filter	YES
Maximum gain tolerance	0.15 dB
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
linear encoding	NOT AVAILABLE
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Certification status	Not Qualified
Maximum slew rate	0.018 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Telecom integrated circuit types	PCM CODEC
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

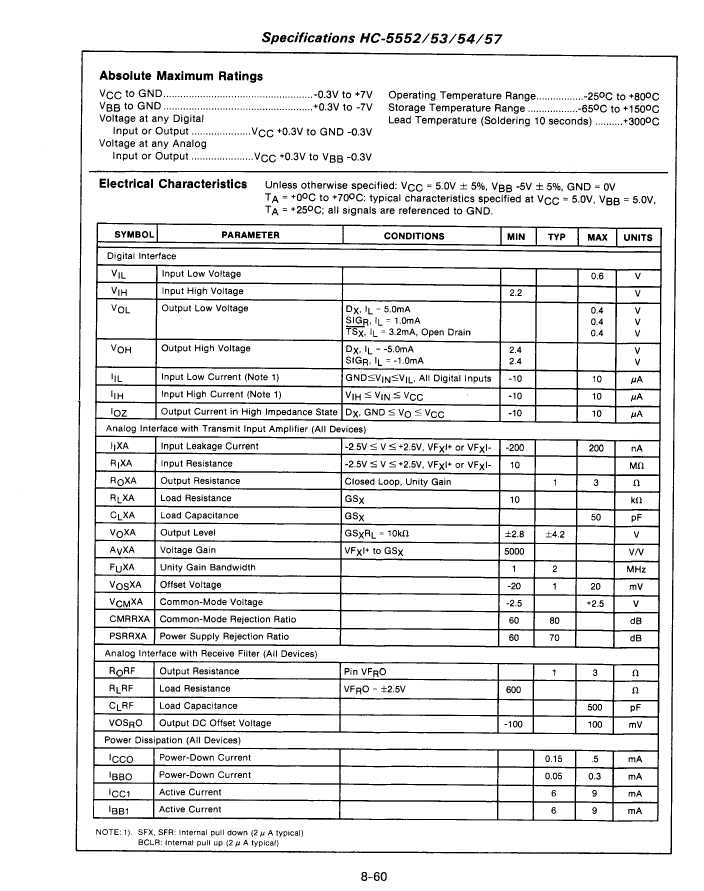

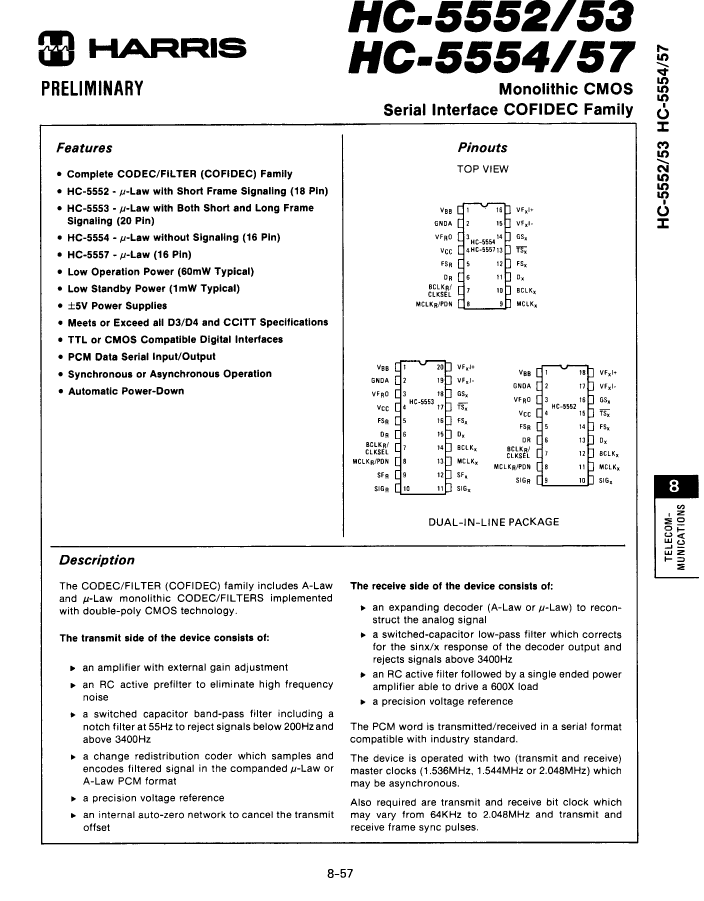

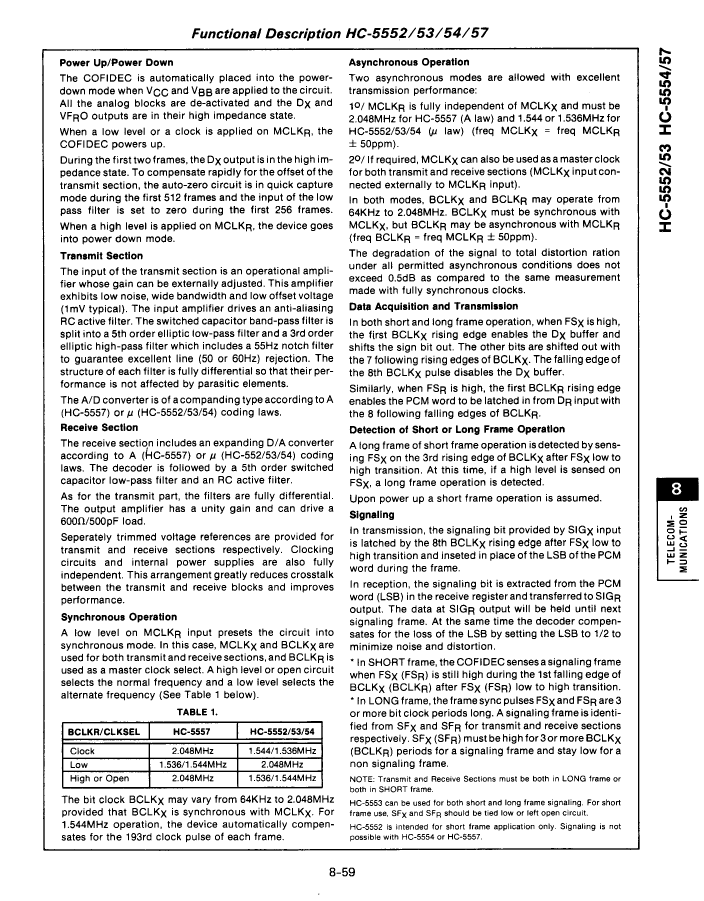

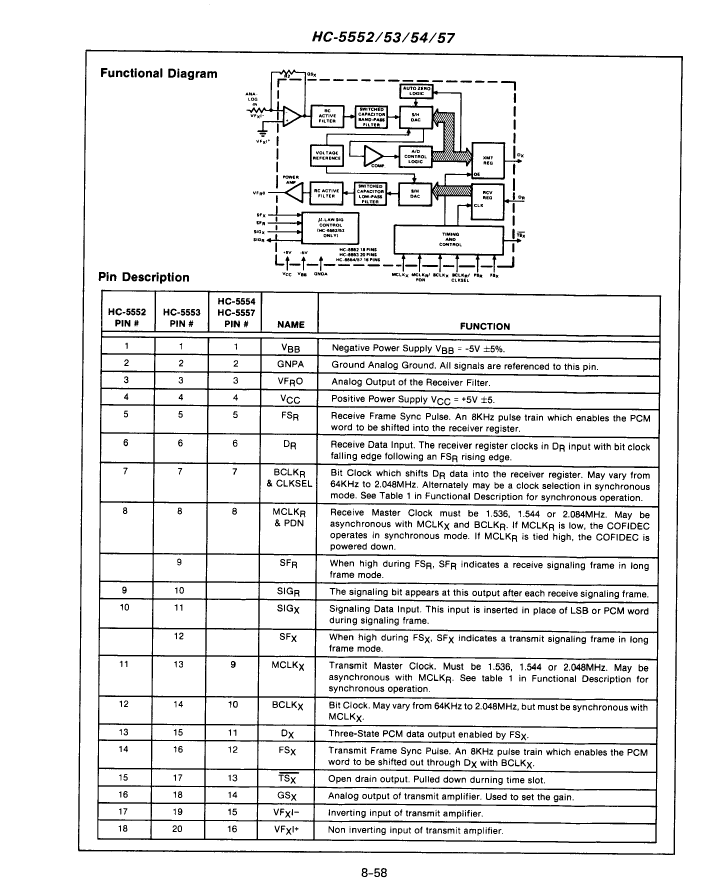

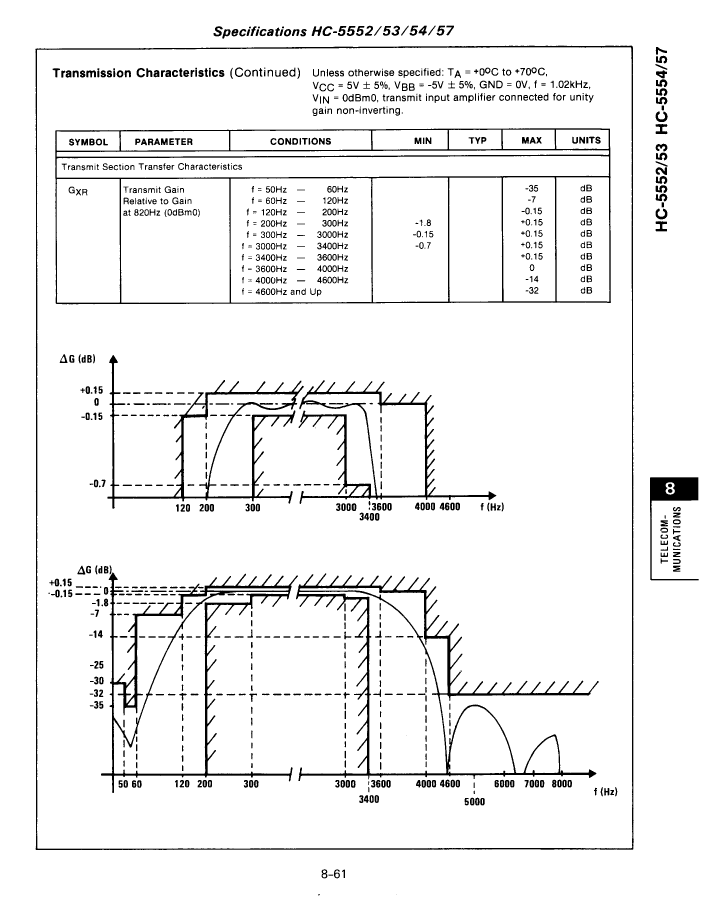

Preview

Download Datasheet

View All

HC3-5553-5 Related Products

	HC3-5553-5	HC3-5557-5	HC3-5554-5	HC3-5552-5
Description	HC3-5553-5	IC,PCM CODEC,SINGLE,CMOS,DIP,16PIN,PLASTIC	HC3-5554-5	HC3-5552-5
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Law of compression and extension	MU-LAW	A-LAW	MU-LAW	MU-LAW
filter	YES	YES	YES	YES
Maximum gain tolerance	0.15 dB	0.15 dB	0.15 dB	0.15 dB
JESD-30 code	R-PDIP-T20	R-PDIP-T16	R-PDIP-T16	R-PDIP-T18
JESD-609 code	e0	e0	e0	e0
linear encoding	NOT AVAILABLE	NOT AVAILABLE	NOT AVAILABLE	NOT AVAILABLE
Negative supply voltage rating	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1
Number of terminals	20	16	16	18
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP16,.3	DIP16,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.018 mA	0.018 mA	0.018 mA	0.018 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
