54ACT158DMQB datasheet, PDF - EEWORLD Datasheet

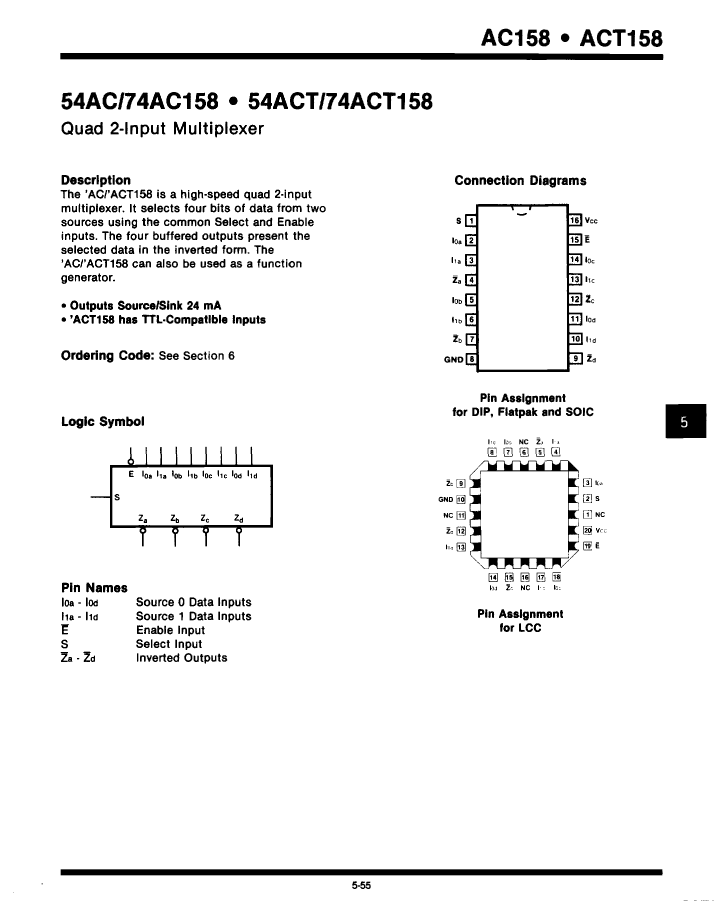

54ACT158DMQB: DescriptionMultiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size89KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

54ACT158DMQB Overview

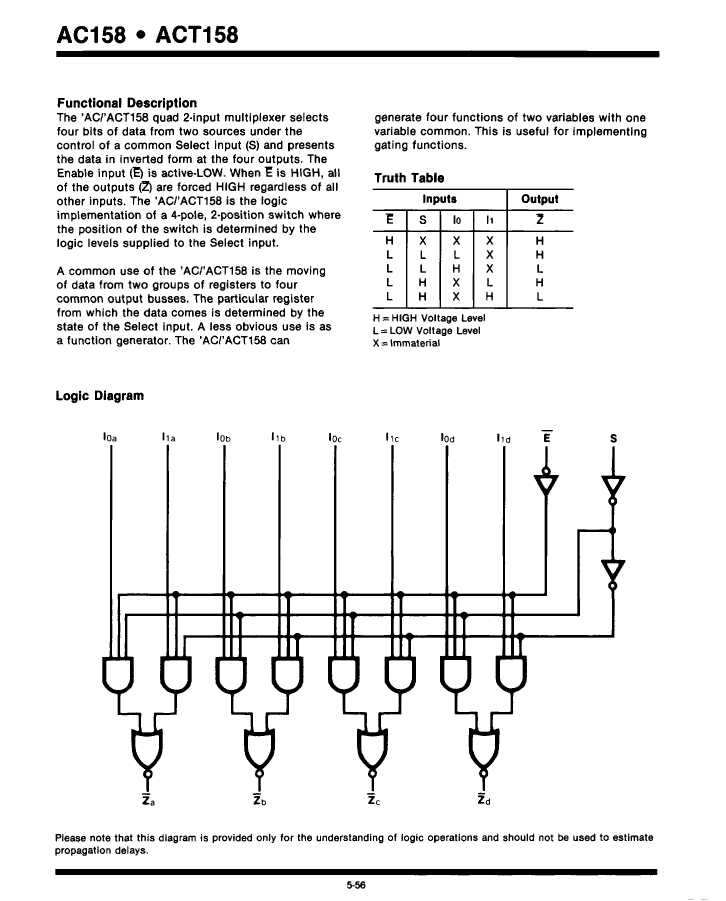

Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.43 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V

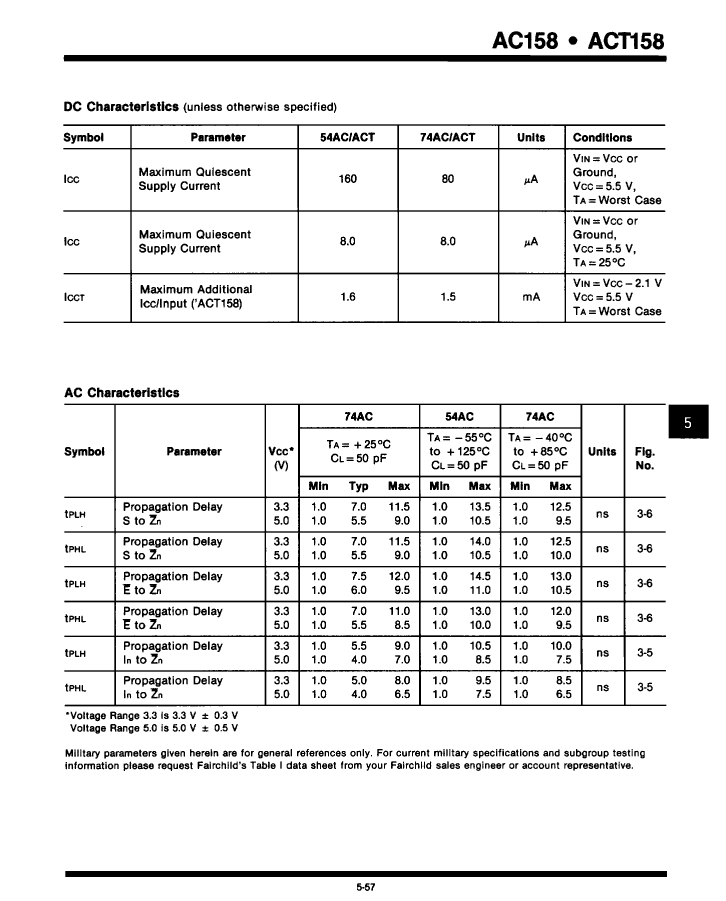

Prop。Delay @ Nom-Sup	9.5 ns

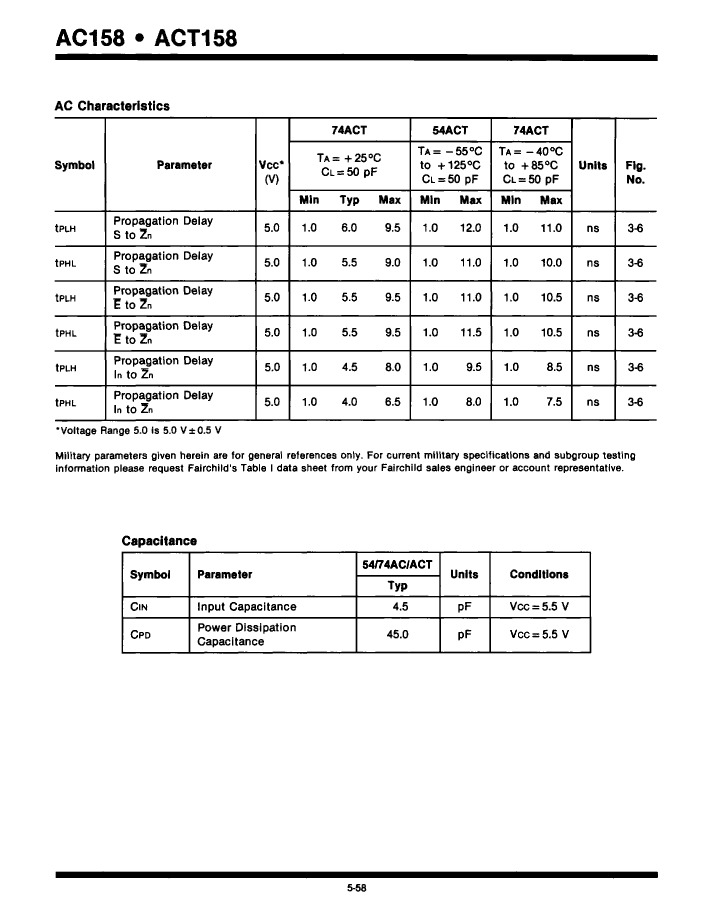

propagation delay (tpd)	11 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
