PCB terminal block - PT 1,5/ 8-3,5-V - 1984824
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 8,
Connection method: Screw connection with wire protector, Mounting: Wave soldering, Conductor/PCB connection
direction: 90 °, Color: green

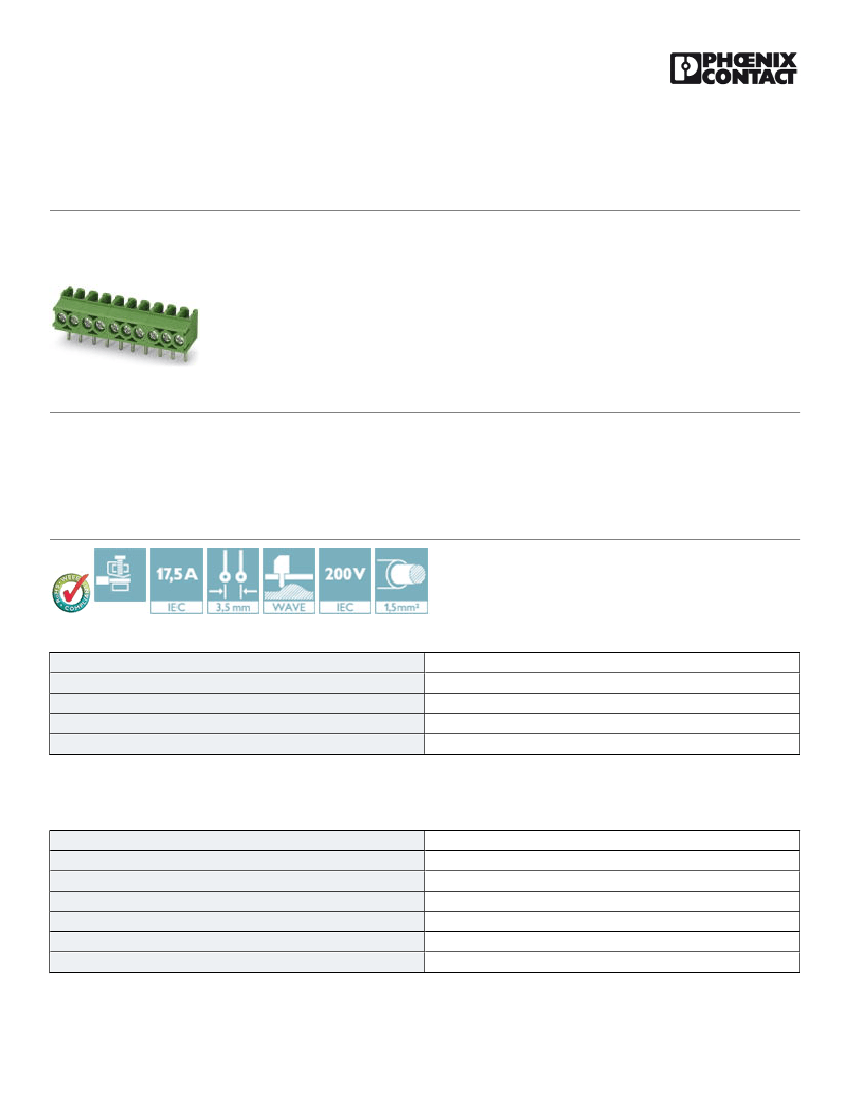

The figure shows a 10-position
version of the product
Product Features
■
■
■
■
Large terminal block capacity thanks to rectangular clamping space
Rugged version with high current carrying capacity
Highly flexible conductor protection for easy, repeated connection
Plus/minus screw
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
3.89 g
85369010
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
9 mm
3.50 mm
24.5 mm
7.6 mm
7.6 mm
4.5 mm
0,9 mm
04/24/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1984824
PCB terminal block - PT 1,5/ 8-3,5-V - 1984824
Technical data
Dimensions
Pin spacing
Hole diameter
3.5 mm
1.2 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
PT 1,5/..-V
I
2.5 kV
2.5 kV
2.5 kV
160 V
200 V
400 V
EN-VDE
17.5 A
1.5 mm²
17.5 A
PA
Sn
V0
5 mm
8
M2
0.22 Nm
0.25 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.14 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
26
16
0.2 mm²
0.34 mm²
0.2 mm²
0.5 mm²
04/24/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1984824
PCB terminal block - PT 1,5/ 8-3,5-V - 1984824
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27141109
27141190
27141190
27261101
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / SEV / CCA / EAC / cULus Recognized
Ex Approvals
04/24/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1984824
PCB terminal block - PT 1,5/ 8-3,5-V - 1984824
Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-16
10 A
300 V
D
26-16
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-16
10 A
300 V
D
26-16
10 A
300 V
EAC
SEV
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
1.5
10 A
160 V
CCA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
1.5
10 A
160 V
EAC
04/24/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1984824
PCB terminal block - PT 1,5/ 8-3,5-V - 1984824
Approvals
cULus Recognized

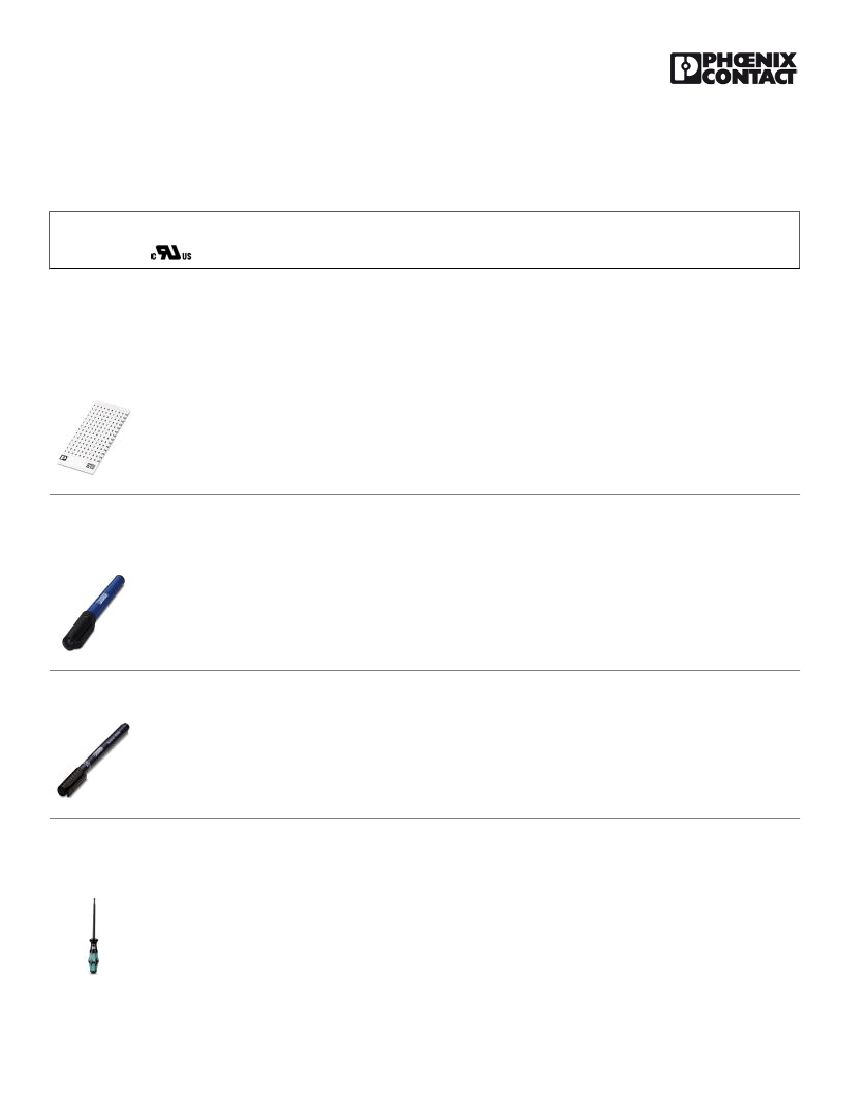

Accessories
Accessories
Labeled terminal marker
Marker card - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type:
Adhesive, for terminal block width: 3.5 mm, Lettering field: 3.5 x 2.8 mm
Marker pen
Marker pen - X-PEN 0,35 - 0811228
Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
04/24/2016 Page 5 / 6
