30700-1082: DescriptionAutomotive Connectors HDAC64 DR MALE 8 CKT ALE 8 CKT GRAY POL 1; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

30700-1082 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30700-1082	-	-	View	Buy Now

30700-1082 Overview

Automotive Connectors HDAC64 DR MALE 8 CKT ALE 8 CKT GRAY POL 1

30700-1082 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	30700
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED SYNDIOTACTIC POLYSTYRENE
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

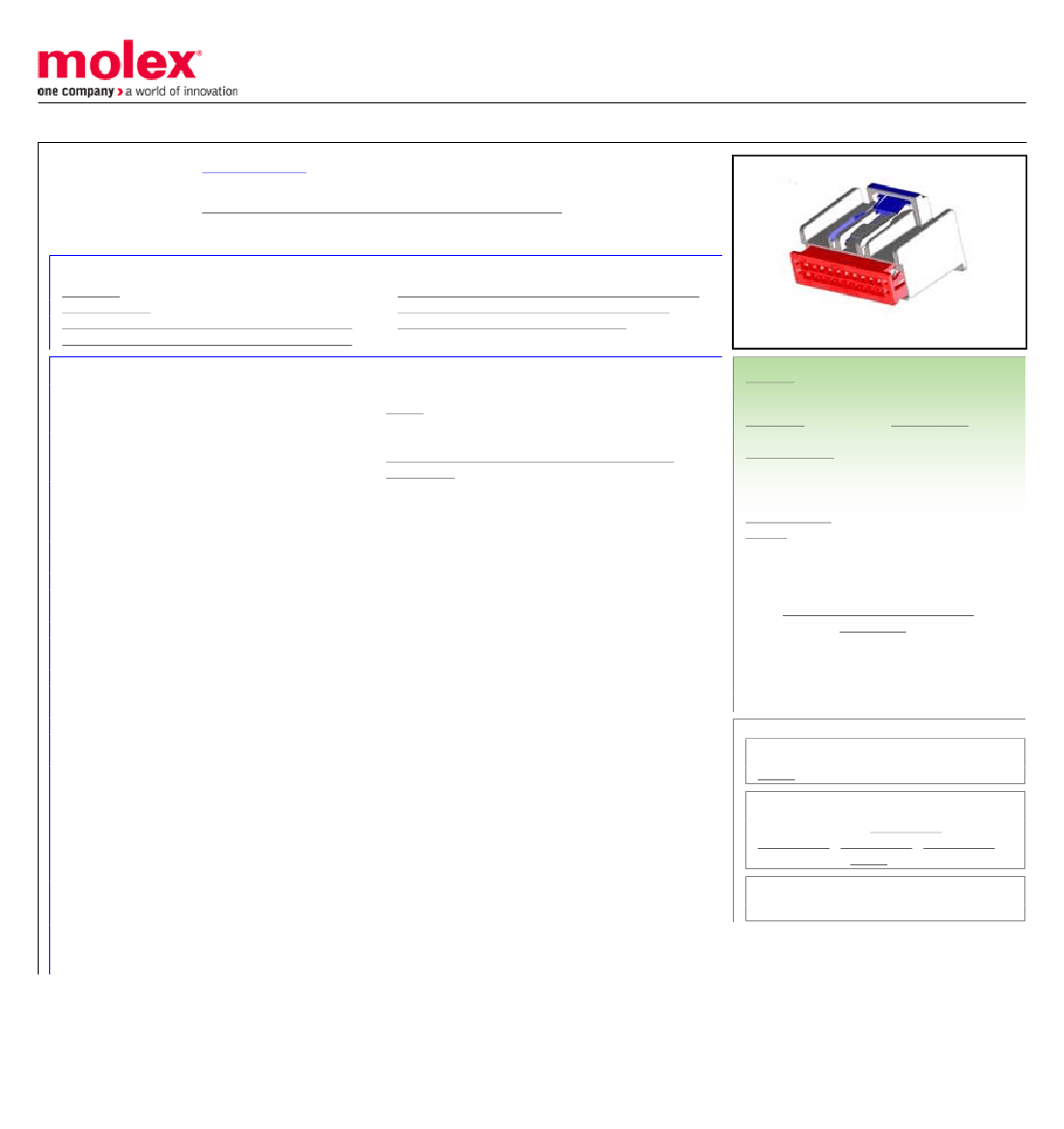

0307001082

Active

H-DAC 64™ Dual-Row High Density Automotive Connectors

2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual

Row, Female Harness Assembly, 8 Circuits, Polarization Option 3, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-30700-0001-001 (PDF)

Product Specification PS-30968-0001-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-30700-000-001 (PDF)

Packaging Specification PK-30907-417 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Housings

30700

Power, Wire-to-Board, Wire-to-Wire

Polarization Option 3

H-DAC 64™ Dual-Row High Density Automotive

Connectors

H-DAC 64

800756075013

Natural

Receptacle

Yes

Modified Polystyrene

2.930/g

Bag

2.54mm

Yes

-40°C to +100°C

7.0A

N/A

Search Parts in this Series

30700 Series

Mates With

H-DAC 64 Header 30700-4082 ,

30700-4086 , 30700-5082 , 30700-5086 ,

Crimp Housing 30968

Use With

Contact Molex for Terminal information.

AS-30700-000-001

PK-30907-417

PS-30700-0001-001, PS-30968-0001-001

SD-30700-120

This document was generated on 11/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
