33541110400002: DescriptionFiber Optic Connector, 4 Contact(s), Multi Mode; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

33541110400002 Overview

Fiber Optic Connector, 4 Contact(s), Multi Mode

33541110400002 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
body width	1.102 inch
body length	1.063 inch
Connector type	FIBER OPTIC CONNECTOR
Contact point gender	MALE
Contact style	OPTICAL FIBER
Coupling type	THREADED
Manufacturer's serial number	3354111
Plug contact pitch	0.24 inch
model	MULTI
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of connectors	ONE
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
reliability	COMMERCIAL
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

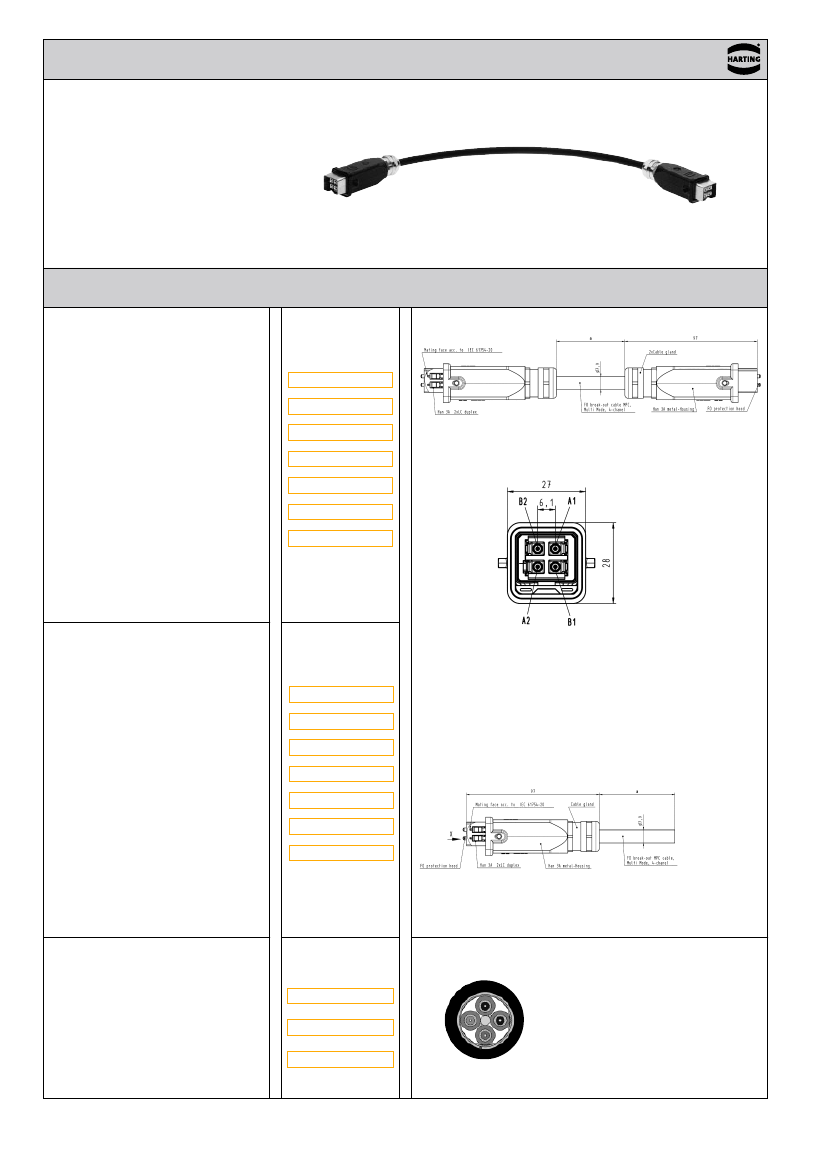

Han

®

3 A

Identification

Part No.

Drawing

double ended

Dimensions in mm

Fibre optic cable, double ended,

multi mode, metal, 50 µm

2 x Han

®

3 A, 2 x LC duplex

Length:

a=

1m

5m

33 54 211 0010 002

33 54 211 0050 002

33 54 211 0100 002

33 54 211 0200 002

33 54 211 0400 002

33 54 211 0500 002

33 54 211 1000 002

a = 10 m

a = 20 m

a = 40 m

a = 50 m

a = 100 m

a = length

Fibre optic cable, single ended,

multi mode, metal, 50 µm

1 x Han

®

3 A, 2 x LC duplex

Length:

a=

1m

5m

33 54 111 0010 002

33 54 111 0050 002

33 54 111 0100 002

33 54 111 0200 002

33 54 111 0400 002

33 54 111 0500 002

33 54 111 1000 002

a = length

single ended

Protection level:

IP 65 / IP 67

a = 10 m

a = 20 m

a = 40 m

a = 50 m

a = 100 m

Fibre optic breakout cable ,

multi mode, 50 µm

Length: 10 m

Length: 20 m

33 54 751 0100 002

33 54 751 0200 002

33 54 751 1000 002

FRNC jacket

4-fibre multi mode

Outer diameter:

Min. bending radius:

Installation:

Operating:

50 µm

7.9 mm

9.8 cm

7.9 cm

02

.

10

Length: 100 m

Further cable lengths are available on request
