1206PC822KAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1206PC822KAT

1206PC822KAT: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 250V 8200pF X7R 1206 10% Tol; CategoryPassive components; File Size79KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

1206PC822KAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1206PC822KAT	-	-	View	Buy Now

1206PC822KAT Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 8200pF X7R 1206 10% Tol

1206PC822KAT Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	AVX
RoHS	Details
Capacitance	8200 pF
Voltage Rating DC	250 VDC
Dielectric	X7R
Tolerance	10 %
Case Code - in	1206
Case Code - mm	3216
Height	1.5 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	Tip & Ring MLCCs
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Capacitance - nF	8.2 nF
Capacitance - uF	0.0082 uF
Length	3.2 mm
Package / Case	1206 (3216 metric)
Factory Pack Quantity	2000
Termination Style	SMD/SMT
Type	Tip and Ring MLCCs
Width	1.6 mm
Unit Weight	0.000571 oz

Preview

Download Datasheet

View All

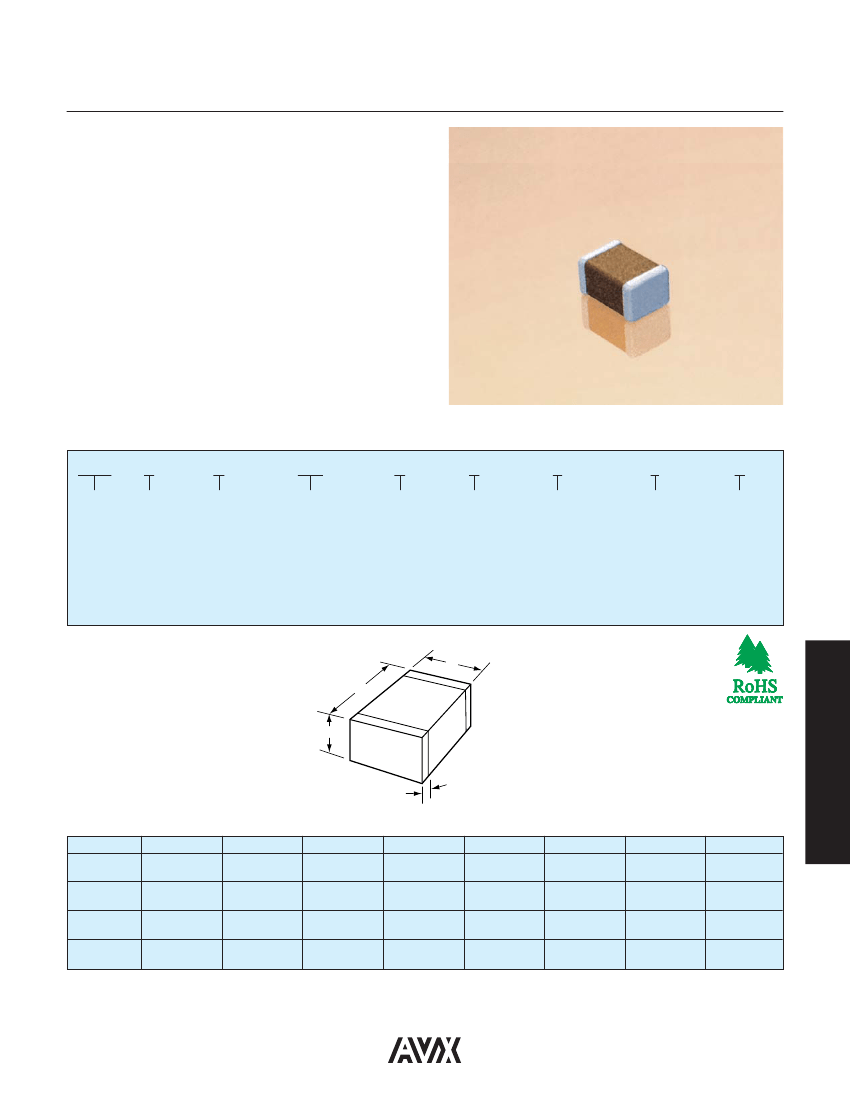

Tip & Ring

Multilayer Ceramic Chip Capacitors

AVX “Tip & Ring” or “ring detector” Multilayer Ceramic Chip

Capacitors are designed as a standard telecom filter

to block -48 Volts DC telephone line voltage and pass

subscriber’s AC signal pulse (16 to 25Hz, 70 to 90Vrms).

The typical ringing signal is seen on figure on page 132. The

ringer capacitors replace large leaded film capacitors and

are ideal for telecom/modem applications. Using AVX “Tip &

Ring” capacitors not only saves valuable real estate on the

board and reduces the weight of overall product, but also

features standard surface mounting capabilities, so critical to

new and compact designs.

The AVX “Tip & Ring” capacitors are offered in standard

EIA sizes and standard values. They offer excellent high

frequency performance, low ESR and improved temperature

performance over film capacitors.

HOW TO ORDER

1812

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

Voltage

250 VDC

Telco

Rating

Temperature

Coefficient

X7R

104

Capacitance Code

(2 significant digits

+ no. of zeros)

Examples:

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 µF = 105

Capacitance

Tolerance

K = ±10%

M = ±20%

Special Code

A = Standard

Termination

Test

Packaging

T = Plated

Level

1 or 2 = 7" Reel

Ni and Sn

A = Standard

3 or 4 = 13" Reel

(RoHS Compliant) 9 = Bulk

Z = FLEXITERM

100% Tin

(RoHS Compliant)

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

DIMENSIONS

Style

(L) Length

(W)Width

(T) Thickness

(t) terminal

millimeters (inches)

1206

1210*

1808*

1812*

1825*

2220*

2225*

0805

2.01 ± 0.20

3.20 ± 0.20

3.2 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.60 ± 0.30

5.60 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.220 ± 0.012) (0.220 ± 0.010)

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.2 ± 0.20

6.34 ± 0.30

5.10 ± 0.40

6.35 ± 0.25

(0.049 ± 0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.200 ± 0.016) (0.250 ± 0.010)

1.30 max.

(0.051 max.)

1.50 max.

(0.059 max.)

1.78 max.

(0.070 max.)

1.78 max.

(0.070 max.)

2.00 max.

(0.080 max.)

2.00max.

(0.080 max.)

2.00 max.

(0.080 max.)

2.00 max.

(0.080 max.)

0.50 ± 0.25

0.63 ± 0.38

(0.020 ± 0.010) (0.020 ± 0.010) (0.020 ± 0.010) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015)

*Reflow Soldering Only
