SURFACE MOUNT LED
ULTRAVIOLET, 0603 PACKAGE
SM0603UV-405
♦
♦
♦
♦
♦
♦
Industry Standard 0603 Package
RoHS Compliant
UV Emitting LED
Water Clear Lens
Wide Viewing Angle
Ideal for Curing, Detection, and Medical Applications
Bivar’s Surface Mount 0603 UV package LED is offered in a standard 0603 foot print and is ideal for
any UV applications. The miniature package provides long life and reliability making it ideal for
industrial curing, hazard detection, medical applications such as instrument sterilization, fluorescent
counterfeit watermark detection, and forensic applications. The water clear LED lens provides for
maximum radiant power output and wide viewing angles. Bivar SM0603 UV LED is packaged in
standard tape and reels for pick and place assemblies.
Peak
Wavelength
λp(nm)
405 ~ 410
Part Number
Material
Emitted Color
Lens
Appearance
Water Clear
Radiant Power
Viewing Angle
(mW)
5 ~ 10
130°
SM0603UV-405
InGaN/SiC
ULTRA VIOLET

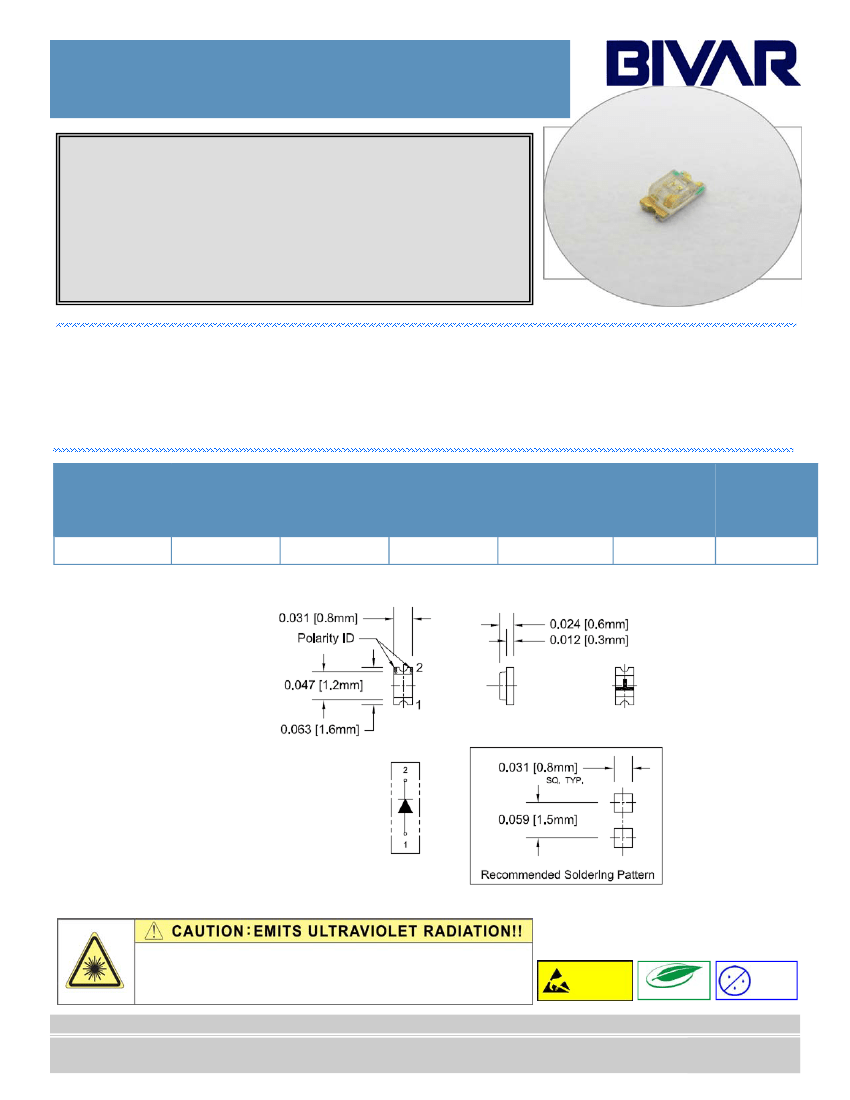

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
•
This UV (ultraviolet) LED during operation radiates intense UV light.
•
Do not look directly into the UV light during operation of device. This can be harmful to human body especially to the
eyes and skin, even for brief period due to the intense UV light.
•
If viewing the UV light is necessary, please use UV filtered glasses to avoid damage by the UV light.
•
If the UV LED in your product might be viewed directly, please affix a caution label to your product to that effect.
Avoid direct eye and skin exposure to UV light. Keep out of reach of children.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Level 4
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 06/14
Page 1 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
ULTRAVIOLET, 0603 PACKAGE
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
100 mW
25 mA
100 mA
5V
-30 ~ +80°C
-40 ~ +85°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
10
MIN
/
TYP
/
MAX
/
Radiant Power
(mW)
MIN
5
TYP
/
MAX
10
Viewing
Angle
2
Ө
½
(deg)
TYP
130
Part Number
MIN TYP MAX MIN TYP MAX
SM0603UV-405
/
3.4
4.2
/
20
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 06/14
Page 2 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
ULTRAVIOLET, 0603 PACKAGE

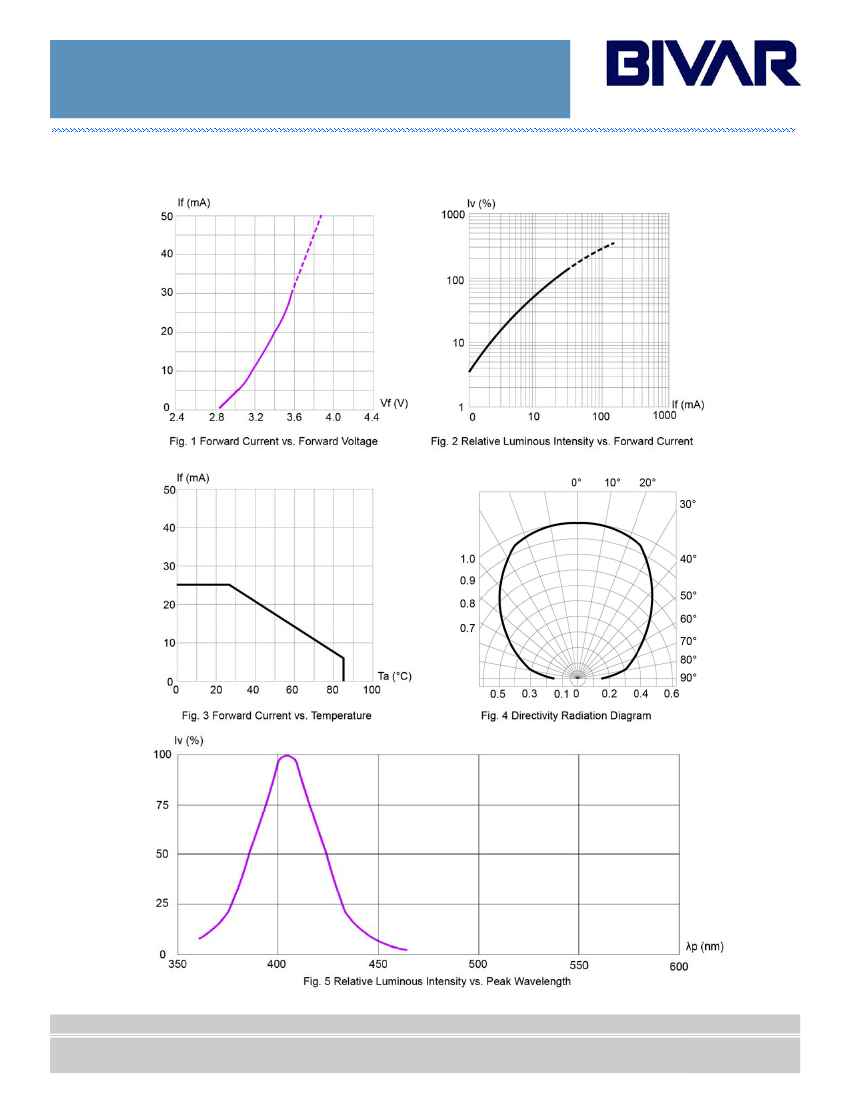

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 06/14
Page 3 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
ULTRAVIOLET, 0603 PACKAGE

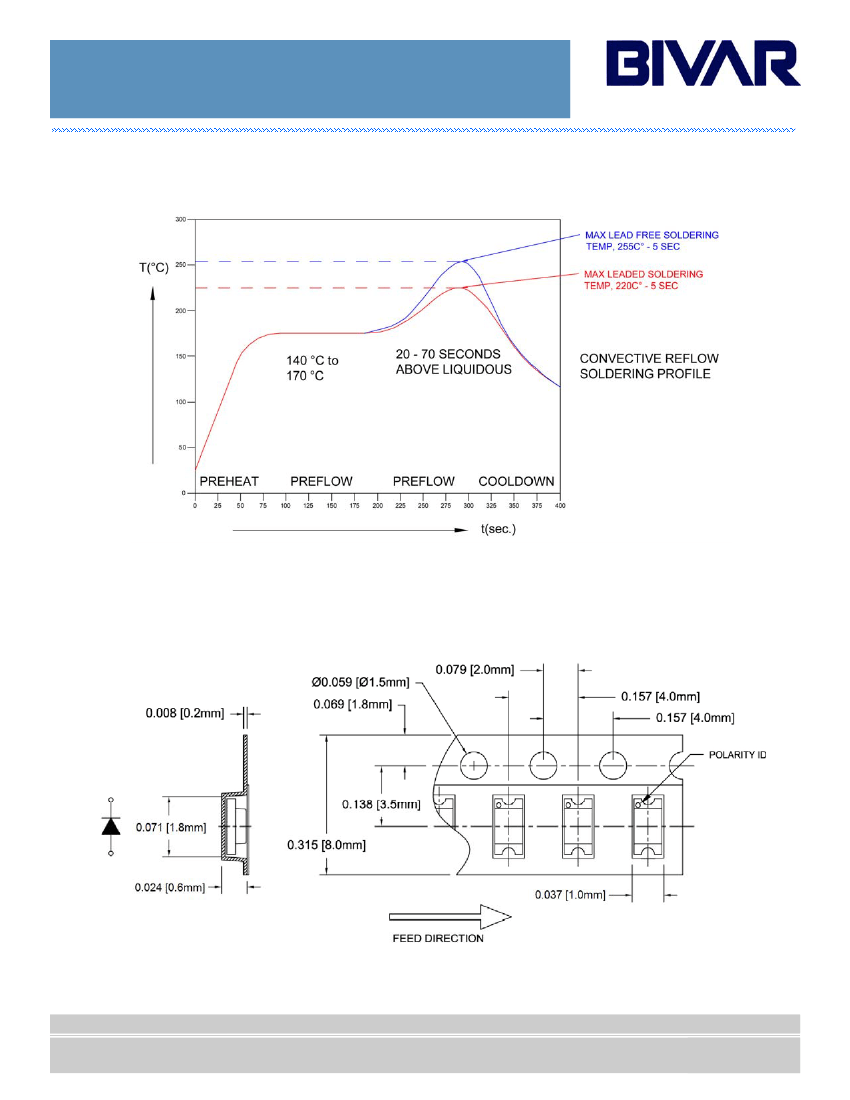

Recommended Soldering Conditions
Tape and Reel Dimensions
Note: 4000 pcs/Reel
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision A 06/14
Page 4 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
ULTRAVIOLET, 0603 PACKAGE

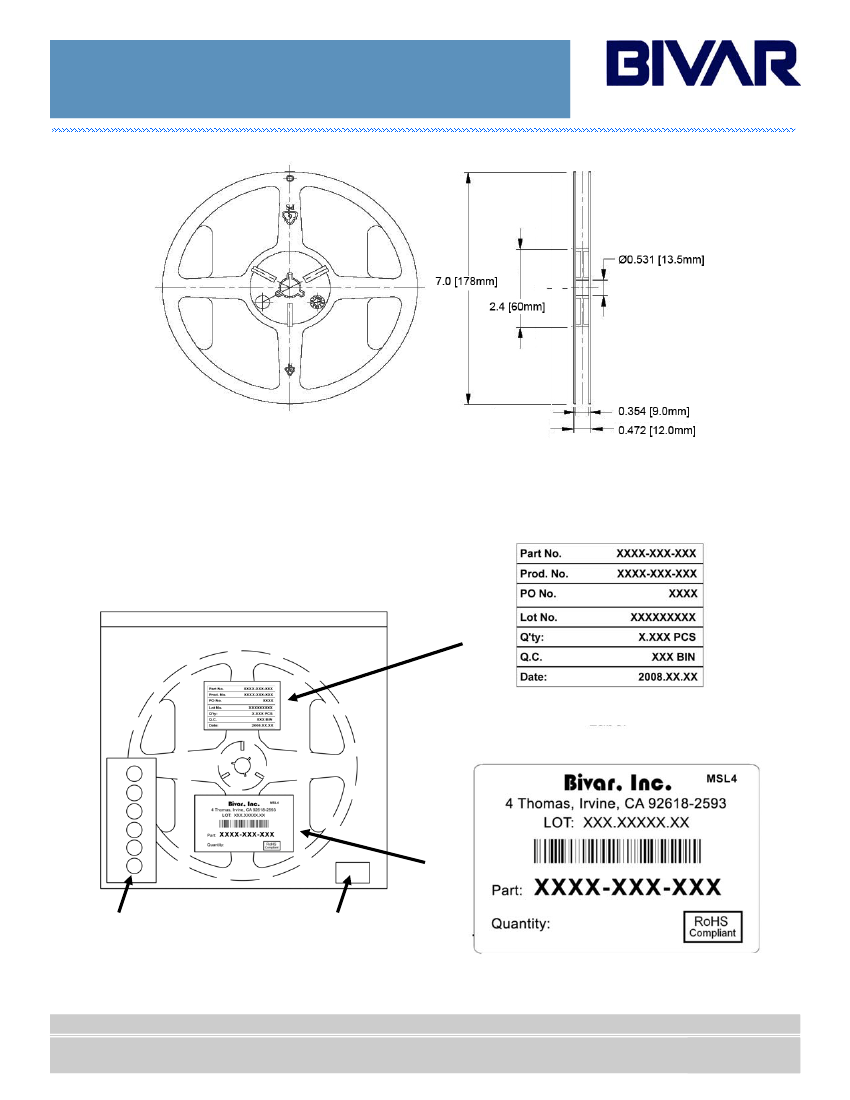

Packaging and Labeling Plan
Note: 1 Reel / Bag
Vacuum and Heat Sealed
ESD/MBB Bag
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance unless otherwise noted: X.XXX ± 0.010"
X.X ± 0.1”
Internal Quality Control
X.XXX
Humidity Indicator
Card
Desiccants
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 06/14
Page 4 of 4
Page 5 of 5
