ROHS COMPLIANT

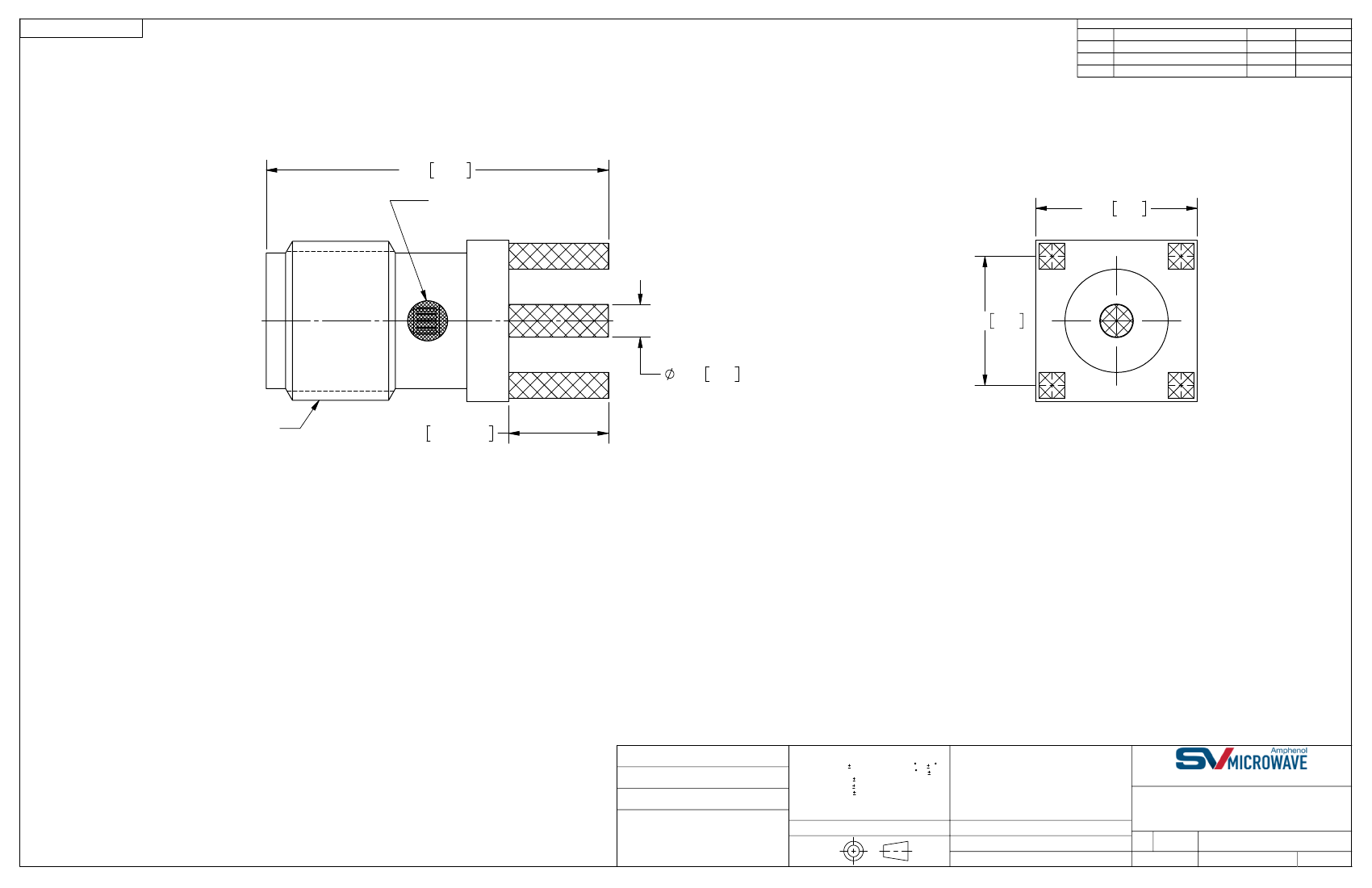

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 43104
02/17
MAL
.530 13.46
EPOXY
CAPTIVATED
.250 6.35
2x .200 5.08
.051 1.28
1/4-36 UNS-2A
.155±.010 3.92±0.25
MATERIAL:
BODY:
CONTACT:
INSULATOR:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
NOTES:
1. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
2. TO BE TIN DIPPED USING Sn96 SOLDER
3. ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING
MATERIAL:
FINISH:
FINISH:
CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 0.76; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
DWV:
50 OHMS
DC TO 18.0 GHz
1000 VRMS
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
VB 02/16/17
MAL 02/16/17
MAL 02/16/17
SMA JACK PCB MOUNT
SIZE CAGE CODE DWG. NO.
B
95077
2985-6004-TD
SHEET 1 OF 1
SCALE: 4:1
