254977 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 254977

254977: DescriptionInterface - CODECs Stereo Codec w-H/P; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

254977 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254977	-	-	View	Buy Now

254977 Overview

Interface - CODECs Stereo Codec w-H/P

254977 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612, IEC 60603-2
body width	0.519 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7784 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
Base Number Matches	1

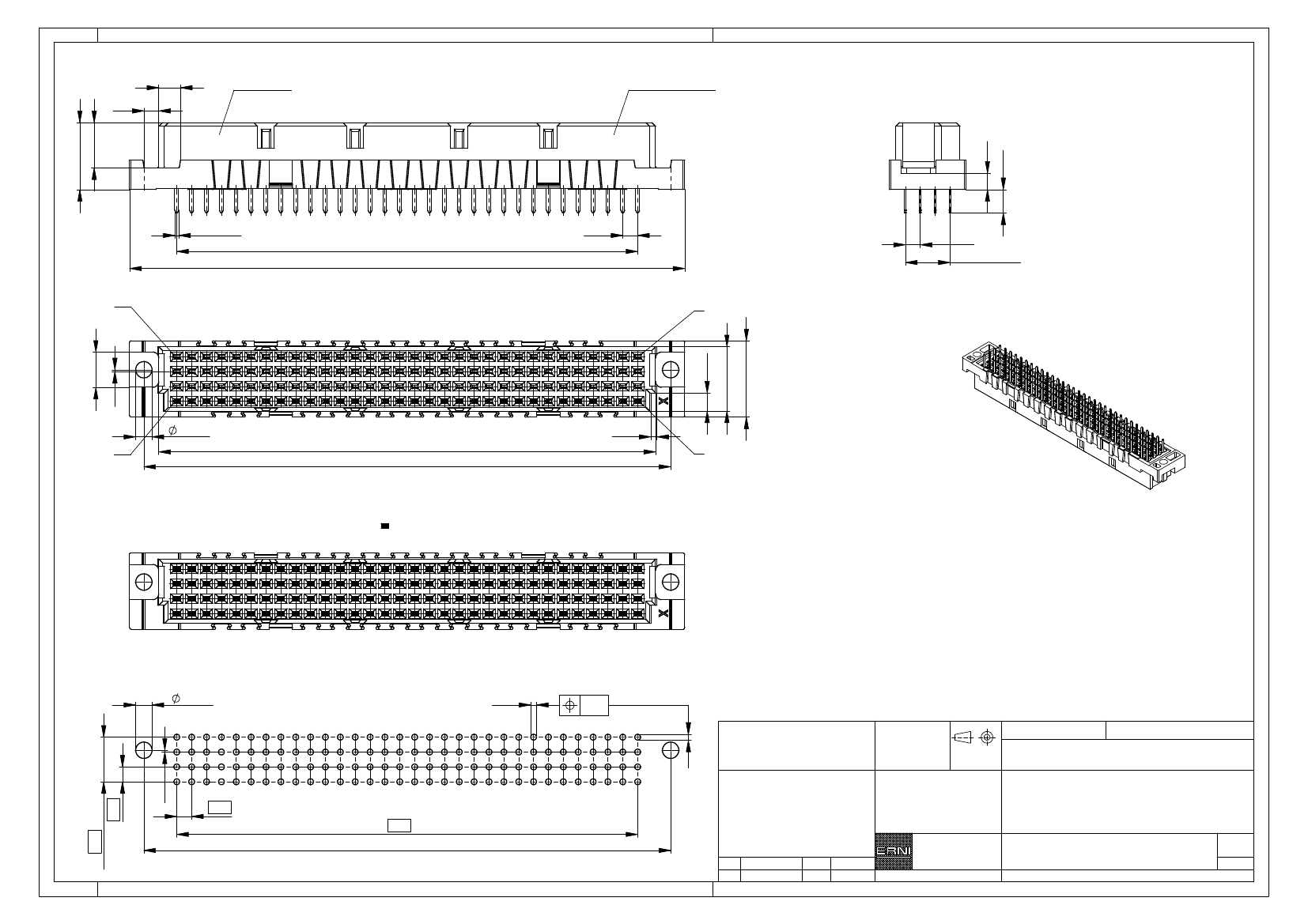

Preview

Download Datasheet

View All

Datumscode

3,7

2,5

11,6 max.

7,7

XXXXXXX

ERNI

RC 2

Anforderungsstufe

date code

class

2,9

a b c d

2,54

+0,2

+0,1

0,65 x 0,3

31 x 2,54 = 78,74

95 max.

2,54

3 x 2,54 = 7,62

a32

0,3

2,8

d32

+0,1

-0,2

±0,1

13,2

-0,3

11,1

-0,2

±0,2

M 1:1

Bestückungsplan /

contact layout

bestückt /

assembled

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Tauchlötanschluss 0,65 x 0,3 mm /

solder terminal 0,65 x 0,3 mm

Isolierwerkstoff /

housing material : PBT GF 30

Bauart 7 /

type 7

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Fehlende Masse und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing Information and dimensions per IEC 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

±0,1

0,05

alle Löcher

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

3 x 2,54 = 7,62

2,54

31 x 2,54 = 78,74

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Designation

0,3

Subject to modification without

prior notice.

Drawing will not be updated.

2,54

Federleiste CD 128 Löt

Fem. connector CD 128 solder

www.ERNI.com

Index

Date

254977

Class

STVCD
