1892302-1: Description(1892302-1) MBXL R/A HDR DB 11P+12S; CategoryThe connector The connector; File Size409KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1892302-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1892302-1	-	-	View	Buy Now

1892302-1 Overview

(1892302-1) MBXL R/A HDR DB 11P+12S

1892302-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Objectid	1804268569
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	MBXL R/A HDR DB 11P+12S
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
YTEOL	9.1
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S12P11
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	42A
Match contact row spacing	0.003 inch
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	42 A
Rated voltage	60 V
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

8

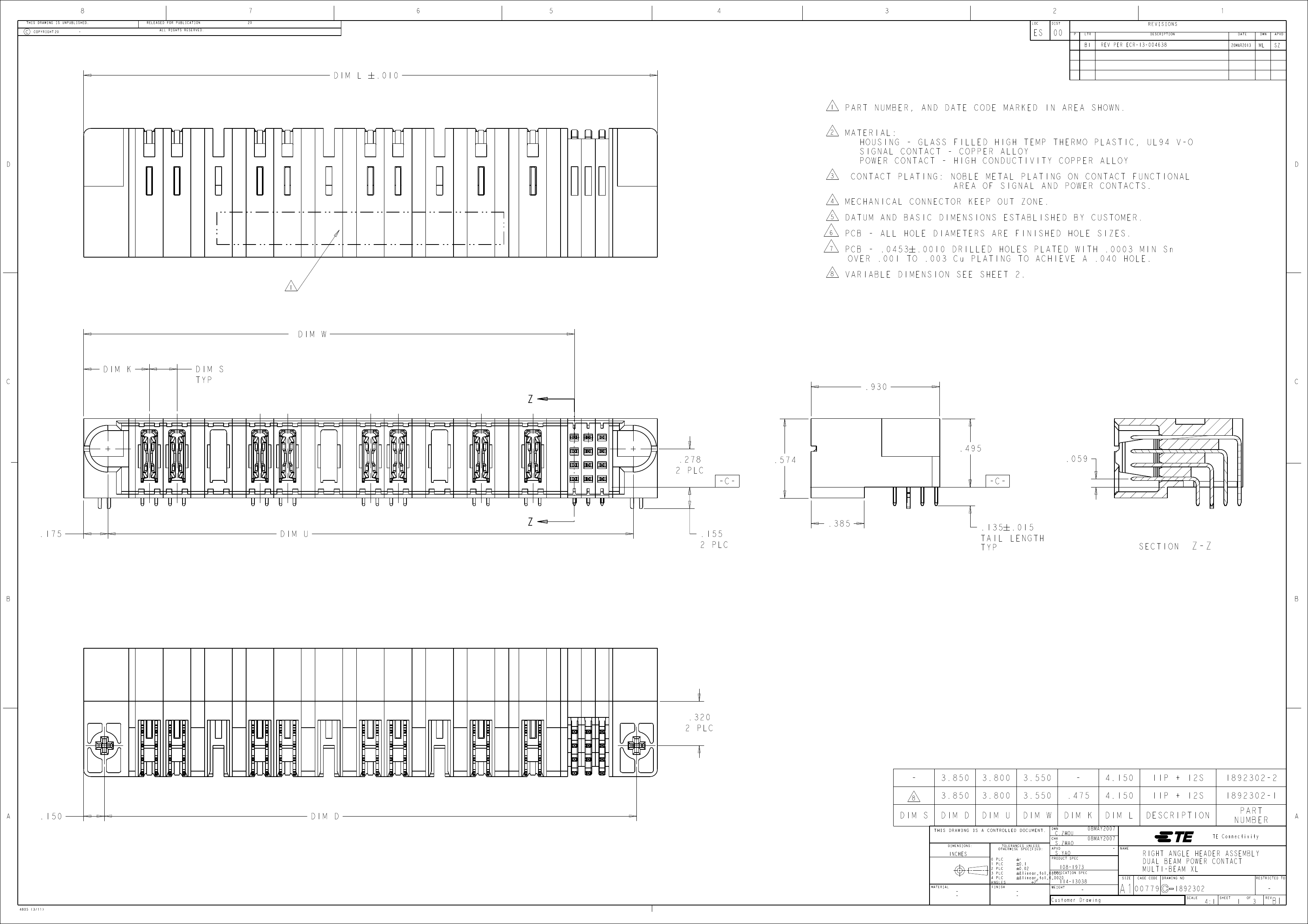

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

ES

00

B1

REV PER ECR-13-004638

20MAR2013

ML

SZ

DIM L

# .010

1

2

PART NUMBER, AND DATE CODE MARKED IN AREA SHOWN.

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING: NOBLE METAL PLATING ON CONTACT FUNCTIONAL

AREA OF SIGNAL AND POWER CONTACTS.

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

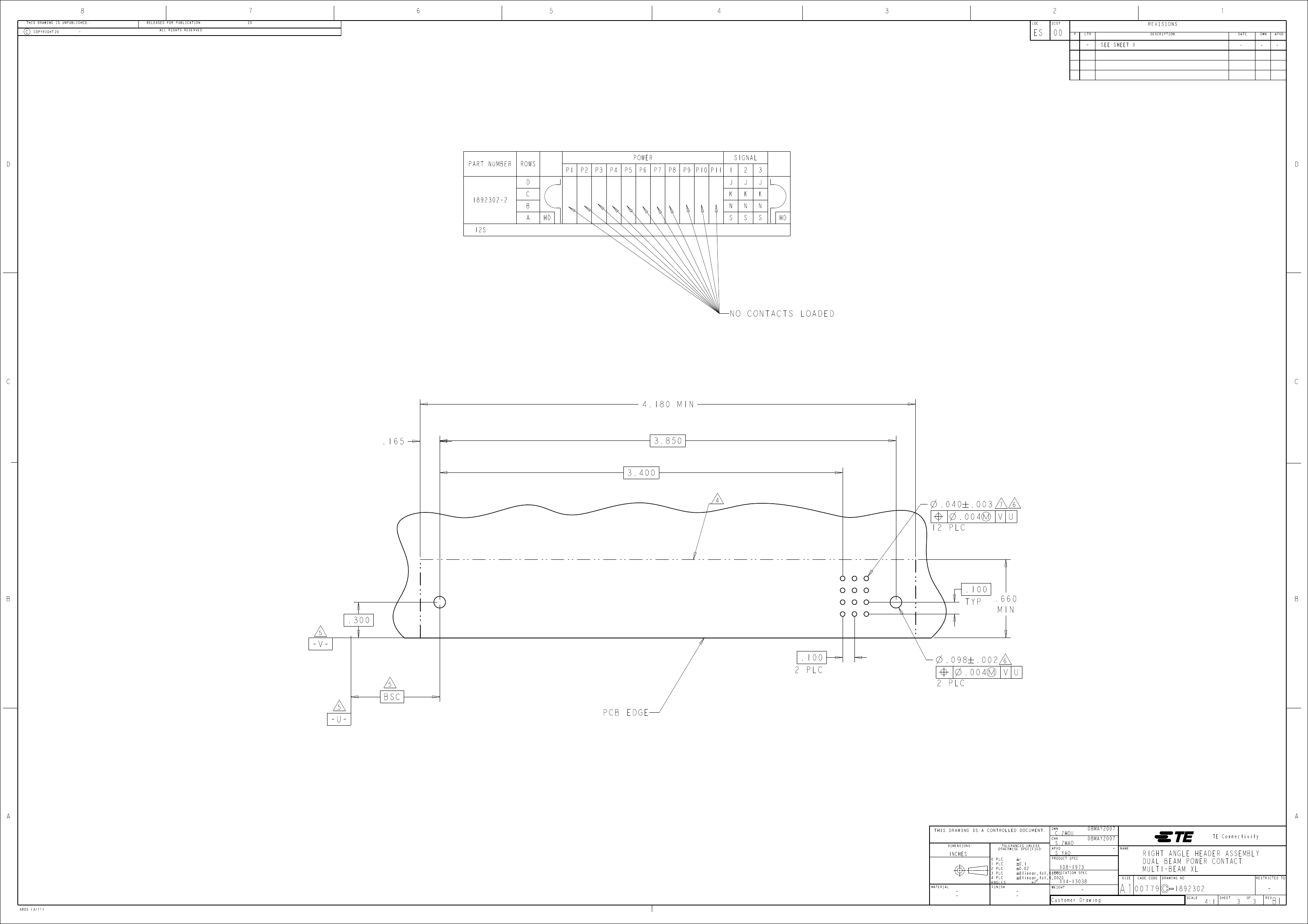

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES.

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 HOLE.

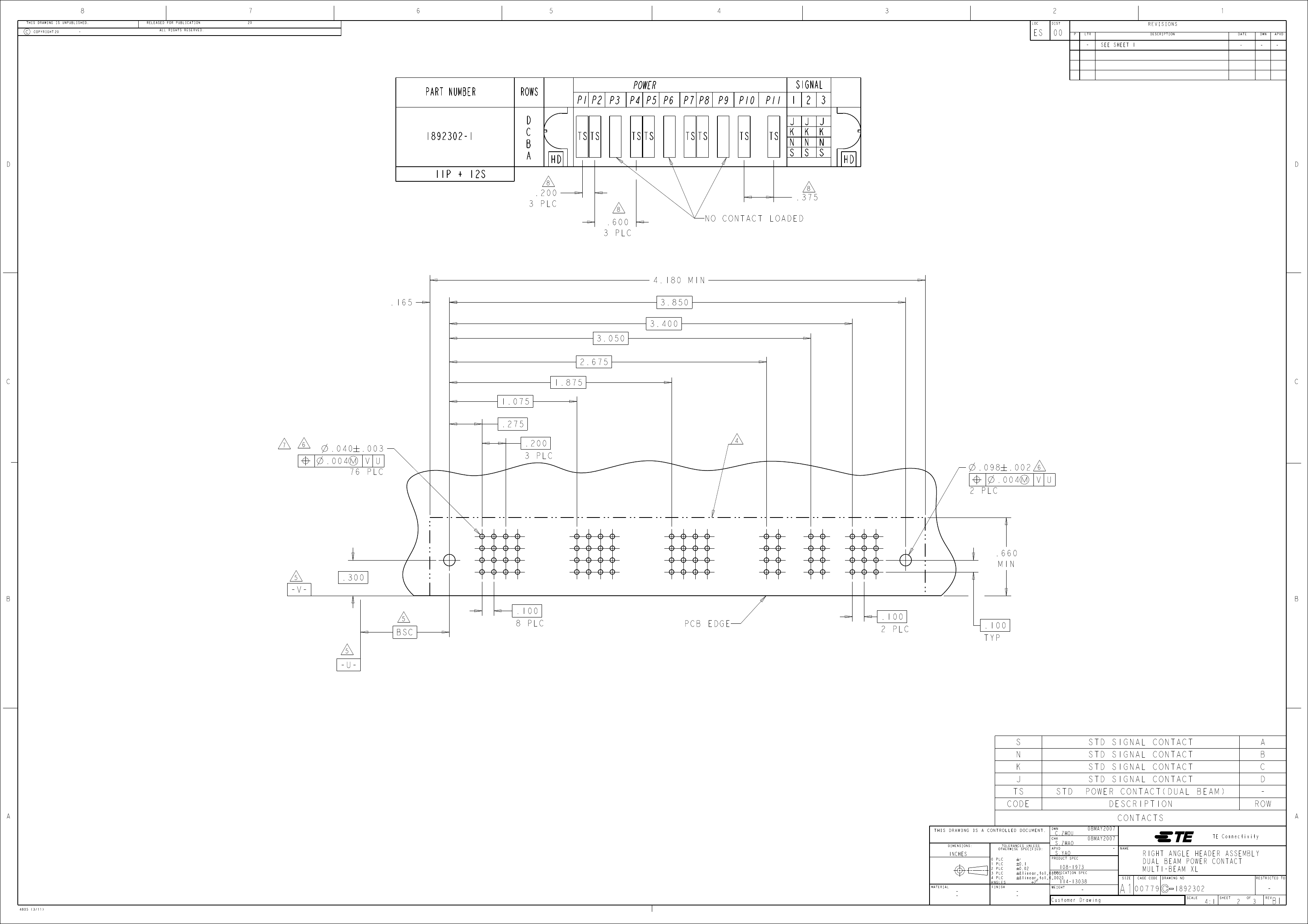

VARIABLE DIMENSION SEE SHEET 2.

D

3

4

5

6

7

8

1

D

DIM W

C

DIM K

DIM S

TYP

.930

C

.278

2 PLC

.574

-C-

.495

-C-

.059

.175

DIM U

.155

2 PLC

.385

.135 .015

TAIL LENGTH

TYP

SECTION

Z-Z

B

.320

2 PLC

-

8

3.850

DIM D

3.800

DIM U

3.550

DIM W

DWN

CHK

-

.475

DIM K

C.ZHOU

S.ZHAO

S.YAO

4.150

DIM L

11P + 12S

DESCRIPTION

1892302-2

1892302-1

PART

NUMBER

TE Connectivity

A

.150

DIM D

DIM S

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

08MAY2007

-

NAME

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

-

0.1

108-1973

0.02

APPLICATION SPEC

&linear_tol_0_005

&linear_tol_0_0020

114-13038

2 $

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

RIGHT ANGLE HEADER ASSEMBLY

DUAL BEAM POWER CONTACT

MULTI-BEAM XL

DRAWING NO

RESTRICTED TO

1892302

SCALE

4805 (3/11)

4:1

SHEET

1

OF

3

REV

-

B1
