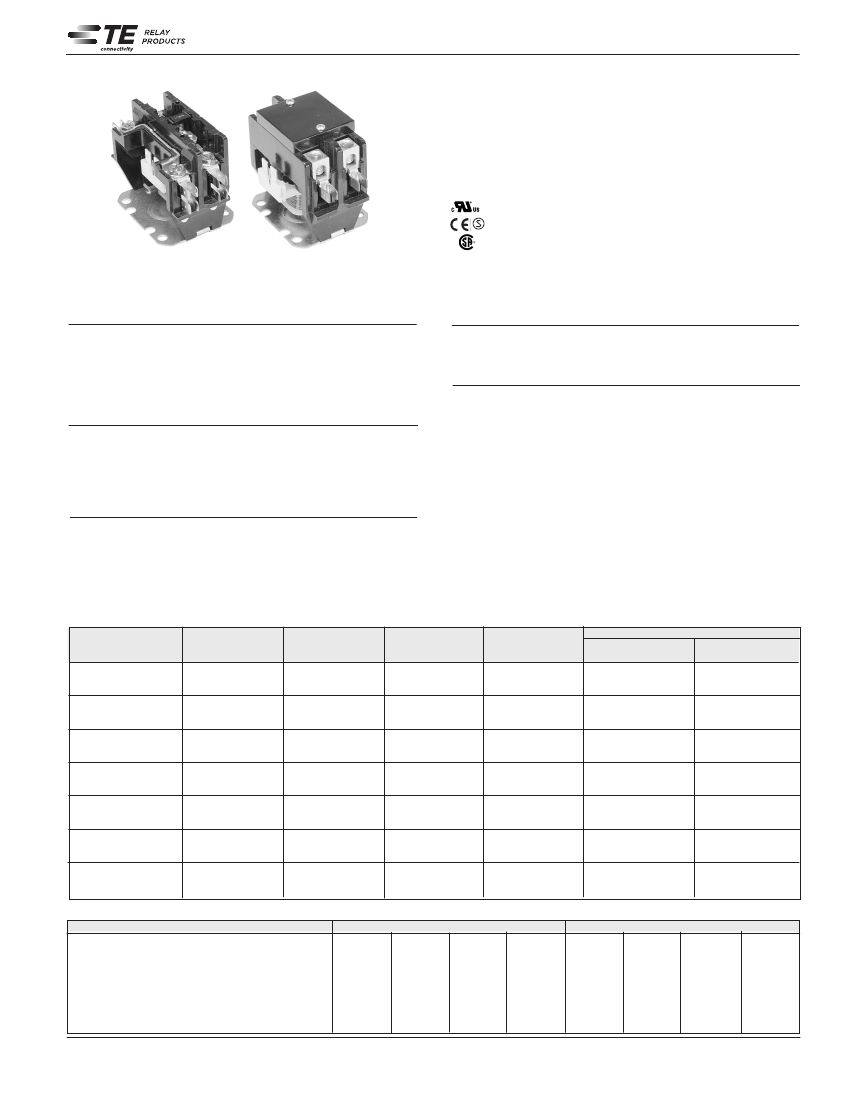

Model 96 - 3100
series
Definite Purpose Contactor
1- or 2-pole, 20-40 FLA
AC Coil
File E75492
File EN60947-4-1:2010; EN60947-1:2007
File LR49598
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Robust 1- and 2-pole contactors.
• Shunt available on 1-pole models.
• Convenient mounting plate.
Environmental Data
Temperature Range:
Storage and Operating: -40°C – +65°C.
Flammability:
UL 94-HB housing.
Mechanical Data
Contact Data @ 25°C
Arrangements:
1 Form X (SPST-NO-DM) with or without shunt and
2 Form X (DPST-NO-DM).
Maximum Ratings:
See Contact Ratings Table.
Material:
Silver Cadmium Oxide.
Contact Termination:
20, 25, 30 FLA Models
Type:
#10-32 Screw with quad 0.250” (6.35 mm) quick connects.
Wire Size:
16-8 AWG (Stranding must be split for 8 AWG wire.)
Tightening Torque:
25 in.-lbs.
NOTE:
Contactors with terminals of two-piece design are shipped
with terminal screws left “up” to facilitate customer wiring. The
customer must tighten the screws to the specified torque to
achieve a good electrical connection.
40 FLA Models
Type:
Box Lug with dual 0.250” (6.35 mm) quick connects.
Wire Size:
14-4 Cu/Al AWG
Tightening Torque:
40 in.-lbs.
Coil Termination:
Dual 0.250” (6.35 mm) quick connects.
Arc Cover:
Optional on 20-30 FLA models, standard on 40 FLA models.
Weight:
One Pole Types: 8 oz. (227 g) approximately.
Two Pole Types: 9.6 oz. (273 g) approximately
Coil Data @ 25°C
Voltage:
24 - 277 VAC, 50/60 Hz. See Coil Data Table below.
(480 & 575VAC coils available upon request.)
Insulation Class:
UL Class B (130°C).
Duty Cycle:
Continuous.
Contact Ratings
Full
Load
Amps
20
Number
of
Poles
2
Line
Voltage
240/277
480
600
240/277
480
600
240/277
480
600
240/277
480
600
240/277
480
600
240/277
480
600
240/277
480
600
Locked
Rotor
Amps
120
100
80
150
50
40
150
125
100
150
75
50
150
125
100
240
200
160
240
200
160
Resistive
Amps
Rating
30
30
30
30
30
30
35
35
35
40
40
40
40
40
40
50
50
50
50
50
50
Maximum Horsepower
Voltage
Single
Phase
120
2
240
3
120
240
120
240
120
240
120
240
120
240
120
240
1
2
2
3
1
2
2
3
2
3
2
3
25
1
25
2
30
1
30
2
40
1
40
2
Coil Data
Nominal Coil Voltage
Maximum Pickup Volts
Drop-Out Volts Range
Nominal Inrush VA @ 50 Hz
Nominal Inrush VA @ 60 Hz
Nominal Sealed VA @ 50 Hz
Nominal Sealed VA @ 60 Hz
Nominal DC Resistance - Ohms ± 10%
02-2013, Rev. 0213
www.te.com
© 2013 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
24
18
6 - 15
22.5
20
7
5.25
16.5
1-Pole Models
120
208/240
88
177
20 - 70
40 - 140
22.5
22.5
20
20
7
7
5.25
5.25
440
1850
277
221
50 - 165
22.5
20
7
5.25
2250
24
18
6 - 15
37
35
8
7
11
2-Pole Models
120
208/240
88
177
20 - 70
40 - 140
37
37
35
35
8
8
7
7
250
1000
277
221
50 - 165
37
35
8
7
1600
EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Ordering Information
Typical Part No.
>
3100
-
20
Q
6
999
1. Series:
3100 = 1- or 2-pole, 20-40 FLA contactor
2.Packaging:
Y = Individual Pack
- = Bulk Pack
A-ZZZ = Customer specific information (assigned by factory)
3.Pole Configuration:
10 = 1 Form X (SPST-NO-DM)
15 = 1 Form X (SPST-NO-DM) with Shunt
20 = 2 Form X (DPST-NO-DM)
4.Coil Voltage (50/60 Hz.):
T = 120VAC
U = 208/240VAC
Q = 24VAC
P = 100VAC
S = 200VAC
V = 277VAC
5.Contact Ratings (Inductive):
1 = 25 FLA on 1-pole models
3 = 20 FLA on 2-pole models
5 = 25 FLA on 2-pole models
2 = 30 FLA on 1-pole models
6 = 30 FLA on 2-pole models
14 = 35 FLA on 1-pole models
19 - 40 FLA on 1-pole models
18 = 40 FLA on 2-pole models
6.Customer ID Suffix:
999 = Standard Model
000-998 = Factory assigned customer ID
7.Option Code:
Leave Blank = No customer-specific options
A - ZZ = Factory assigned customer-specific options.
Standard part numbers listed below are more likely to be available from stock.
3100-15Q2999
3100-15T2999
3100-15U2999
3100-20Q6999
3100-20T6999
3100-20U6999
3100-20Q18999CL
3100-20T18999CL
3100-20U18999CL

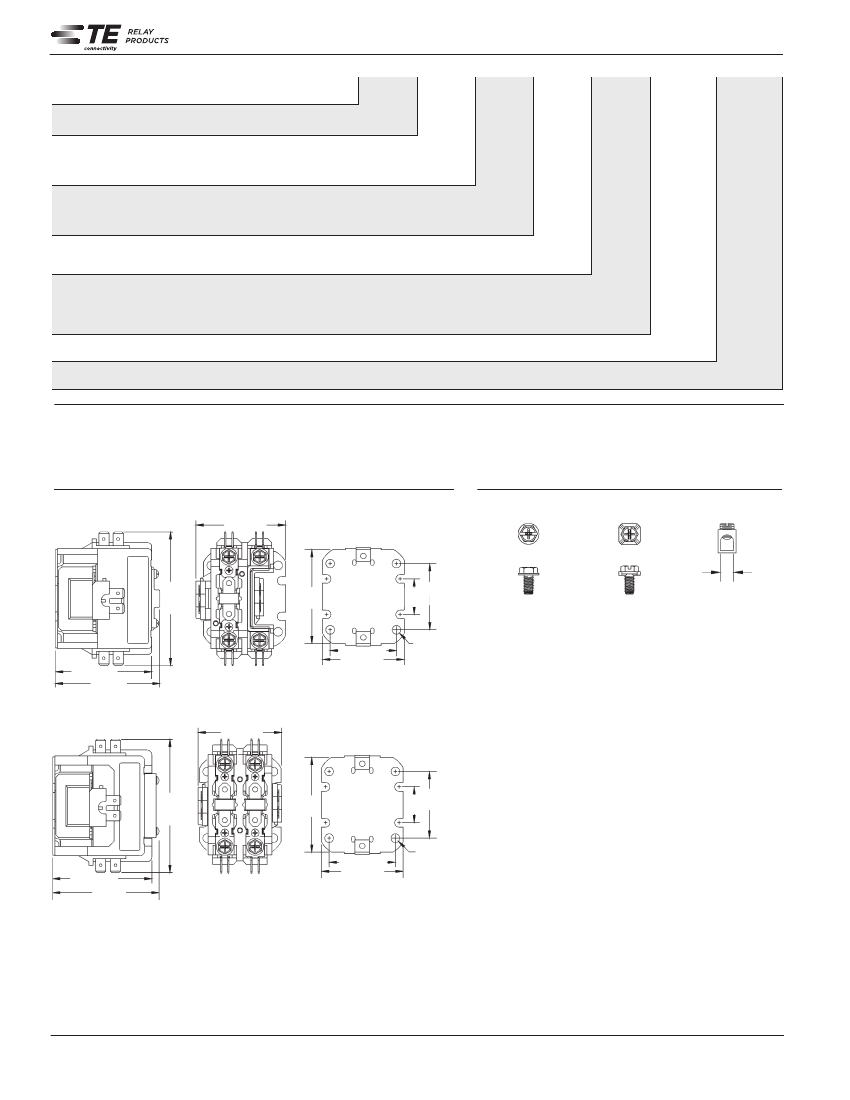

Outline Dimensions
1-Pole
2.10 Max.
(53.3)
Termination Options
.253
(6.43)
3.30
(83.8)
2.313
(57.75)
1.625
.875 (41.28)
(22.2)
2.445
(62.1)
1.625 (41.3)
2.00 (50.8)
2.541
(64.5)
.215 TYP
(5.46)
Standard
on 20, 25, 30, 35
FLA
#10-32 Combination
Phillips, Slotted &
5/16 Hex Head
#12 Washer
Special
on 20, 25, 30, 35 FLA
#10-32 Sems Screw
with Pressure Plate
Standard
on 40 FLA
Lug accepts 14-4
Cu/Al AWG
2-Pole
2.10 Max.
(53.3)
3.30
(83.8)
2.313
(57.75)
1.625
.875 (41.28)
(22.2)
2.445
(62.1)
1.625 (41.3)
2.00 (50.8)
2.610
(66.3)
.215 TYP
(5.46)
ORDERING NOTE:
“Standard” terminals need not be specified in the “Ordering Information” chart above. “Special” terminals are offered on a special order basis.
Special order items may be subject to extended leadtimes and significant minimum order quantities. Your TE sales engineer must consult with the
factory before providing price and availability information regarding items with these options.
2
02-2013, Rev. 0213
www.te.com
© 2013 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
