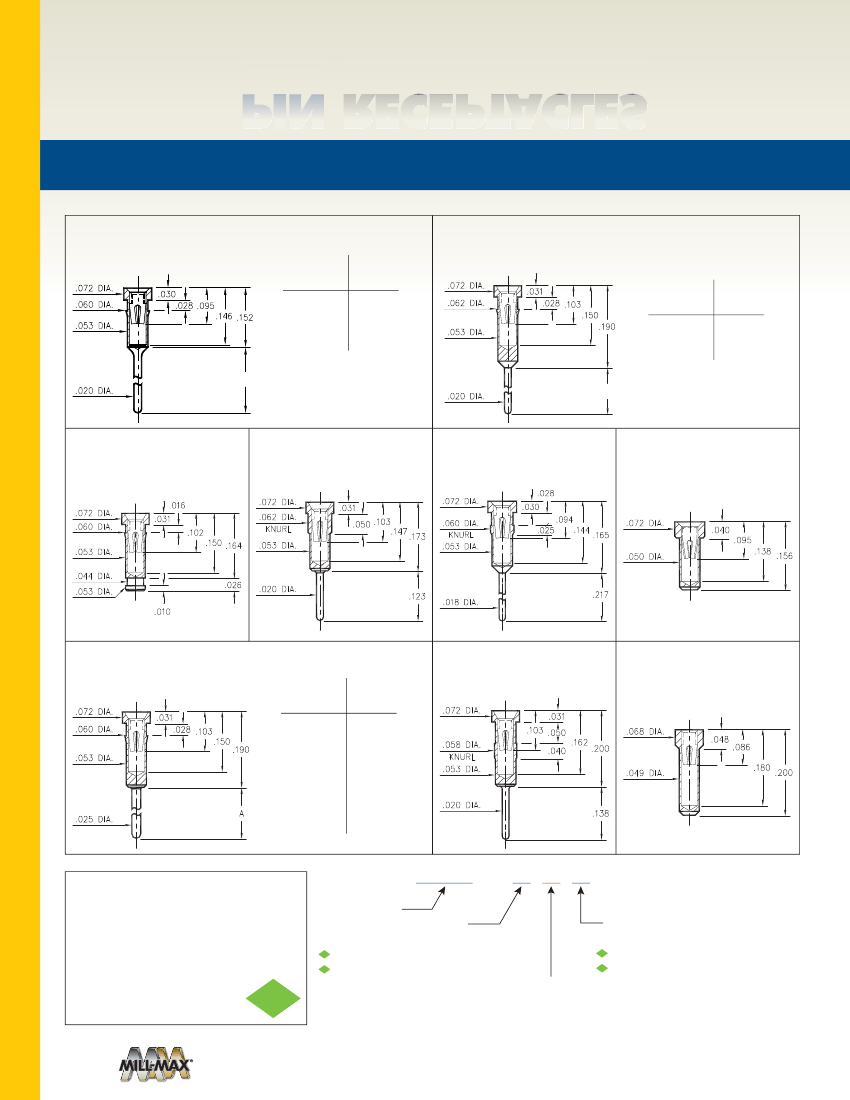

RECEPTACLES

FOR .015” - .025” DIAMETER PINS

1005/1013/8898

XXXX-0-15-XX-3X-XX-04-0

Press-fit in .057 mounting hole

Annealed brass shell for auto-clinching

0145/0146

014X-0-15-XX-30-XX-04-0

Basic Part

Number

Length

Press-fit in .059 mounting hole

1005-0

1013-0

8898-0

.138

.165

.224

Basic Part

Number

Length

0145-0

0146-0

.300

.410

NOTE: 8898 is not annealed &

not suitable for auto-clinching

4378

4378-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

0556

0556-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

1103

1103-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

9234

9234-0-15-XX-30-XX-10-0

Solder mount in .052 min. mounting hole

0136/37/38/39/41/48/52

01XX-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

0447

0447-0-15-XX-30-XX-04-0

Length

Press-fit in .056 mounting hole

5660

5660-0-15-XX-30-XX-10-0

Solder mount in .051 min. mounting hole

Basic Part

Number

0136-0

0137-0

0138-0

0139-0

0141-0

0148-0

0152-0

1.215

.560

.210

.635

.700

.455

.410

PAGE 166 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 15 - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

”

TIN/LEAD OVER NICKEL

200

”

TIN OVER NICKEL (RoHS)

”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

”

TIN/LEAD OVER NICKEL

100

”

TIN OVER NICKEL (RoHS)

”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

SELECT CONTACT:

#30 or #32

CONTACT (DATA ON PAGE 253)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
