A6E-7104-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> A6E-7104-N

A6E-7104-N: CategoryMechanical and electronic products switch; File Size538KB，3 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

A6E-7104-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A6E-7104-N	-	-	View	Buy Now

A6E-7104-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	20 weeks
Actuator color	WHITE
Actuator length	0.047 inch
Actuator type	SLIDE
body width	9.906 mm
body height	5.842 mm
Body length or diameter	19.1516 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact resistance	0.2 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	1000 Cycle(s)
End contact plating	GOLD
Insulation resistance	100000000 Ω
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	7
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal length	0.126 inch
Termination type	SOLDER
Base Number Matches	1

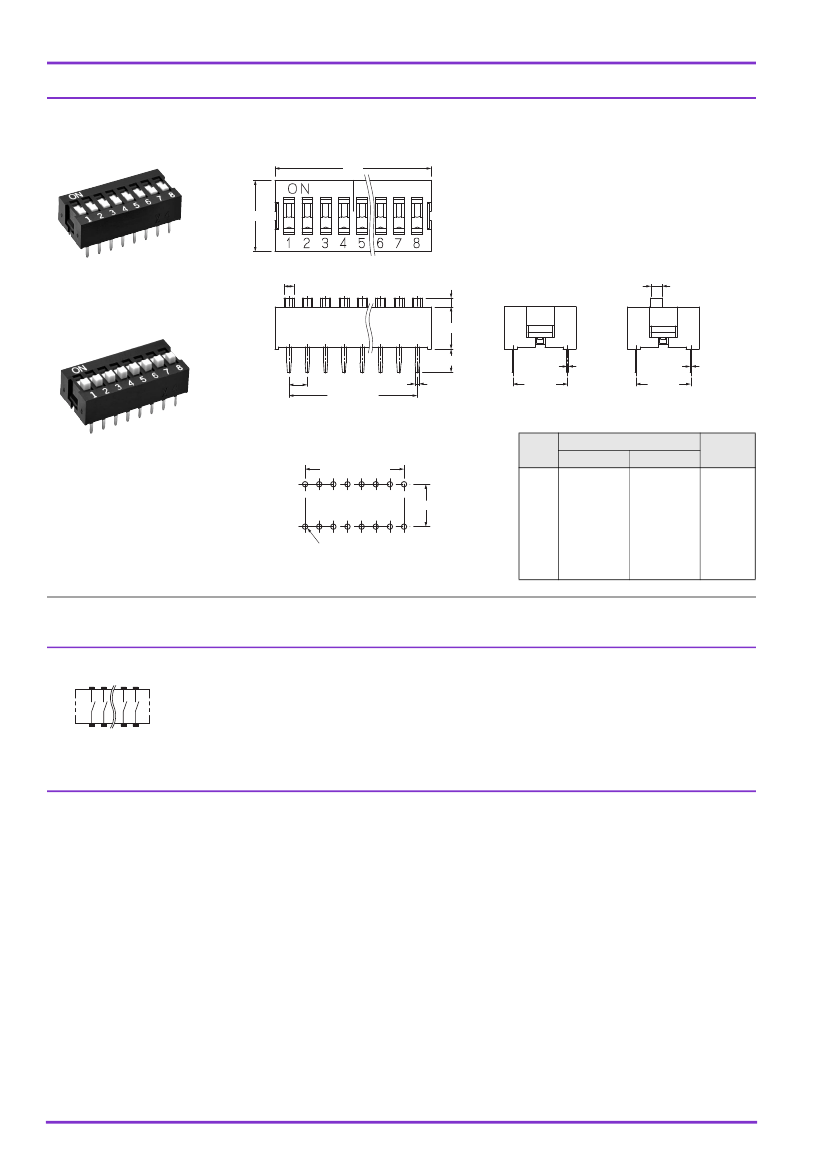

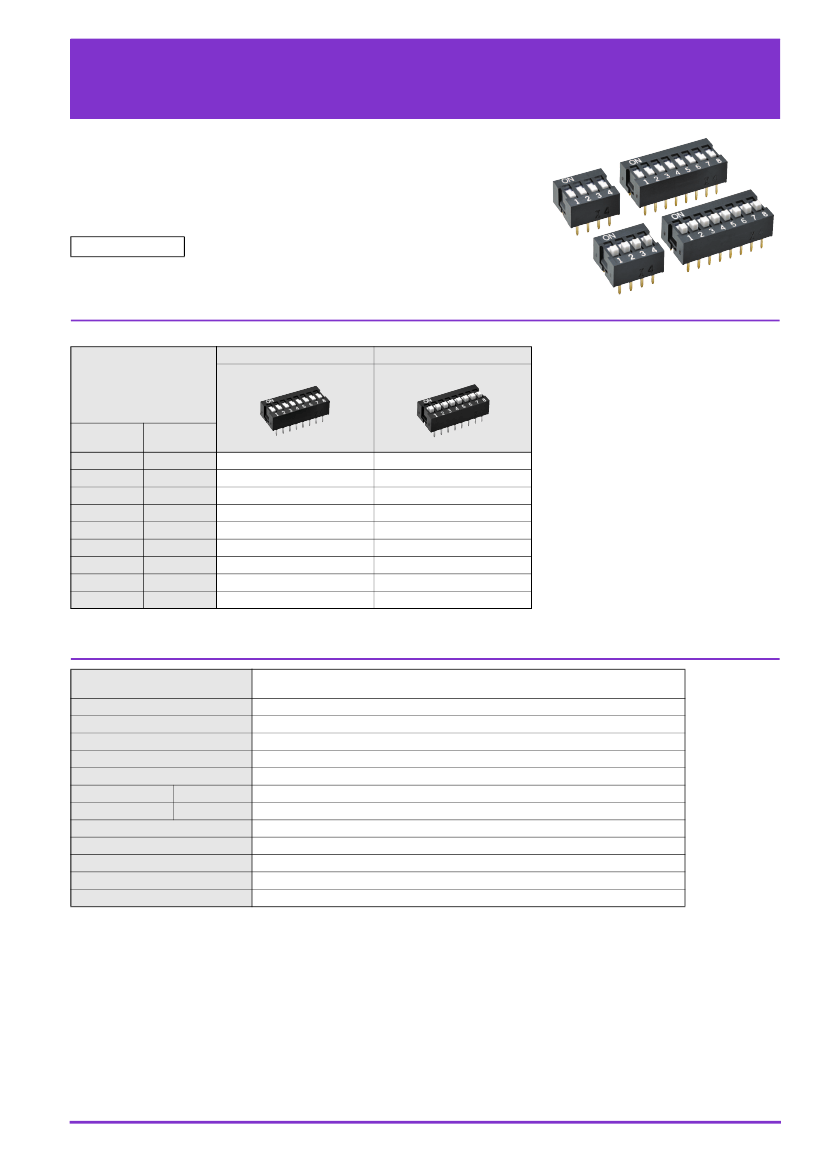

Preview

Download Datasheet

View All

A6E-N

Slide DIP Switch

Box type Through-hole Mounting DIP

Switch

•

Gold-plated twin contacts ensure high reliability.

•

Available both ON and OFF-set soldering.

RoHS Compliant

List of Models

●

Tube Packaging

Type

Flat actuator

Raised actuator

Appearance

No. of poles

Quantity per

tube

A6E-2101-N

A6E-3101-N

A6E-4101-N

A6E-5101-N

A6E-6101-N

A6E-7101-N

A6E-8101-N

A6E-9101-N

A6E-0101-N

A6E-2104-N

A6E-3104-N

A6E-4104-N

A6E-5104-N

A6E-6104-N

A6E-7104-N

A6E-8104-N

A6E-9104-N

A6E-0104-N

Note:

Order in multiples of the package quantity.

Ratings / Characteristics

Ratings(resistive load)

Ambient operating temperature

Ambient operating humidity

Insulation resistance

Contact resistance (initial value)

Dielectric strength

Vibration resistance

Shock resistance

Durability

Washing

Degree of protection

Operating force

Weight

Malfunction

25 mA at 24 VDC

10 µA (minimum current) at 3.5 VDC

–20 to +70°C at 60% max. (with no icing or condensation)

35% to 95% (at +5 to +35°C)

100 MΩ min. (at 250 VDC with insulation tester)

200 mΩ max. (initial value)

Between terminals 500 VAC for 1 min

10 to 55 Hz, 1.5-mm double amplitude

300 m/s

min.

1,000 operations min.

Not possible

IEC IP40

0.29 to 9.8 N

Raised actuator: 0.43 g (2 poles) 0.78 g (4 poles) 1.12 g (6 poles) 1.47 g (8 poles) 1.82 g (10 poles)

A6E-7104-N Related Products

	A6E-7104-N	A6E-3101-N
Description		Common Mode Chokes / Filters 51uH 250mA -30%/50% 5.2x3.2mm SMD
Is it Rohs certified?	conform to	conform to
Maker	OMRON	OMRON
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Factory Lead Time	20 weeks	12 weeks 3 days
Actuator color	WHITE	WHITE
Actuator type	SLIDE	SLIDE
body width	9.906 mm	9.906 mm
body height	5.842 mm	5.842 mm
Body length or diameter	19.1516 mm	8.9916 mm
Center contact plating	GOLD	GOLD
Maximum contact current (DC)	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC
Contact resistance	0.2 mΩ	0.2 mΩ
Maximum contact voltage (DC)	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V
Electrical life	1000 Cycle(s)	1000 Cycle(s)
End contact plating	GOLD	GOLD
Insulation resistance	100000000 Ω	100000000 Ω
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	7	3
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
surface mount	NO	NO
Switch action	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Terminal length	0.126 inch	0.126 inch
