Datasheet

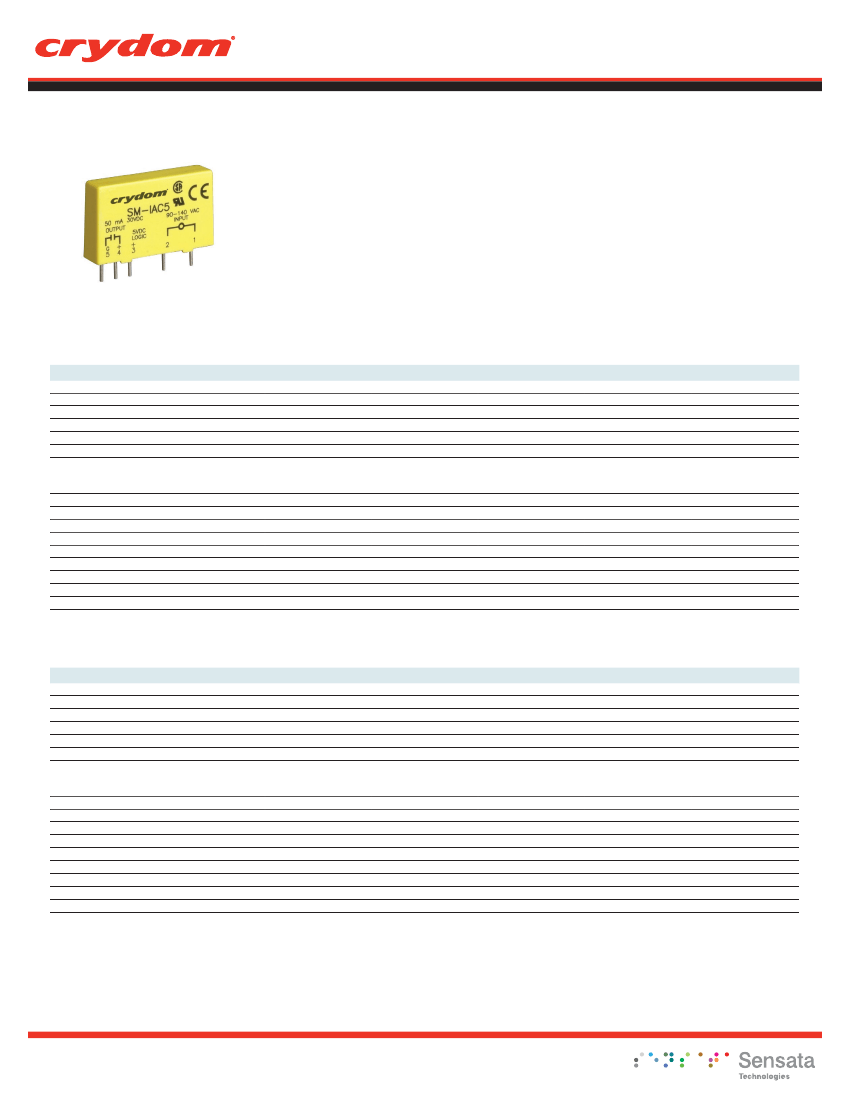

SM SERIES INPUT MODULES
•
Plug into mounting boards for SM Series modules
•
AC Inputs (Yellow Case) for 24 V, 120 V, 240 V
•
DC Inputs (White Case) for 3.3 to 32 V, 10 to 48 V
•
4kV Optical isolation
•
Open-collector Output
•
Industry standard packaging
I/O Modules
SPECIFICATIONS
(1)
Input
Part Number
Voltage Range
Maximum Current [mA]
(4)
Resistance [Ohms]
(2)(3)
Drop-out Current [mA]
(5)
Voltage for No Output [VAC/VDC]
(6)
Allowable Current [mA]
Maximum Voltage[VDC]
(9)
Maximum Voltage Drop [VDC]
(12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA]
(10)
Maximum Logic Supply Current [mA]
(7)
Maximum Logic Supply Leakage Current [µA]
(8)
Maximum Leakage Current [µA]
(11)
Maximum Turn-On Time [msec]
(13)
Maximum Turn-Off Time [msec]
(13)
90-140 VAC/DC
6
28 k
2
50
2.5
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
SM-IAC5
180-280 VAC/DC
5
75 k
1.5
50
2
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
SM- IAC5A
90-140 VAC/DC
6
28 k
2
50
2.5
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
SM- IAC24
180-280 VAC/DC
5
75 k
1.5
50
2
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
SM- IAC24A
3.3-32 VDC/AC
34
500
1.0
2.0
1.5
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
1.0
1.0
SM-IDC5
Output
Input
SPECIFICATIONS
(1)
3.3-32 VDC/AC
34
1k
1
2
1.5
30
0.2
24
20-30
50
16.0
10.0
10.0
1.0
1.0
Part Number
Voltage Range
Maximum Current [mA]
(4)
Resistance [Ohms]
(2)(3)
Drop-out Current [mA]
(5)
Voltage for No Output [VAC/VDC]
(6)
Allowable Current [mA]
Maximum Voltage[VDC]
(9)
Maximum Voltage Drop [VDC]
(12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA]
(10)
Maximum Logic Supply Current [mA]
(7)
Maximum Logic Supply Leakage Current [µA]
(8)
Maximum Leakage Current [µA]
(11)
Maximum Turn-On Time [msec]
(13)
Maximum Turn-Off Time [msec]
(13)
SM-IDC24
SM-IDC5F
4-32 VDC
68
500
1
2
1.5
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
0.05
0.10
10-48 VDC/AC
34
1k
1
4
1.5
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
8.0
7.0
SM-IDC5N
Output
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
Description
Input/Output Isolation Voltage
(14)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
I/O Modules
GENERAL NOTES:
(1)
Specifications apply to an ambient temperature of -30 to 80 °C unless otherwise noted.
(2)
Resistance values for IAC modules are effective impedance values at 25 °C.
(3)
Resistance values are +/-10% at 25 °C.
(4)
Measured at maximum specified input voltage, 25°C.
(5)
Defined as the maximum current allowed through the module's input to guarantee that
the output will switch from "on" to "off ". Higher currents may result in the output remaining
in the "on" state.
(6)
Defined as the maximum current allowed through the module's input that will not switch
the module's output state from "off " to "on".
(7)
With external LED status indicator at maximum specified logic supply voltage and 25°C.
18mA without external LED.
(8)
At maximum specified logic voltage and 25°C.
(9)
Applied across open collector output transistor.
(10)
Sinking current through the open collector output transistor.
(11)
At maximum output voltage and 25°C.
(12)
At maximum output current and 25°C.
(13)
At nominal logic supply voltage, 25mA output sinking current, nominal input voltage
and 25°C
(14
)
At 25°C for 1 second maximum duration.

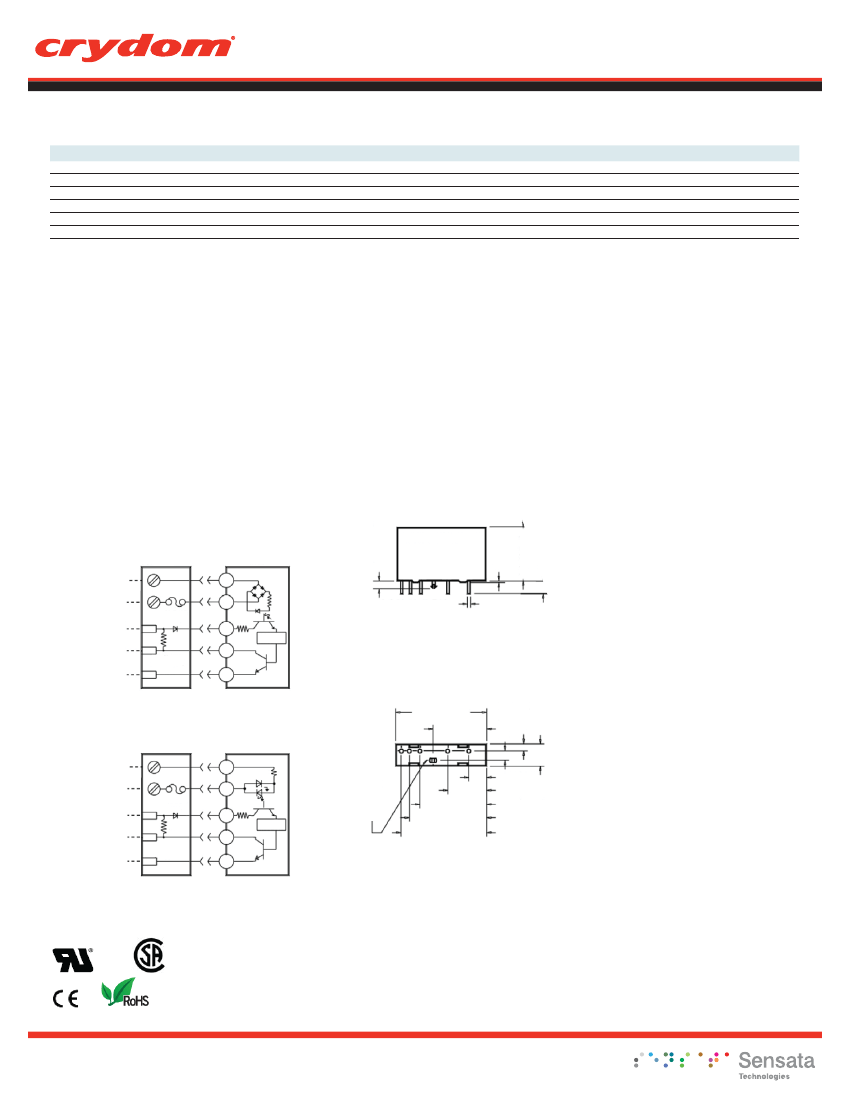

EQUIVALENT CIRCUIT DIAGRAMS / MECHANICAL SPECIFICATIONS
0.035 (.89)
AC INPUT
PLUG-IN MODULE
1
2
VAC
VAC
+VCC LOGIC
SUPPLY
5 4
3
2
1
SCREW
TERMINALS
5A FUSE
0.042 (1.1) DIA
+
LED
3.3K
3
4
5
SCHMMIT
TRIGGER
OUTPUT
LOGIC GND
(COMMON)
TRACES ON
MALE CARD
EDGE
1.0 (25.4)
0.1 (2.5)
PORTION OF
PB SERIES
I/O MODULE
MOUNTING BOARD
CASE COLORS:
AC-YELLOW
DC-WHITE
0.12 (2.9)
DC INPUT
PLUG-IN MODULE
1
2
+
VDC
VDC
+VCC LOGIC
SUPPLY
+
SCREW
TERMINALS
PLASTIC PIN SNAPES
IN 0.100” DIA HOLE ±0.005”
PORTION OF
PB SERIES
I/O MODULE
MOUNTING BOARD
1.0 (25.4)
0.3 (7.6)
0.7 (17.8)
1.2 (30.5)
1.4 (35.6)
1.6 (40.6)
5A FUSE
+
LED
3.3K
3
4
5
+
SCHMMIT
TRIGGER
OUTPUT
LOGIC GND
(COMMON)
TRACES ON
MALE CARD
EDGE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS: INCHES (MILLIMETERS)
TOLERANCE:
