revision for dwg #
1PB-2AMLSx
rev
-
ch.no.
-
description
original design
date
11/15/2007
1
revised by
Philipp E.
2
3
5
4
30 mm
[1.2 in]
ITEM DESCRIPTION
1
max 6 mm
[.25 in]
43 mm
[1.7 in]
67 mm
[2.6 in]
91 mm
[3.6 in]
2
3
4
5
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
CAT. NO.
2AMLS1
Mushroom Push-Turn
2AMLS2
Small Operator (comes
2AMLS3
with mounting bracket
2AMLS4
2BRK)
2AMLS6
2AMLS8
Mounting Bracket
2BRK
Mounting Bracket Screws incl. in 2BRK
Panel
-
S1
S2
Switch Contacts
S3
S4
COLOR
MIN. QTY. MAX. QTY.
White
1
1
Black
1
1
Green
1
1
Red
1
1
Blue
1
1
Yellow
1
1
-
1
1
-
2
2
-
-
-
Green
1
6
Red
1
6
Green/Gray
1
6
Red/Gray
1
6
unless otherwise specified:
all dimensions are in millimeters
third angle projection
tolerance
XX
XX.X
XX.XX
ALL
This Drawing is the property of
R
titel

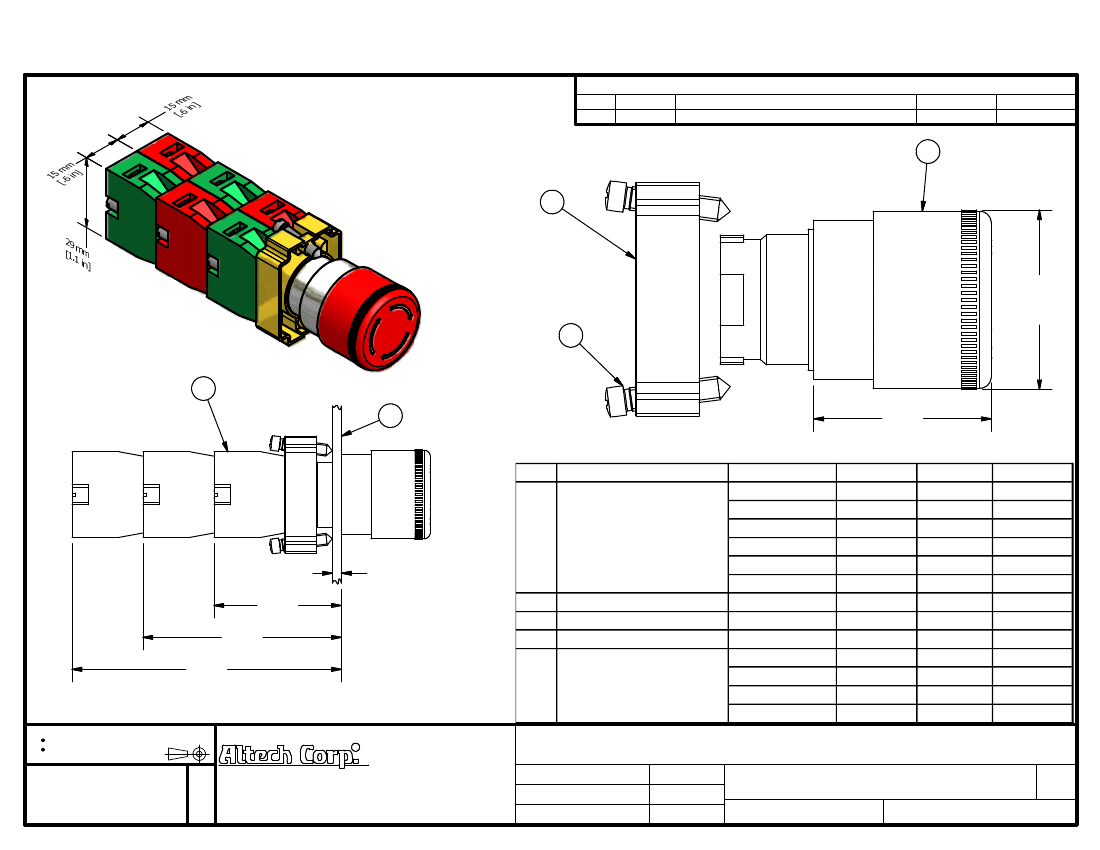

22 mm Mushroom Push-Turn Small Metal Operator 2AMLSx
(x=color)
11/15/2007
11/15/2007
11/15/2007
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
M
E
T
R
I
C
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
drawing no.:
1PB-2AMLSx
scale:
-
sheet:
1
of:
1
n
30 mm
[1.2 in]
rev.:
-
Embedded System
