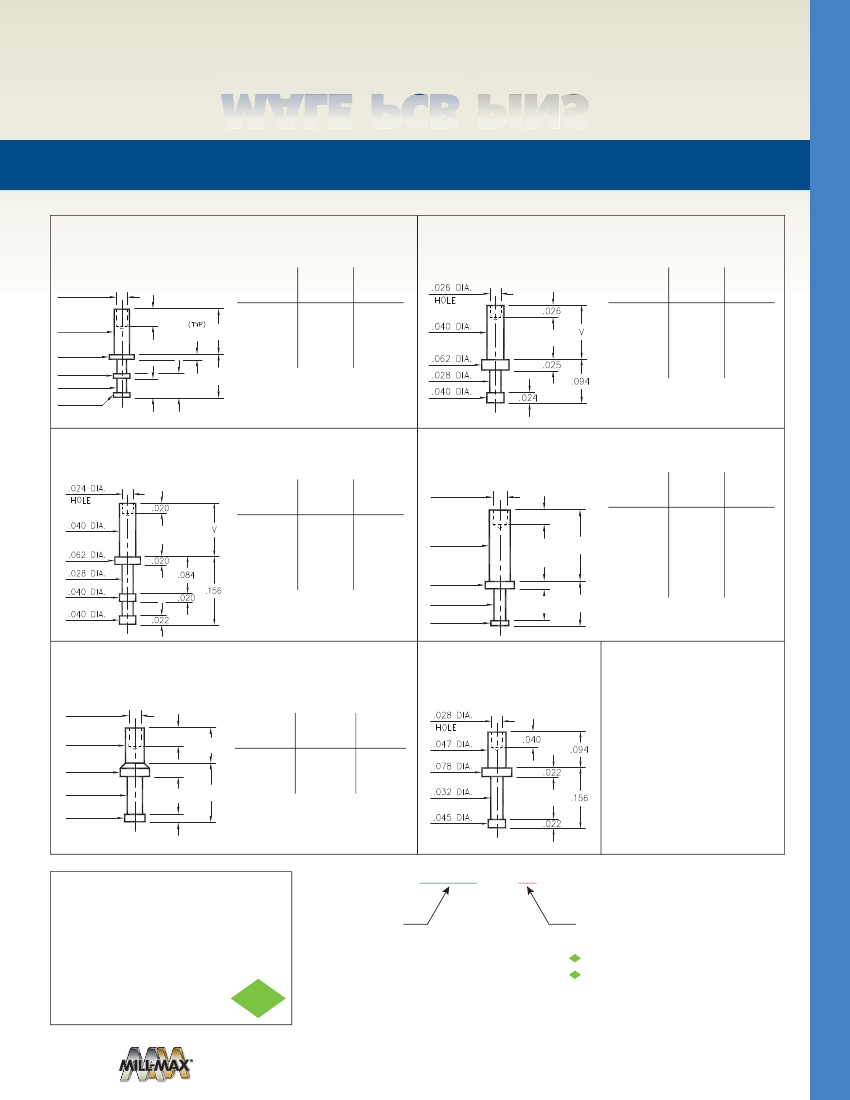

MALE PCB
PINS
SOLDER TERMINAL TURRETS
2111
2111-X-00-XX-00-00-07-0
Swage mount in .033 hole
.020 DIA.
HOLE
.030 DIA.
.047 DIA.
.032 DIA.
.020 DIA.
.032 DIA.
.030 .040
.070
.031
.010
2113
2113-X-00-XX-00-00-07-0
Swage mount in .043 hole
Basic Part
Number
Board
Thickness
Length
V
Basic Part
Number
Board
Thickness
Length
V
V
2111-1
2111-2
2111-3
.031
.062
.094
.053
.084
.115
2113-1
2113-2
2113-3
2113-4
.031
.062
.094
.125
.053
.084
.115
.147
2108
2108-X-00-XX-00-00-07-0
Swage mount in .043 hole
2102
2102-X-00-XX-00-00-07-0
Swage mount in .052 hole
Basic Part
Number
Board
Thickness
Length
V
.028
DIA.
HOLE
.031
Basic Part
Number
Board
Thickness
Length
V
2108-1
2108-2
2108-3
2108-4
.031
.062
.094
.125
.053
.084
.115
.147
.047
DIA.
.018
.064
DIA.
.028
DIA.
.041
DIA.
.063
V
2102-5
2102-1
2102-2
2102-3
2102-4
.016
.031
.062
.094
.125
.035
.054
.084
.115
.147
.094
2109
2109-X-00-XX-00-00-07-0
Swage mount in .052 hole
.028 DIA.
HOLE
.047 DIA.
.070 DIA.
.038 DIA.
.050 DIA.
.136
.043
2324
Basic Part
Number
Board
Thickness
Length
V
2324-2-00-XX-00-00-07-0
Swage mount in .052 hole
For a .062 thick board
V
2109-1
2109-2
.084
.031
.062
.052
.085
.020
SPECIFICATIONS:
Pin Material:
Brass Alloy 360, 1/2 Hard
( Swage pins are annealed )
Dimensions: Inches
Tolerances On:
Lengths: ± .005
Diameters: ± .002
Angles:
±2°
RoHS - 2
2011/65/EU
ORDER CODE: XXXX - X - 00 -
XX
- 00 - 00 - 07 - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200
”
TIN/LEAD OVER NICKEL
80
200
”
TIN OVER NICKEL (RoHS)
44
300
”
SILVER OVER COPPER (RoHS)
50
300
”
ELECTRO-SOLDER
(60/40 SnPb)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 229 | MALE PCB PINS
