PANEL MOUNT PUSHBUTTON – DOUBLE POLE
E75-E79 Series

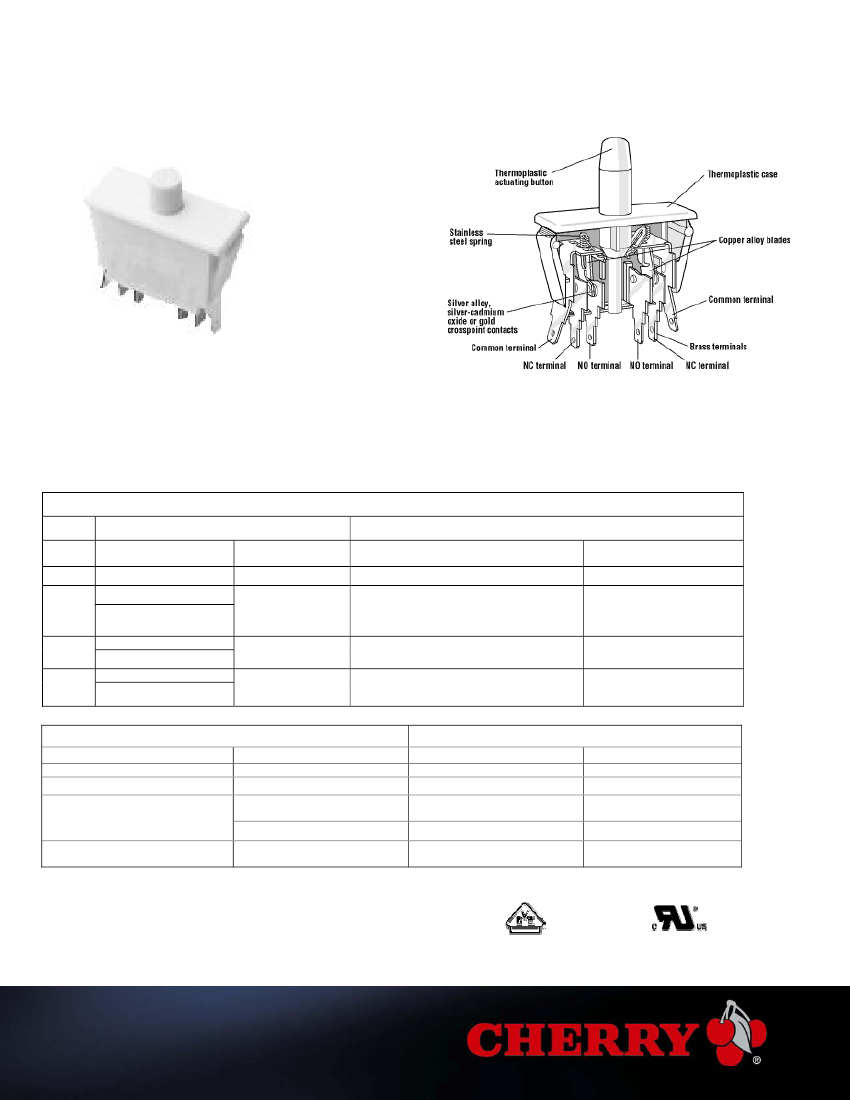

Features
Choice of Momentary, Push-Pull (reset) and Cheat Interlock
Long life coil spring, snap action mechanism
Agency approved extended life versions available
Snap in mounting
VDE available on select models
RoHS Compliant
Electrical Ratings and Operating Life
According to EN61058-1
Switch
Series
E75
E77
F77
E78
F78
E79
F79
Nominal Load
N/A
N/A
0.1(0.05)A, 125VAC;
10(4)A, 250VAC
N/A
0.1(0.05)A, 125VAC
N/A
10(4)A, 250VAC
Operation cycles
N/A
N/A
50,000
N/A
50,000
N/A
50,000
According to UL1054
Nominal Load
16A, 125/250VAC; 1/3HP; 125/250VAC
0.1A 125vac; 10A 1/3HP, 125/250vac
Operation cycles
6,000 *
6,000 *
0.1A, 125VAC
10A, 125/250VAC; 1/3HP, 125/250VAC
6,000 *
6,000 *
* Extended life UL versions available. Contact factory for more information. Special part number required.
Technical Specifications
Temperature Rating:
Flammability Rating
Terminals
UL File Number:
Specifications subject to change
-40°C to 85°C
UL94V-0
Up to 10A: 0.187” x 0.020”
16A: 0.250” x 0.032”
VDE versions: 0.0187” x 0.032”
E23301
Material Specifications
Case:
Actuator button:
Terminals:
Moving Blade:
Spring:
Contacts:
Optional
Thermoplastic Polyester
Thermoplastic Acetal
Brass (Common Ag plated)
Beryllium Copper
Stainless Steel
Silver-CdO: E75, E/F79
Gold Crosspoint: E/F78

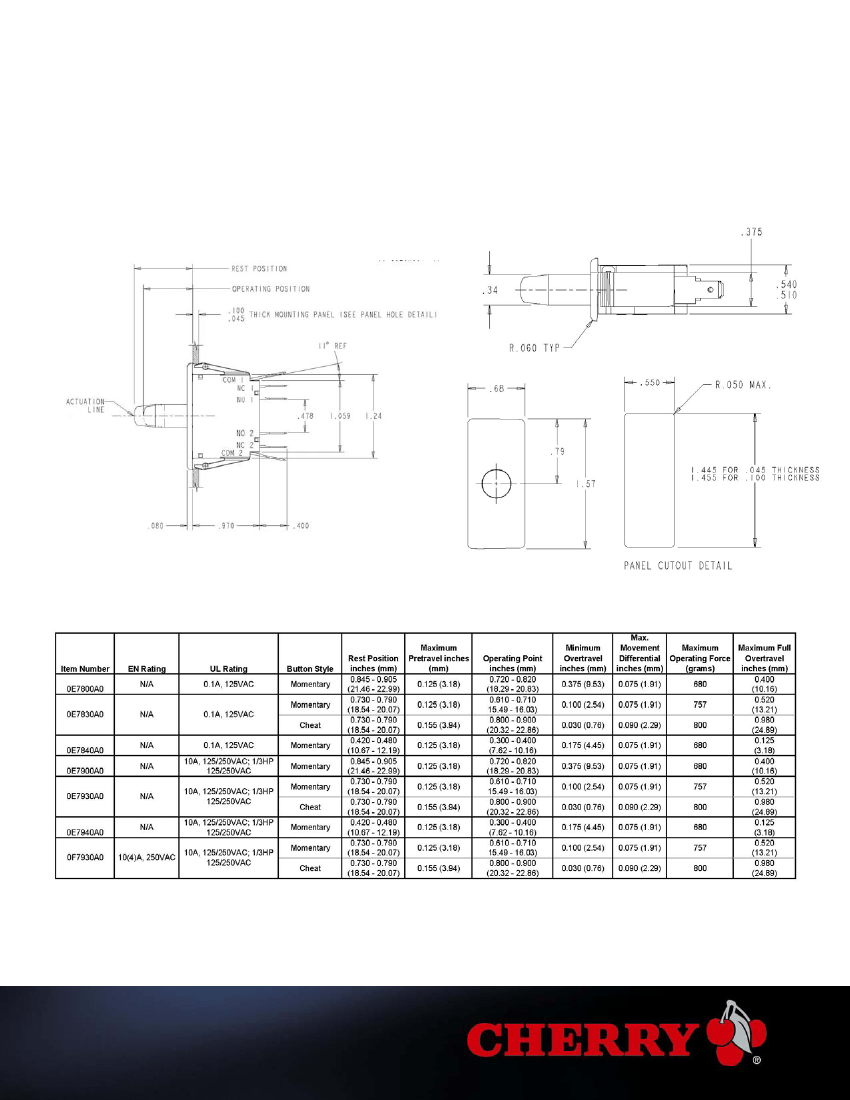

PANELMOUNT PUSHBUTTON – DOUBLE POLE
E75-E79 Series

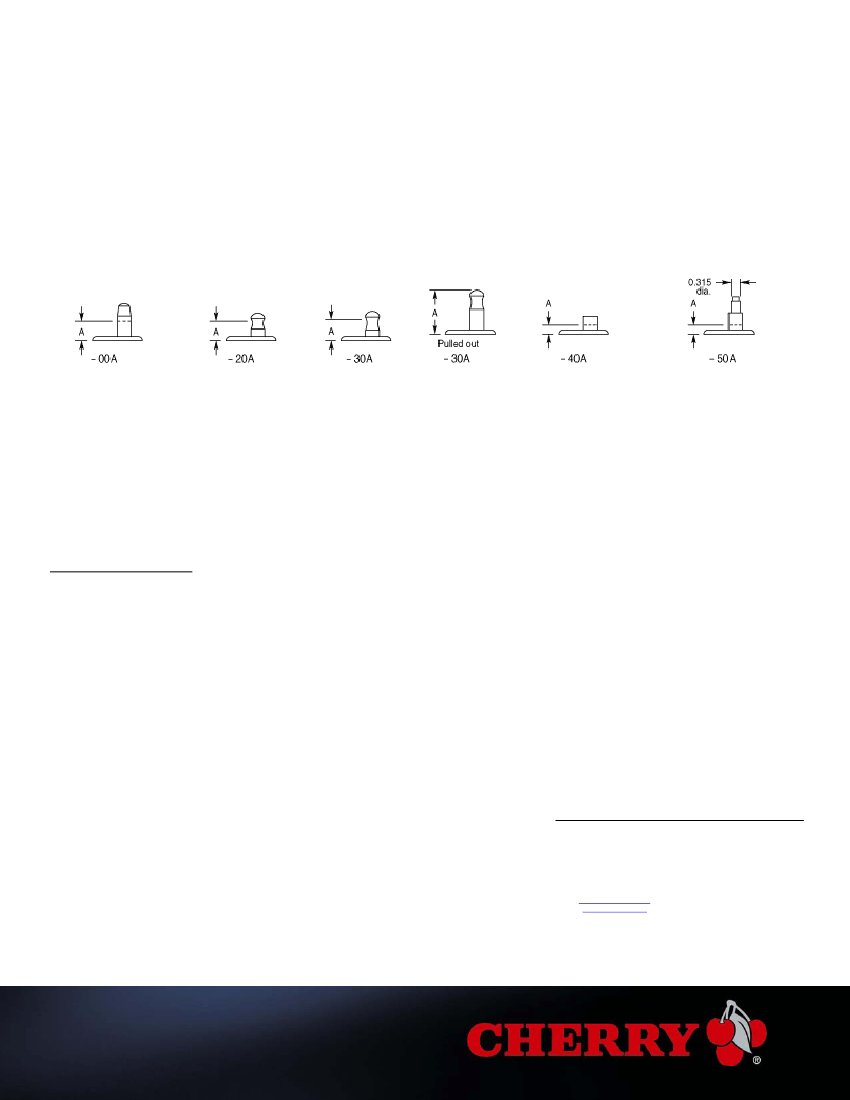

Button Details
Basic Momentary
Push-Pull (Reset)
Momentary
Cheat Interlock
Short Button Momentary
Momentary - For Auxiliary Push Button
“A” dimension is full overtravel dimension – see above
Ordering Information
Select the desired contact rating
E79
Combine with the button style
40A
Full part number
E79-40A
For single throw versions:
Select the desired contact rating
E79
Combine with the button style
40A
SPST – NO
E79-41A
(Add 1 to suffix)
SPST - NC
E79-42A
(Add 2 to suffix)
Contact
Call, fax or visit our
Website for more information.
ZF Electronics Corporation
11200 88th Avenue
Pleasant Prairie, WI 53158
Phone: 262.942.6500
Web:
www.cherrycorp.com
Email:
cep_sales@zf.com
Fax: 262.942.6566
The manufacturer accepts no
liability for errors or non-availability,
and reserves the right to change
specifications without prior notice.
Technical data relates to product
specifications only. Features may
differ from those described. Only
drawings combined with product
specifications shall be deemed
binding.
© 2007 ZF Electronics Corporation
Last Updated: 070711
