WB15L-DA

Description
Pushbutton Switches SPDT ON-NONE-(ON) WIRE LEADS SEALED
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size163KB,5 Pages
ManufacturerNKK
Websitehttps://www.nkkswitches.com.cn
Download Datasheet Parametric View All

WB15L-DA Online Shopping

Suppliers Part Number Price MOQ In stock
WB15L-DA - - View Buy Now

WB15L-DA Overview

Pushbutton Switches SPDT ON-NONE-(ON) WIRE LEADS SEALED

WB15L-DA Parametric

Parameter NameAttribute value
Product CategoryPushbutton Switches
ManufacturerNKK
RoHSDetails
Mounting StylePanel
Contact FormSPDT
Switch FunctionON - (ON)
Current Rating6 A
Voltage Rating AC250 VAC
Voltage Rating DC30 VDC
Termination StyleWire Leads
Contact PlatingTin
ActuatorRound
Flammability RatingUL 94 V-0
IP RatingIP67
PackagingBulk
Housing MaterialPolyamide, Glass Fiber Reinforced
Life30000 Cycles
Factory Pack Quantity1
Terminal SealEpoxy
Unit Weight1.888004 oz

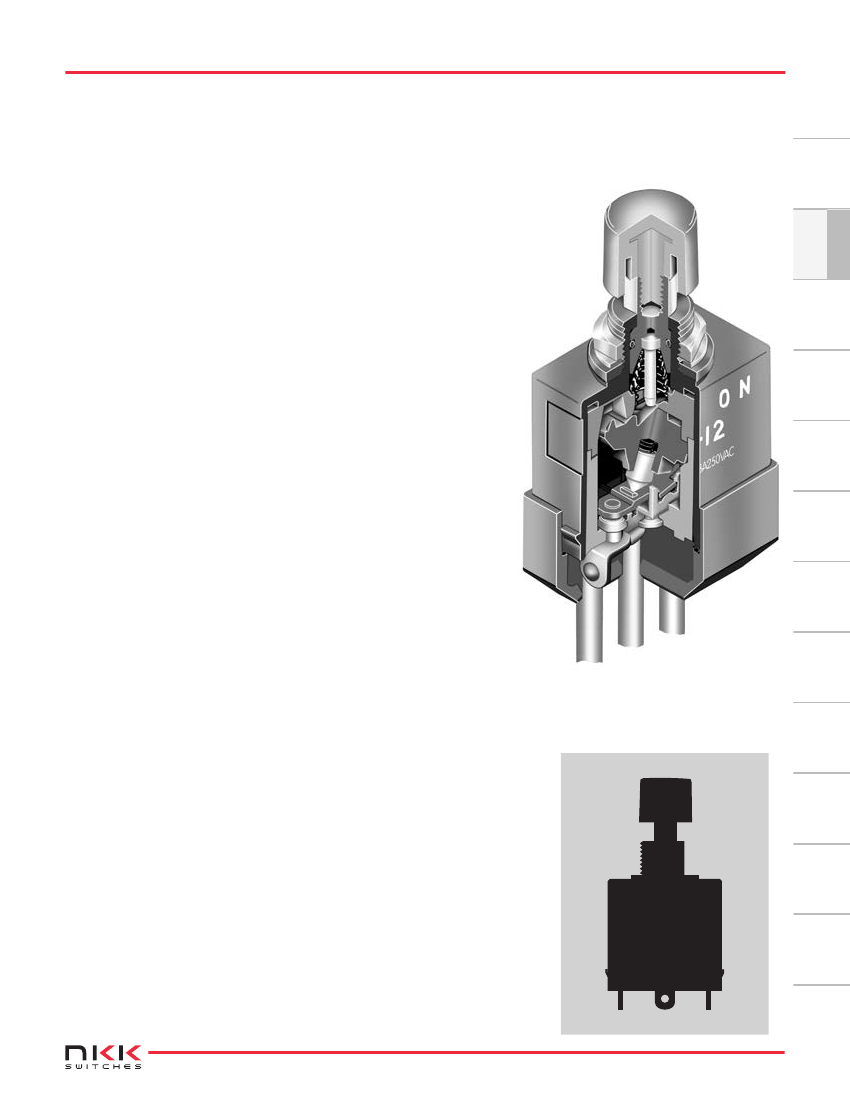

Series WB
Toggles
Environmentally Sealed Pushbuttons
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Power Level:
6A @ 125V AC & 3A @ 250V AC or 6A @ 30V DC
Pushbuttons
C
Other Ratings
Contact Resistance:
Programmable Illuminated PB
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Total Travel:
10 milliohms maximum for solder lug & screw terminal models
30 milliohms maximum for wire lead terminal models
200 megohms minimum @ 500V DC
1,500V AC minimum for 1 minute minimum
30,000 operations minimum
15,000 operations minimum
Break before make
Alternate Action .177” (4.5mm); Momentary Action .110” (2.8mm)
Keylocks
Materials & Finishes
Slides
Plunger:
Bushing & Outer Case:
Inner Case:
Inner Sealing Ring:
Outer Sealing Ring:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
Terminals:
Wire Lead Covers:
Brass with nickel plating
Fiberglass reinforced polyamide (UL94V-0 outer case)
Melamine
Silicone rubber
Nitrile butadiene rubber
Copper with silver plating
Silver alloy with silver plating
Silver alloy with silver plating
Brass with tin plating
Heat resistant polyvinyl chloride (Leads are AWG 16.)
Rotaries
Tactiles
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Tilt
–30°C through +70°C (–22°F through +158°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Touch
Mounting Torque:
Soldering Time & Temp:
1.5Nm (13 lb
in)
Manual Soldering: See Profile A in Supplement section.
Indicators
Standards & Certifications
Flammability Standards:
Wiring Material Standards:
Supplement
Accessories
UL94V-0 outer case
UL AWM 1015 Recognized at Flammability VW-1;
Temperature Range –20°C ~ +105°C; Maximum Load 600V; AWG 16
CSA TEW 105 Certified at Temperature Range –20°C ~ +105° C;
Maximum Load 600V
C134
www.nkkswitches.com
