Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
L
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L-14 thru L-18. For additional options not shown in catalog, consult Customer Service Center.
Rotary
Switch Function
MA00
SP, 10 pos., 36°
MA02
SP, 2 pos., 36°
MA03
SP, 3 pos., 36°
MA04
SP, 4 pos., 36°
MA05
SP, 5 pos., 36°
MA06
SP, 6 pos., 36°
MA10
SP, 10 pos., 36°
MB00
DP, 5 pos., 36°
MB03
DP, 3 pos., 36°
MB04
DP, 4 pos., 36°
MB05
DP, 5 pos., 36°
MC00
SP, 12 pos., 30°
MC03
SP, 3 pos., 30°
MC07
SP, 7 pos., 30°
MC12
SP, 12 pos., 30°
MD00
DP, 6 pos., 30°
MD06
DP, 6 pos., 30°
ME00
SP, 10 pos., 36°
ME04
SP, 4 pos., 36°
MF00
DP, 5 pos., 36°
MG00
SP, 12 pos., 30°
MH00
DP, 6 pos., 30°
Actuator & Bushing
L1
.650"
long, flatted
L2
Screwdriver slot, flush
L3
.650" long, round
S1
.650" long, flatted
S2
Screwdriver slot, flush
S3
.650" long, round
S6
.785" long, slot
Short/Non-short
N
Non-shorting contacts
Terminations
Z
Solder lug
C
PC Thru-hole
Contact Material
Q
Silver
G
Gold over silver
Seal
D
No seal
F
Splashproof shaft & panel seal
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–13
www.ck-components.com

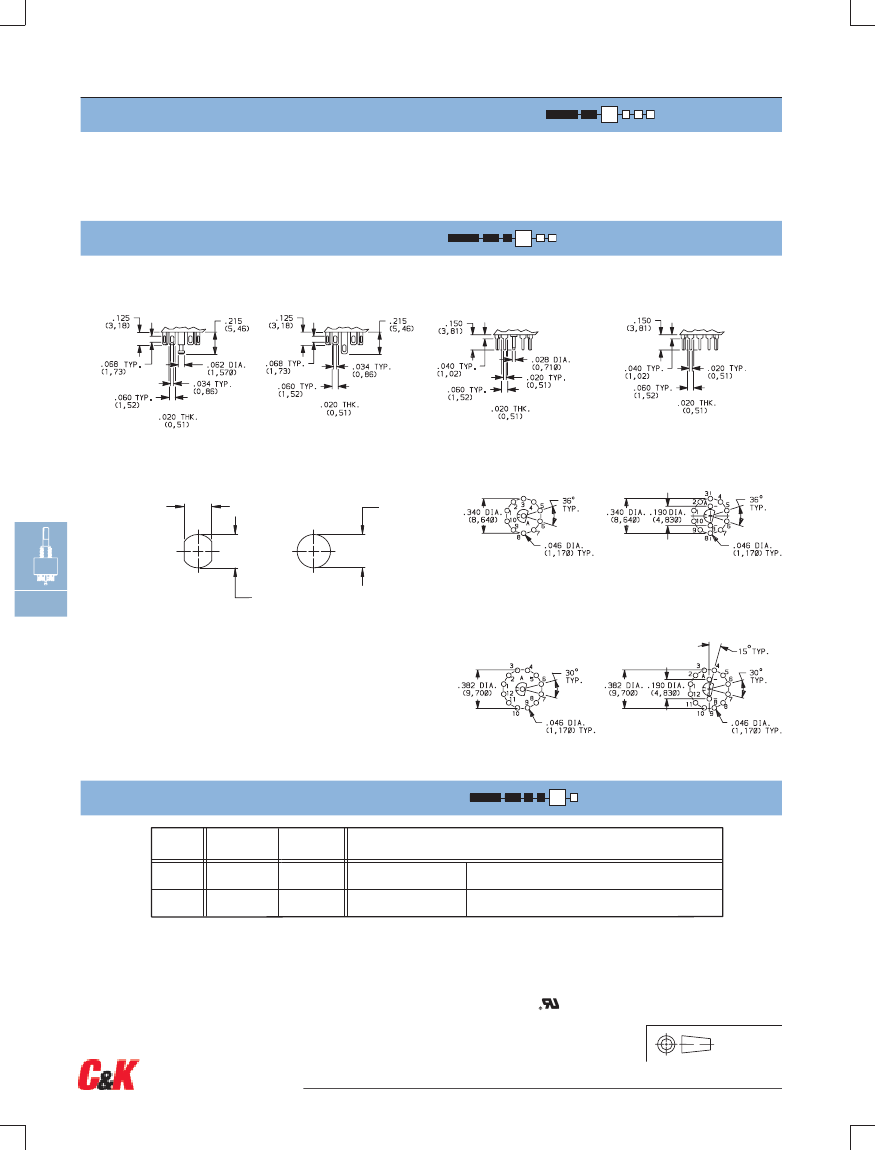

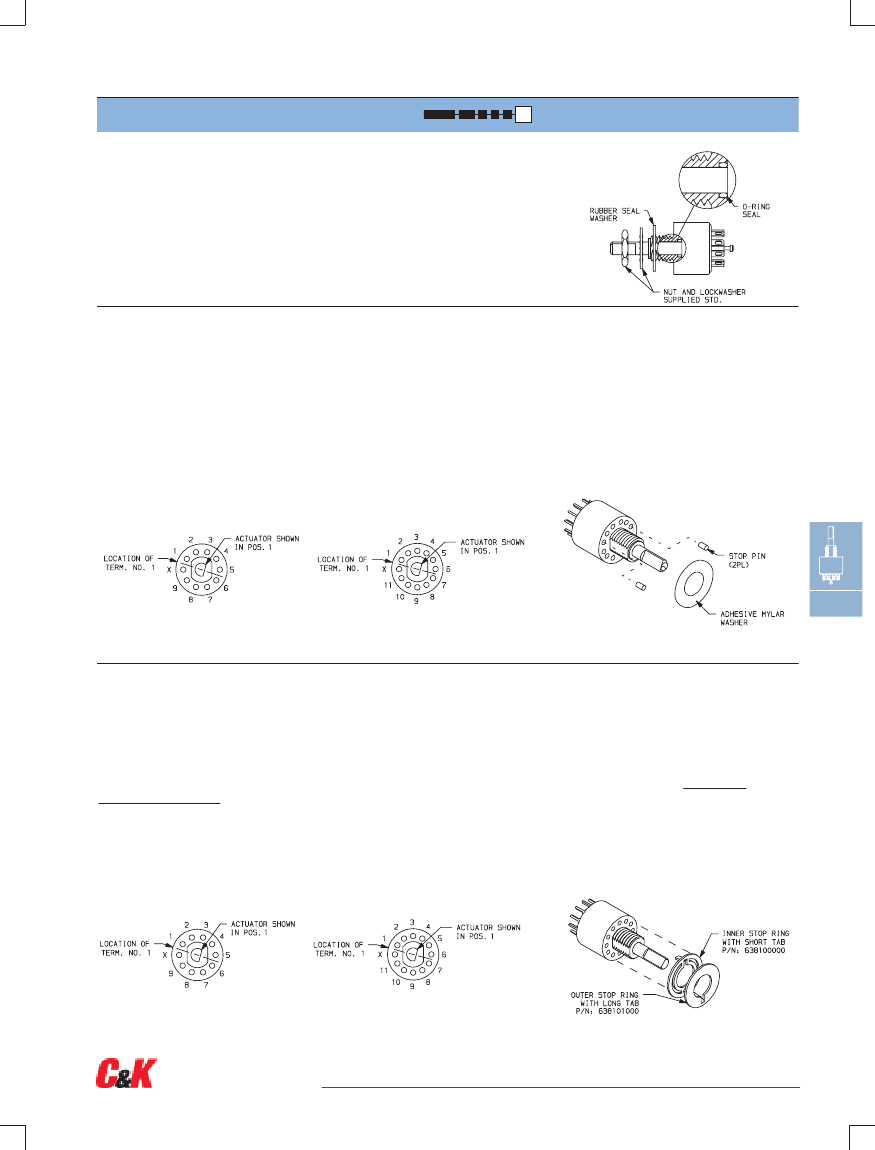

M Series
Half-inch Rotary Switches

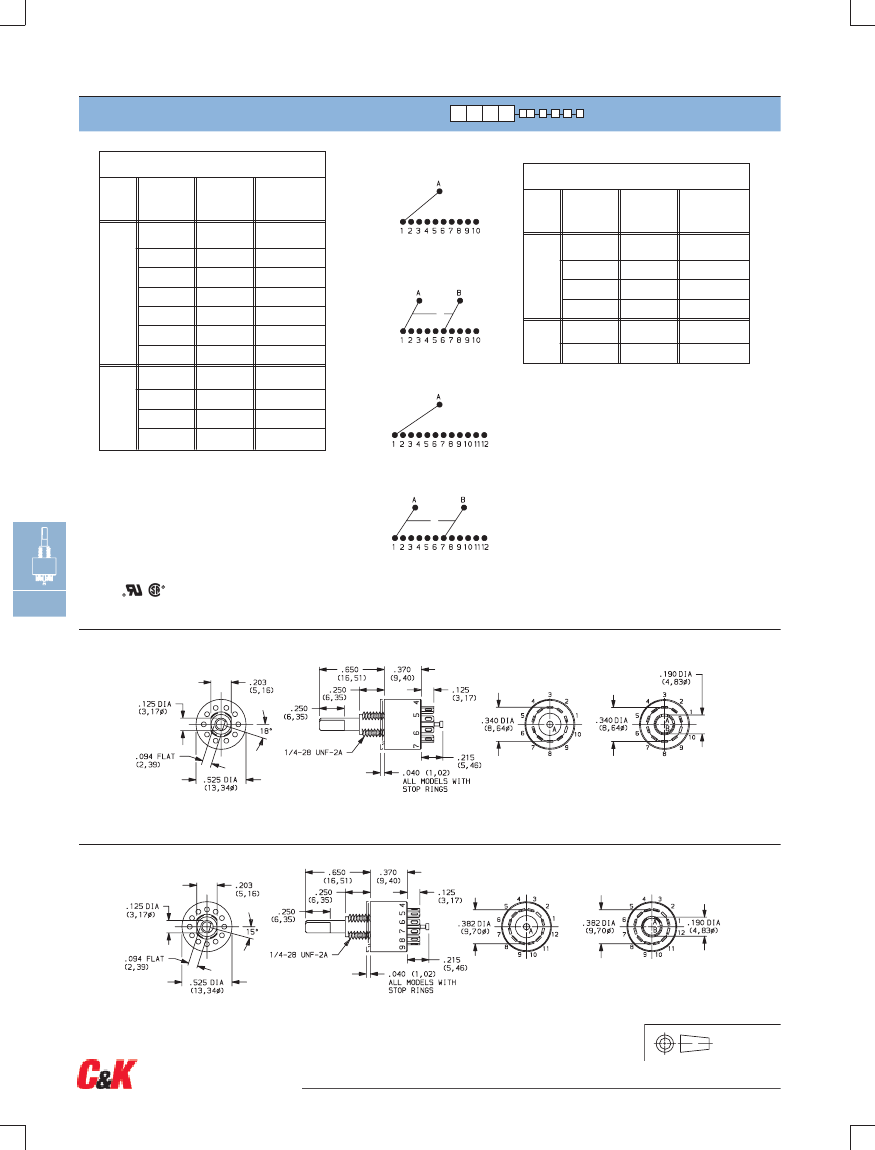

SWITCH FUNCTION
36º INDEXING
MODEL NO.
WITH STOP
PINS
MODEL NO.
WITH STOP
RINGS
SP MODELS 36º INDEXING
SCHEMATIC
30º INDEXING
MODEL NO.
WITH STOP
PINS
MODEL NO.
WITH STOP
RINGS
NO.
POLES
SWITCH
FUNCTION
10 Positions
No Stops
2 Positions
3 Positions
4 Positions
5 Positions
6 Positions
10 Positions
5 Positions
No Stops
3 Positions
SP MODELS 30º INDEXING
SCHEMATIC
DP MODELS 36º INDEXING
SCHEMATIC
NO.
POLES
SWITCH
FUNCTION
12 Positions
No Stops
3 Positions
7 Positions
12 Positions
6 Positions
No Stops
6 Positions
MA00
MA02
MA03
SP
ME00
—
—
MC00
SP
MG00
—
—
—
MC03
MC07
MC12
MD00
MA04
MA05
MA06
MA10
MB00
MB03
ME04
—
—
—
MH00
—
DP
MD06
MF00
DP
MB04
MB05
—
—
4 Positions
5 Positions
DP MODELS 30º INDEXING
SCHEMATIC
All models
with all options when ordered with S1-SB stainless steel actuator options.
L
Rotary
NOTE:
Number of positions or stops preset at factory (NOTE: MX00 models have full 360 rotation with no stops. Stop pins or stop rings supplied for user-selectable stops, see above).
All terminals present regardless of number of switch positions. Hardware is available separately, see section “Technical Data and Additional Hardware”.
SP, 36º Indexing
Actuator Shown In Pos. 1
DP, 36º Indexing
Terminal Numbers Marked
On Side Of Housing
Part number shown: MA00L1NZQD
SP, 30º Indexing
Actuator Shown In Pos. 1
DP, 30º Indexing
Terminal Numbers Marked
On Side Of Housing
Part number shown: MC00L1NZQD
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–14
www.ck-components.com
M Series
Half-inch Rotary Switches

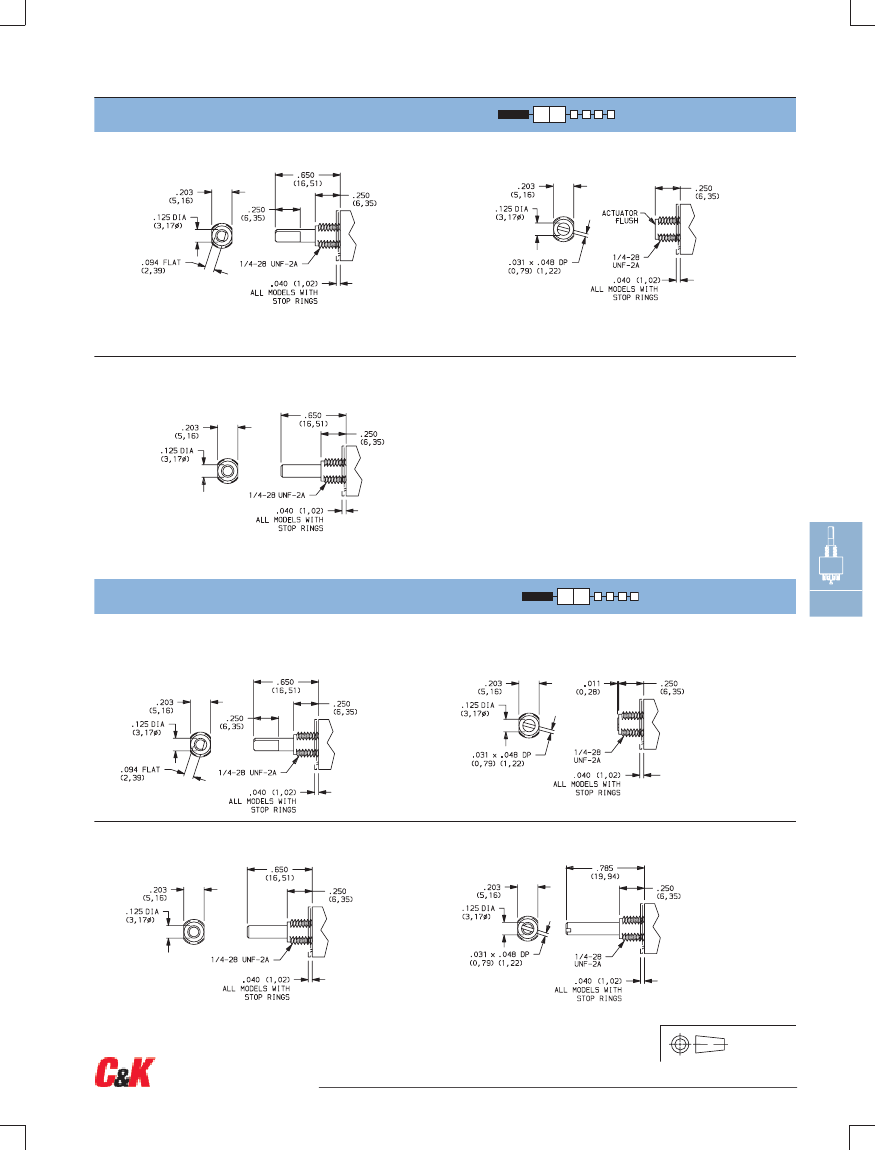

ACTUATOR (ZINC ALLOY)
L1
.650" LONG, FLATTED
L2
SCREWDRIVER SLOT, FLUSH
L3
.650" LONG, ROUND
All actuators shown in pos. 1
ACTUATOR (STAINLESS STEEL)
S1
.650" LONG, FLATTED
L
Rotary
S2
SCREWDRIVER SLOT, FLUSH
S3
.650" LONG, ROUND
S6
.785" LONG, SLOT
All actuators shown in pos. 1
All models UL/CSA when ordered with stainless steel actuators.
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–15
www.ck-components.com
M Series
Half-inch Rotary Switches
SHORTING/NON-SHORTING CONTACTS
N
NON-SHORTING CONTACTS
Break-before-make
TERMINATIONS
Z
SOLDER LUG
SP
DP
C
PC THRU-HOLE
SP
DP
PANEL MOUNTING
WITH FLATS
0.213
(5.41)
PC MOUNTING
36
º
INDEXING
SP
DP
WITHOUT FLATS
0.260 DIA
(6.59)
L
Rotary
0.260 DIA
(6.60)
SP
Hardware: All models, one mounting nut and lockwasher
supplied standard. MA00 thru MD00 models: two stop pins
and adhesive mylar washer supplied. ME00 thru MH00
models: two stop rings supplied. Hardware is available
separately, see section “Technical Data and Additional
Hardware”.
PC MOUNTING
30
º
INDEXING
DP
NOTE:
Q contact material standard. Terminal numbers marked on side of housing.
All terminals insert molded. All terminals present regardless of number of switch positions.
Actuators and schematics shown in pos. 1.
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
SILVER
1, 2
TERMINAL
PLATING
SILVER
2
GOLD
4
POWER
LOW LEVEL/DRY CIRCUIT
OR POWER
RATING
CARRY: 6 AMPS CONTINUOUS. SWITCH: 250 mA @ 125 V AC
or 28 V DC.
0.4 VA MAX. @ 20 V AC or DC MAX. or, CARRY: 6 AMPS
CONTINUOUS. SWITCH: 250 mA @ 125 V AC or 28 V DC.
Q
G
GOLD OVER
SILVER
3, 4
