ZMCHM9P0K Overview

Basic / Snap Action Switches SPDT Pin Plunger PC 0.2A 60VDC 0.88N

ZMCHM9P0K Parametric

Parameter NameAttribute value
Product CategoryBasic / Snap Action Switches
ManufacturerC&K Components
RoHSDetails
Contact FormSPDT
Switch FunctionON - (OFF), OFF - (ON)
ActuatorPlunger, Pin
Current Rating200 mA
Voltage Rating DC60 VDC
Operating Force0.9 N
Termination StyleSolder Pin
MountingPanel
PackagingBulk
IlluminatedNon-Illuminated
Factory Pack Quantity100
ZM Series
Subminiature Snap-acting Switches
Features/Benefits
Reliable snap-acting mechanism
Long electrical and mechanical life
Compact size—Ideal when space is limited
Various PCB terminals and actuators
RoHS compliant / compatible
Typical Applications
PCB detection switch
Communication devices
Testing equipment
Security/Alarm systems
Consumer electronics
UL61058-1
14
Specifications
CONTACT RATING: F7: 3A @ 125 VAC
M9: 0.2A @ 60 VDC.
ELECTRICAL LIFE: 10,000 Cycles. @ 3A
INSULATION RESISTANCE: 100 M ohm min.
DIELECTRIC STRENGTH: 1000 Vrms.
OPERATING TEMPERATURE: –30ºC to 85ºC.
OPERATING FORCE: CJ: 150 grams, CH: 90 grams.
* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @
20 V AC or DC max.
Materials
COVER: Nylon 6/6
ACTUATOR BUTTON: Nylon 6/6
CASE: Nylon 6/6
SPRING: SUS
MOVABLE BLADE: BeCu
MOVABLE CONTACT: Silver alloy (M9 option gold plated)
FIXED CONTACTS: Silver alloy (M9 option gold plated)
FIXED TERMINALS: Brass - Ag plated.
ACTUATOR (Leaf / Roller options): SUS
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
J
Snap-acting
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J-48 and J-49. For additional options not shown in catalog, consult Customer Service Center.
Series
ZM
SP, Mom.
Operating Force
CJ
150 grams
CH
90 grams
Electrical Rating
see chart below

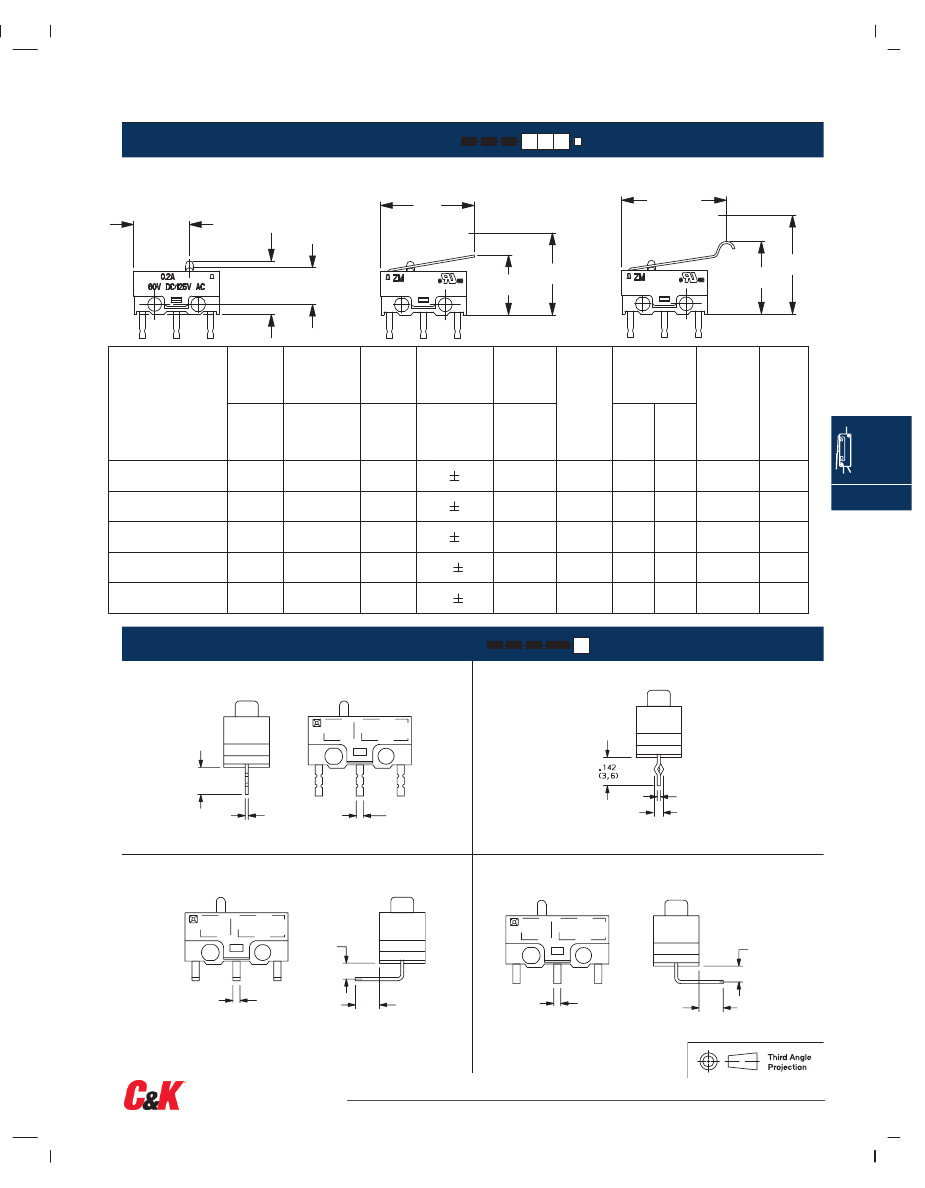

Actuator
P0
Pin plunger
L0
Leaf
L3
Leaf
T13
Simulated roller
T23
Simulated roller
Terminations
T
PC Thru-hole
L
Left-footed, PC Thru-hole
R
Right-footed, PC Thru-hole
K
PC Thru-hole with retention feature
Option
Code
F7
M9
UL
1054
3 A 125 V AC
0.1 A 48 V DC
0.2 A 60 V DC
0.1 A 125 V AC
UL
61058-1
3 A 125 V AC
3 A 30 V DC
0.1 A 48 V DC
0.2 A 60 V DC
0.1 A 125 V AC
14
3 A 125 V AC
0.1 A 48 V DC
0.2 A 60 V DC
0.1 A 125 V AC

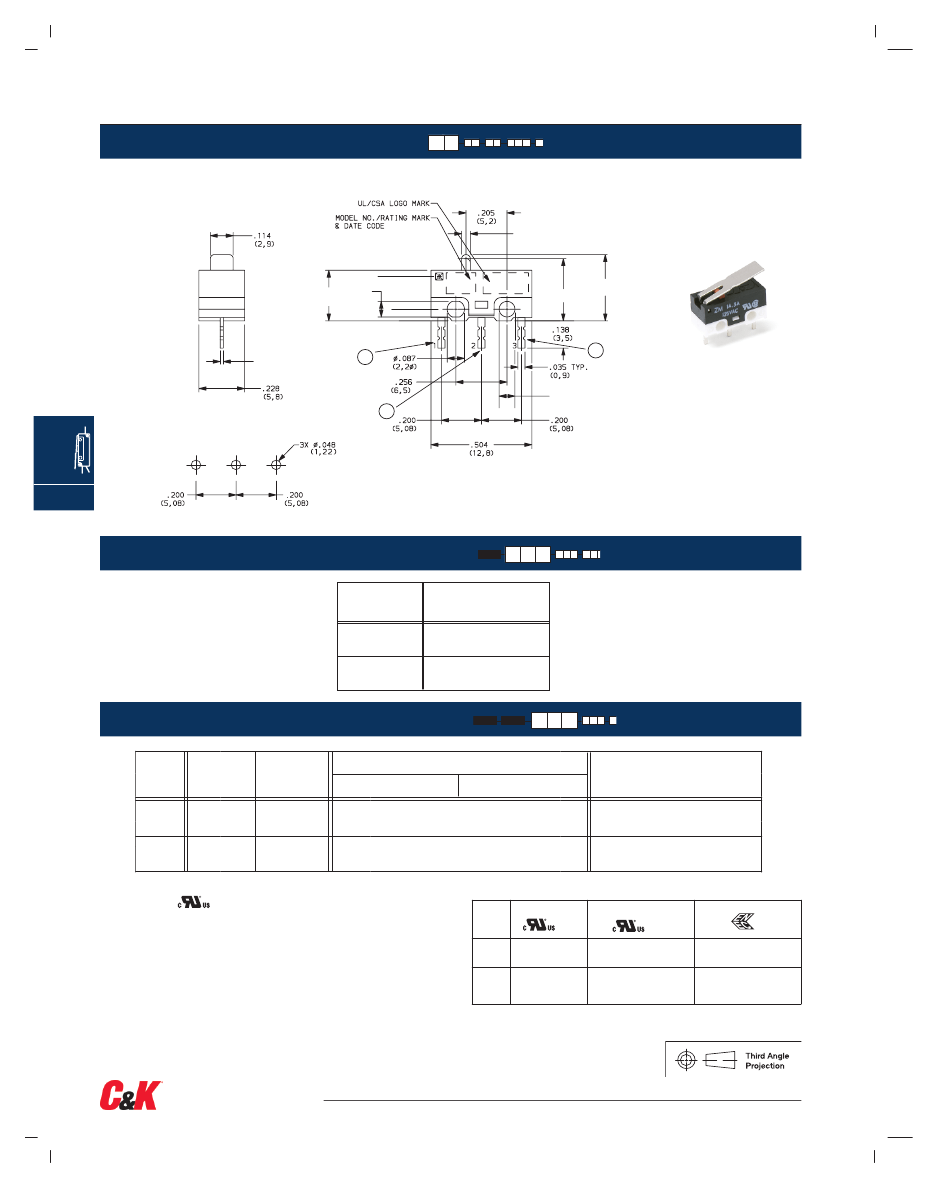

Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
J–47
www.ck-components.com
