2NT1-72 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 2NT1-72

2NT1-72: DescriptionSwitch Hardware SILICON TOGGLE SWITCH BOOT BLACK; CategoryMechanical and electronic products switch; File Size215KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric View All

2NT1-72 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2NT1-72	-	-	View	Buy Now

2NT1-72 Overview

Switch Hardware SILICON TOGGLE SWITCH BOOT BLACK

2NT1-72 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	22.61 mm
body height	34.29 mm
Body length or diameter	33.53 mm
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	2NT1-72
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

FO-55111-B

HONEYWELL

PART NUMBER

.076

.008 WIDE KEYWAY

CATALOG

LISTING

REV

CIRCUIT MADE WITH

TOGGLE LEVER IN

KEYWAY

CENTER

SIDE

(1-2)

OFF

NONE

OFF

NONE

MOM OFF

NONE

MOM ON

OFF

MOM ON

NONE

MOM ON

OFF

MOM ON

NONE

MOM ON

OFF

DOCUMENT

CHANGED BY

CHECK

0123511

28AUG15

CMH

.427

15 30'

3 30'

.240

PANEL

SEAL

.29

TOTAL TRAVEL

.67

STANDARD LEVER STYLE SHOWN

15/32-32 UNS-2A THREAD TO WITHIN

.060 OF SHOULDER

61NT887-1

61NT887-2

61NT887-3

61NT887-21

61NT887-31

61NT887-4

61NT887-5

61NT887-6

61NT887-7

61NT887-8

61NT887-51

61NT887-61

OPPOSITE

KEYWAY

(2-3)

OFF

MOM ON

NONE

ELECTRICAL DATA

L191 15A 125, 250, 277 VAC

1/2HP 125 VAC

1HP 250, 277 VAC

5A 125 VAC "L"

L192 10A 125, 250, 277 VAC

1/4HP 125 VAC

1/2HP 250, 277 VAC

3A 125 VAC "L"

COLOR IDENT

LEVER COLOR CODE

COLOR

WHITE

BLACK

BLUE

RED

.49

2X R3.00

.375

STYLE A

LEVER STYLE

STYLE B

.140

(.328)

.63

.88

STYLE C

.29

.14

.57

1.16

.91

SEALED TO PREVENT ENTRANCE OF

LIQUIDS OR DUST

ORANGE

YELLOW

GRAY

GREEN

1.15

1.00

.67

.78

.73

LT BLUE

.250

15/32-32 UNS

THREAD

.05

.110

.250

1.12

.19

.75

.38

3X 6-32 UNC-2 X (.260)

BINDING HEAD TERMNIAL

SCREW AND LOCKWASHER

(SEMS)

.60

(.018)

LOCKWASHER

.392

.078

2X HEX NUT

.56

.040

LOCKING RING

.72

.62

NOTES

1 - SWITCHES ARE CAPABLE OF WITHSTANDING A TEMPERATURE

OF 160 $ F CONTINUOUSLY AT FULL RATED LOAD

2 - MICRO SWITCH CATALOG LISTING MARKED ON SIDE OF SWITCH

FURNISHED UNASSEMBLED

APPLIES ONLY TO "ON" AND "MOMENTARY ON" POSITIONS

IF NON STANDARD LEVER IS DESIRED, SUFFIX MUST BE ADDED

TO DENOTE LEVER STYLE AND COLOR

(EXAMPLE: 61NT887-3-B02)

6 "NH" SUFFIX MUST BE ADDED TO SPECIFY NO HARDWARE

(EXAMPLE: 61NT887-1-B02-NH)

7 - GOLD PLATED CONTACTS

TOLERANCES UNLESS NOTED:

ONE PLACE

TWO PLACE

FOUR PLACE

ANGLES

THREE PLACE

NO PLACE

.XX

.XXXX

.XXX

DESIGN UNITS:

INCH

.030

DRAWN

CHECK

.015

.005

TSG

09 MAR 06

THIS DRAWING COVERS A PROPRIETARY ITEM

AND IS THE PROPERTY OF HONEYWELL.

THIS DRAWING IS NOT TO BE COPIED OR USED

WITHOUT THE PERMISSION OF HONEYWELL.

INTERPRET PER

ANSI Y14.5M-1982

OTHER HONEYWELL ENGINEERING

STANDARDS MAY APPLY

Pro/ENGINEER

TITLE

TYPE

SWITCH, TOGGLE

DRAWING NAME

SIZE

SCALE

THIRD ANGLE PROJECTION

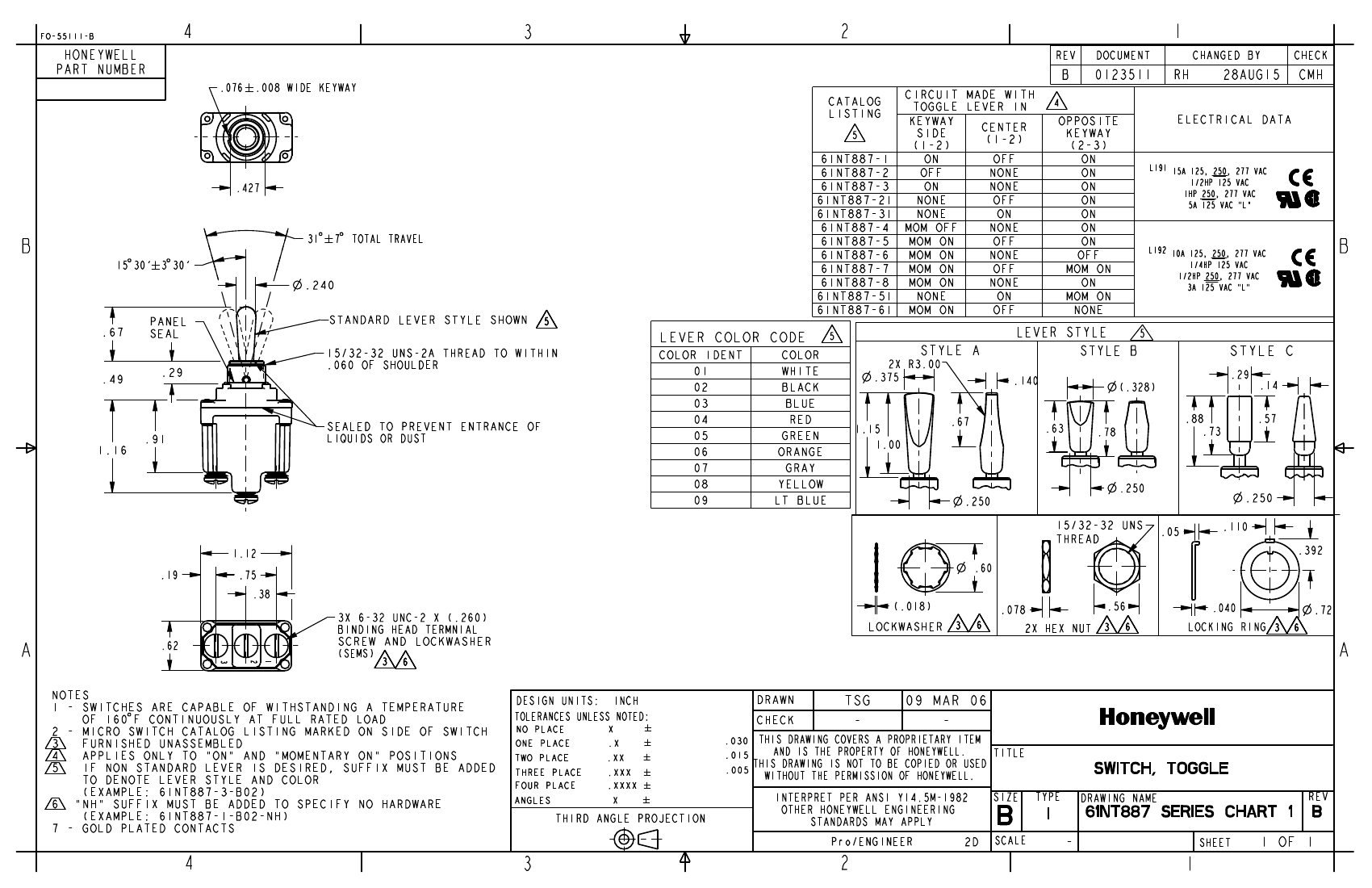

61NT887 SERIES CHART 1

REV

SHEET

OF 1
