RDI Series

Residential Door Interlock Switch

DESCRIPTION

Honeywell Relialign™ RDI Series Residential Door Interlock

switches are electromechanical devices designed for use in

residential swing door applications, specifically dumbwaiters,

lifts for the mobility impaired and swing-door elevators in the

USA. In Canada, the RDI is designed for use in residential

swing door applications, specifically elevators and

dumbwaiters but is not designed for use in lifts for the mobility

impaired. The interlock holds the door in place and prevents it

from being opened in potentially unsafe conditions (e.g. the

elevator/lift car is not present at the door). A number of design

features contribute to increase safety, reduce nuisance

stoppages and call-backs, and contribute to simplified wiring

and installation.

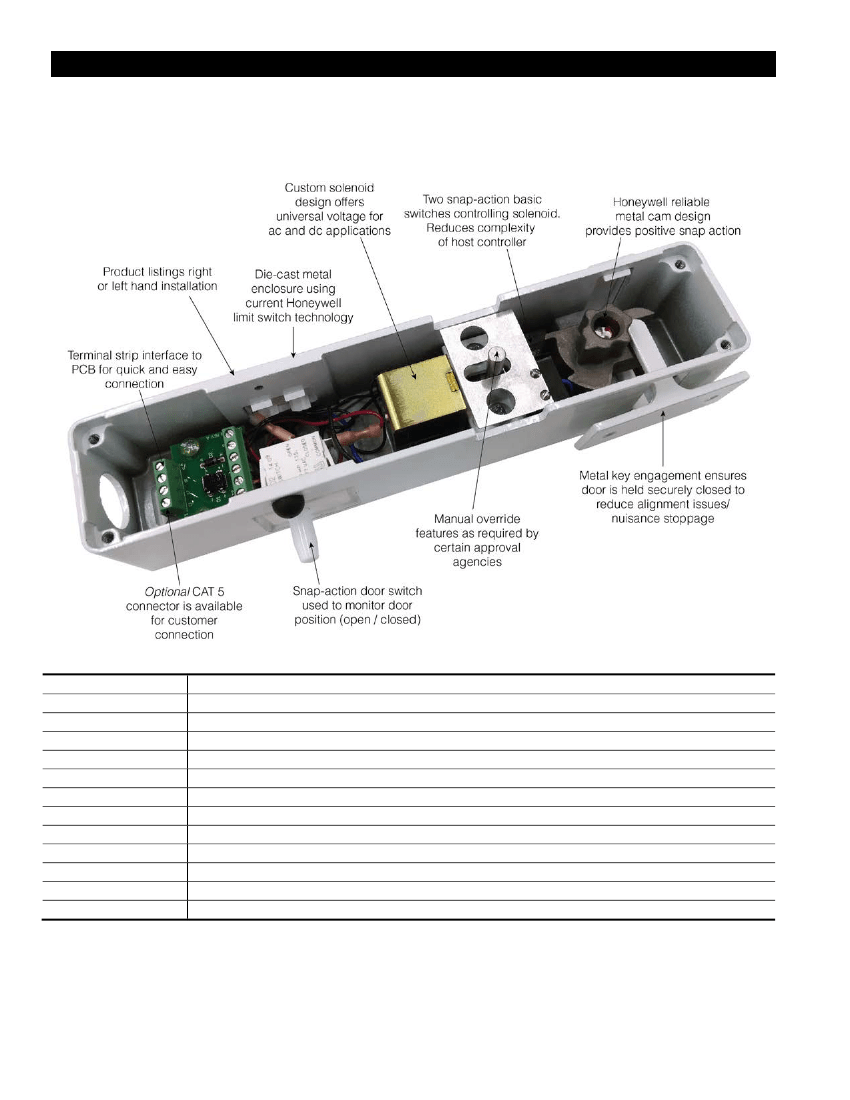

Featuring a custom internal solenoid control, the RDI may

reduce complexity of the host controller, reduce power

consumption for a “greener” product, extend solenoid life and

reduce solenoid “time outs,” reducing customer aggravation.

Two Honeywell MICRO SWITCH™ switches are used to

indicate door closure, providing an extra level of reliability.

Reliability and smooth operations are also enhanced by use of

a metal key, that is less susceptable to bending and breakage.

The lack of open or exposed contacts minimizes the possibility

of owners making manual adjustments. Finally, the

engagement of the key initiates electrical contact.

The snap-action cam mechanism requires less adjustment set-

up time and reduces door movement that can cause nuisance

shutdown. A Cat 5 connection option is available, simplifying

installation. This door interlock is configurable and available in

left- and right-hand versions, allowing for simplified

customization. It is designed to be easy for the OEM to retrofit

into their current design.

FEATURES

•

Compliant to ASME A17.1 and UL 104

•

Manual override for easy actuation without user hazard

•

Two separate mechanical actions to indicate door closure

•

Available with white or architectural bronze metal housings

•

Metal key

•

Internal solenoid control

•

No open or exposed contacts

•

Key engagement minimizes nuisance stoppage

•

Door closure retention cam to hold door with minimal key-

to-interlock play

•

Cat 5 connection available

•

Configurable product platform

•

Universal voltage for ac and dc applications

•

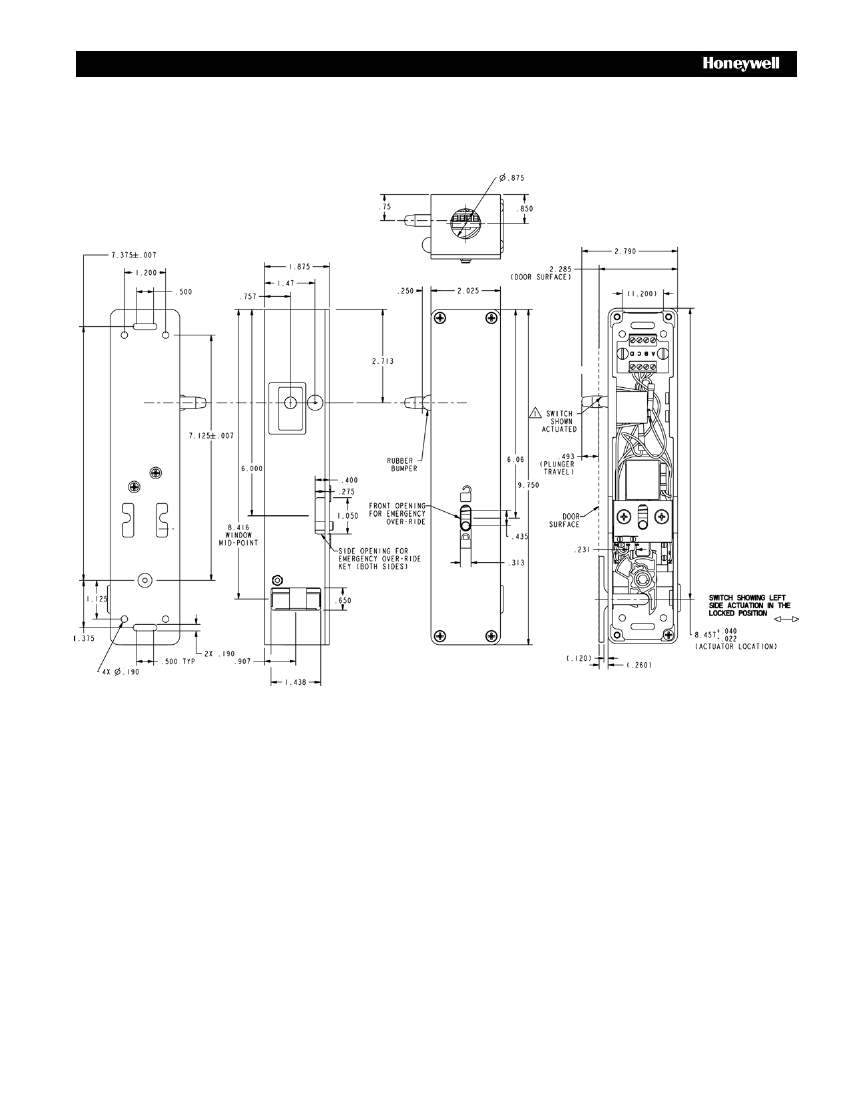

51,44 mm W x 247,65 mm H x 49,23 mm D

[2.025 in W x 9.75 in H x 1.938 in D]

POTENTIAL APPLICATIONS

•

In the USA: residential swing door applications, specifically

dumbwaiters, lifts for the mobility impaired, and swing-door

elevators

•

In Canada: residential swing door applications, specifically

elevators and dumbwaiters

BENEFITS

•

Meets required safety codes

•

Reduces potential for call-backs

•

Reliable performance and multiple design features to

minimize nuisance stoppage of applications

•

Simplified wiring and installation

•

Reduced OEM design and manufacturing costs

•

Stronger OEM sales message: increased safety, reduced

owner aggravation, reduced power consumption

•

Honeywell brand quality
