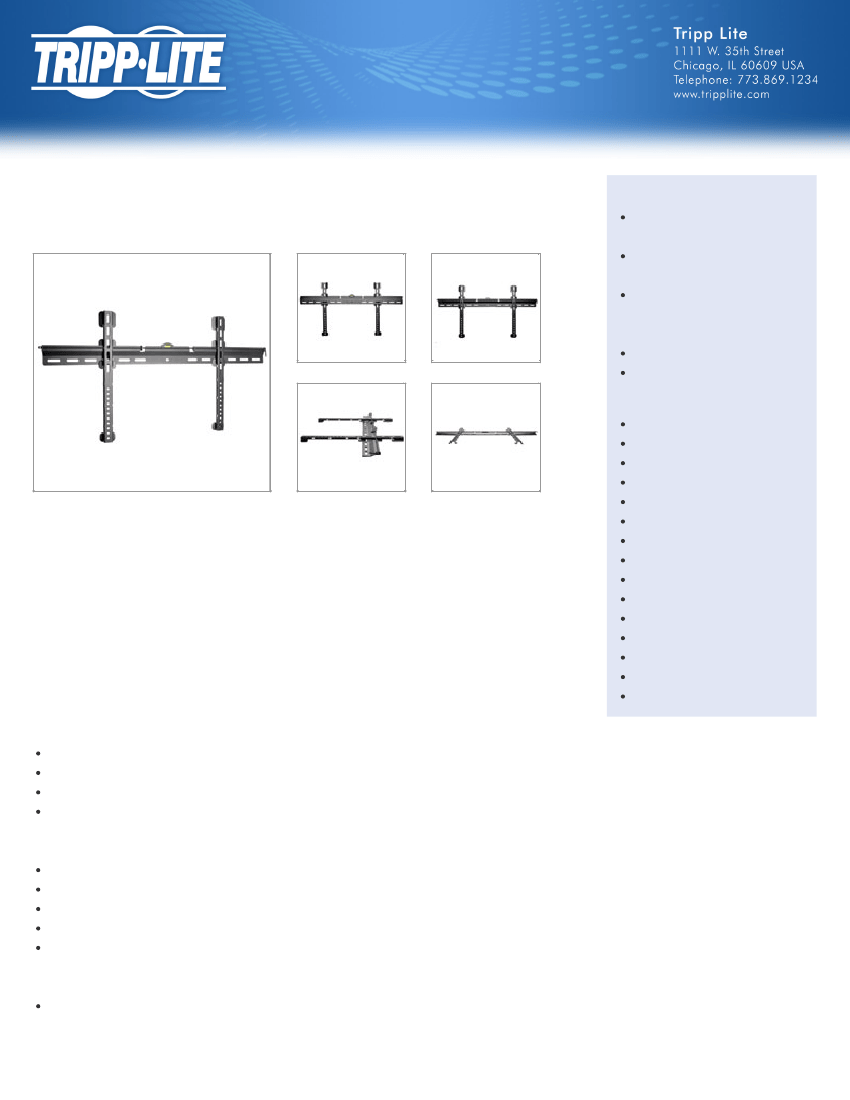

Fixed Wall Mount for 37" to 70" TVs and Monitors
MODEL NUMBER:
DWF3770L
Highlights
Fits most flat-panel displays from
37 to 70 in.
Hangs out of sight for a sleek,
professional appearance
Adjustable mounting rails
compensate for off-center wall
studs
5-year warranty
Supports up to 143 lb.
Package Includes
Wall plate
(2) Adapter brackets
Safety bar
(4) M5 x 14 screws
(4) M6 x 14 screws
Description
The VESA-compliant DWF3770L Fixed Wall Mount allows you to mount your flat-panel television, monitor or
other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits
most flat-panel displays from 37 to 70 inches. The low-profile mount is concealed behind the display to give a
sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to
compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal
frame with scratch-resistant powder-coated finish supports up to 143 pounds. Mounting hardware included.
Conforms to VESA-compliant displays with any of the following mounting hole patterns: 300 x 300 mm, 400 x
200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
(4) M6 x 30 screws
(4) M8 x 20 screws
(4) M8 x 30 screws
(4) Washers
(8) Small spacers
(4) Big spacers
(4) Anchor bolts
(4) Concrete anchors
(4) D6 washers
Owner’s manual
Features
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included
Durable Metal Construction
Supports up to 143 lb.
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
VESA Compliance
Supports the following VESA mounting hole patterns: 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm
1/2
Specifications
PHYSICAL
Mounting Location
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
Screen Size Compatibility (in.)
Screen Size Compatibility (cm)
VESA Pattern (mm)
Motion
Min/Max Arm Extension (in.)
Min/Max Arm Extension (cm)
Distance from Wall (in.)
Distance from Wall (cm)
Maximum Weight Capacity (lbs.)
Maximum Weight Capacity (kg)
Distance from Wall (mm)
Wall
17.32 x 34.20 x .76
44 x 86.86 x 1.93
3.4
1.54
Black
37 - 70
81.28 - 177.80
300x300; 400x200; 400x400; 600x400; 800x400
Fixed
N/A
N/A
1.18
3
143
65
30
FEATURES & SPECIFICATIONS
Tools Necessary
Cord Management
Yes
No
WARRANTY
Product Warranty Period (Worldwide)
5-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
2/2
