SERIES LS SWITCHES
SPECIFICATIONS
NAVIGATION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
MOUNTING
SCHEMATIC
KEYLOCK
SWITCHES
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
CIRCUIT
A = SPDT
B = SPST NC
C = SPST NO
TOGGLE
SWITCHES
PUSHBUTTON
SWITCHES
TACT
SWITCHES

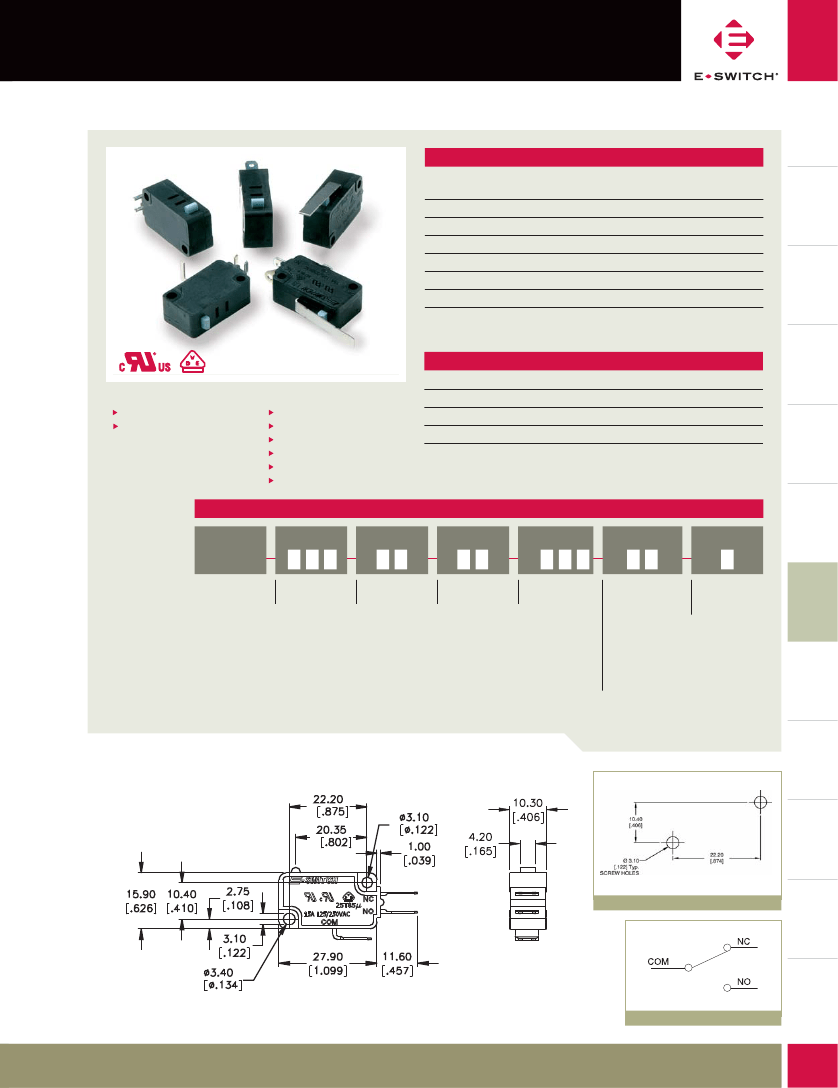

SNAP ACTION SWITCHES
Contact Rating:
Life Expectancy:
Mechanical Life:
Insulation Resistance:
Dielectric Strength:
Operating Force:
Gold .4VA max. @ 20 VDC or VAC Max.
15 Amps @ 125/250 VAC-UL, CUL, VDE
50,000 cycles minimum
1,000,000 cycles typical
100 MΩ min.
1,500 VAC for 60 seconds
See Chart
Operating Temperature: -25° C to 85° C (std)
MATERIALS
Switch Housing:
High Temperature PBT (UL94 V0)
High Temperature PBT (UL94 V0)
Silver (std) or Gold
Copper Alloy
FEATURES & BENEFITS
Available in gold & 15amp versions
Wide variety of actuator, operating
force & termination options
APPLICATIONS/MARKETS
Appliance
Timing controls
Vending machines
Gaming
Industrial controls
Power tools
Actuator Button:
Contacts:
Terminals:
www.e-switch.com
▲
▲
▲
▲
▲
▲
HOW TO ORDER
SERIES
OPERATING
TEMP.
CURRENT
RATING
ACTUATOR
OPERATING
FORCE
TERMINATION
LS
085 = 85C
R1 = Gold
15 = 15A
See Chart
F
See Chart
S1 = Solder Lug
C1 = 0.187”
Quick Connect
C2 = 0.250”
Quick Connect
V1 = Right Angle
PCB Pin
V2 = Left Angle
PCB Pin
Example Ordering Number
LS_ 085_ 15_ 03_ F040_ C2_ A
Specifications subject to change without notice.
info
@
e-switch.com
201
SERIES LS SWITCHES
TACT
SWITCHES
SNAP ACTION SWITCHES

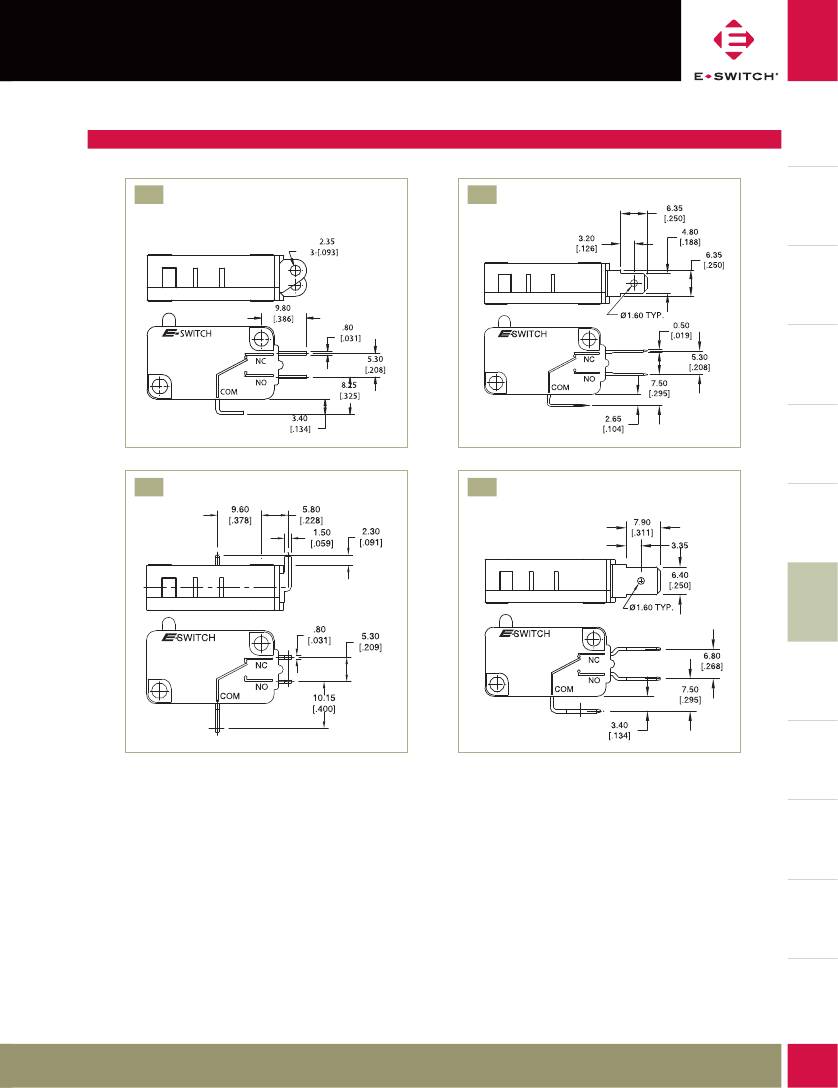

ACTUATOR OPTIONS
00
01
TOGGLE
SWITCHES
PUSHBUTTON
SWITCHES
NAVIGATION
SWITCHES
02
03
SLIDE
SWITCHES
ROCKER
SWITCHES
04
SNAP-ACTION
SWITCHES
05
KEYLOCK
SWITCHES
DIP
SWITCHES
06

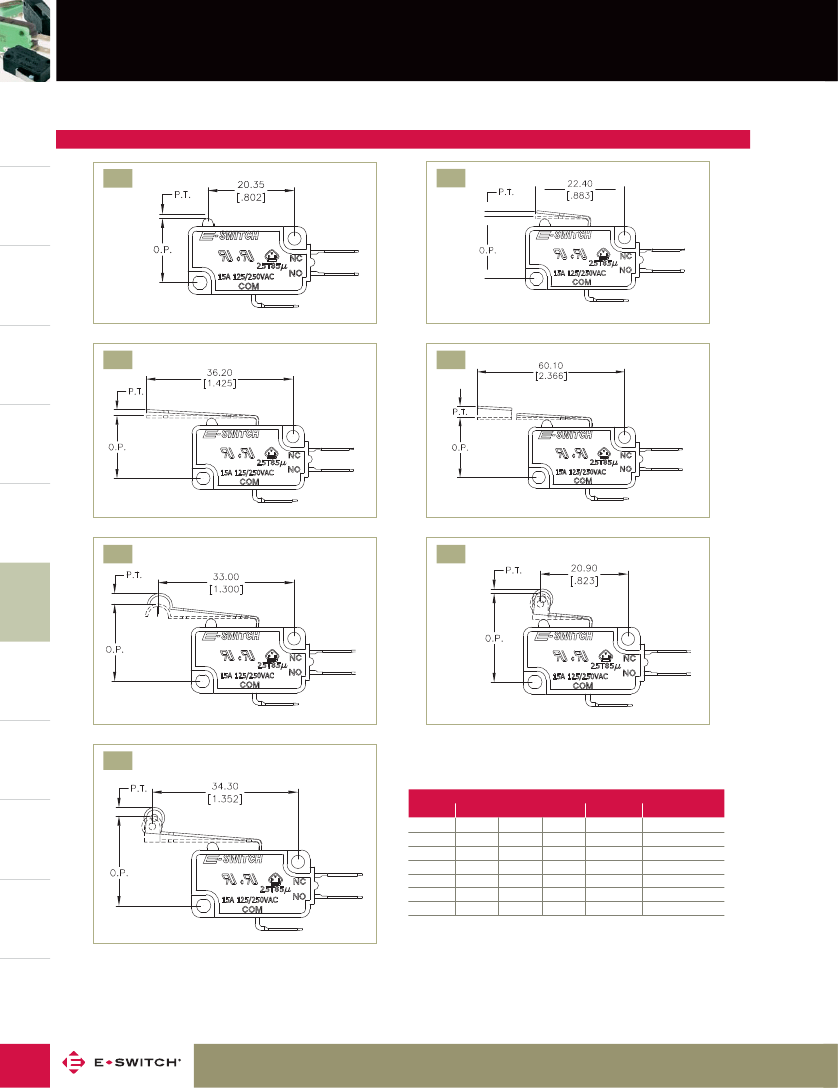

ACTUATOR AND OPERATING FORCE CHART
Actuation/Return Force
Pre-Travel Operating Position
100+/-30 160+/-40 250+/-50
2.0 max
14.7+/-0.5
100+/-30 160+/-40 250+/-50
2.0 max
15.3+/-0.5
45+/-20
75+/-25
120+/-40
4.1 max
15.5+/-0.8
25+/-10
40+/-15
60+/-25
8.5 max
15.3+/-2.0
50+/-20
85+/-30
140+/-40
5.2 max
19.0+/-1.5
100+/-30 160+/-40 250+/-50
2.7 max
20.7+/-0.8
45+/-15
75+/-25
120+/-40
5.5 max
20.7+/-1.5
DETECTOR
SWITCHES
Actuator
00
01
02
03
04
05
06
ROTARY
SWITCHES
PT= Pretravel OP= Operating Point OT= Over Travel
CAP
OPTIONS
202
Phone: 800-867-2717
Fax: 763-531-8235
