383-K2300-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> 383-K2300-1

383-K2300-1: DescriptionPCBs u0026 Breadboards BRD. BOARD W/DSUB; CategoryTools and equipment; File Size74KB，1 Pages; ManufacturerPSP (Mouser Electronics)

Download Datasheet Parametric View All

383-K2300-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	383-K2300-1	-	-	View	Buy Now

383-K2300-1 Overview

PCBs u0026 Breadboards BRD. BOARD W/DSUB

383-K2300-1 Parametric

Parameter Name	Attribute value
Product Category	PCBs & Breadboards
Manufacturer	PSP (Mouser Electronics)
RoHS	Details
Product	Prototyping Boards
Type	Surface Mount
Description/Function	Prototype board
Length	230.12 mm
Width	255.02 mm
Contact Material	Polymer
Height	19.99 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

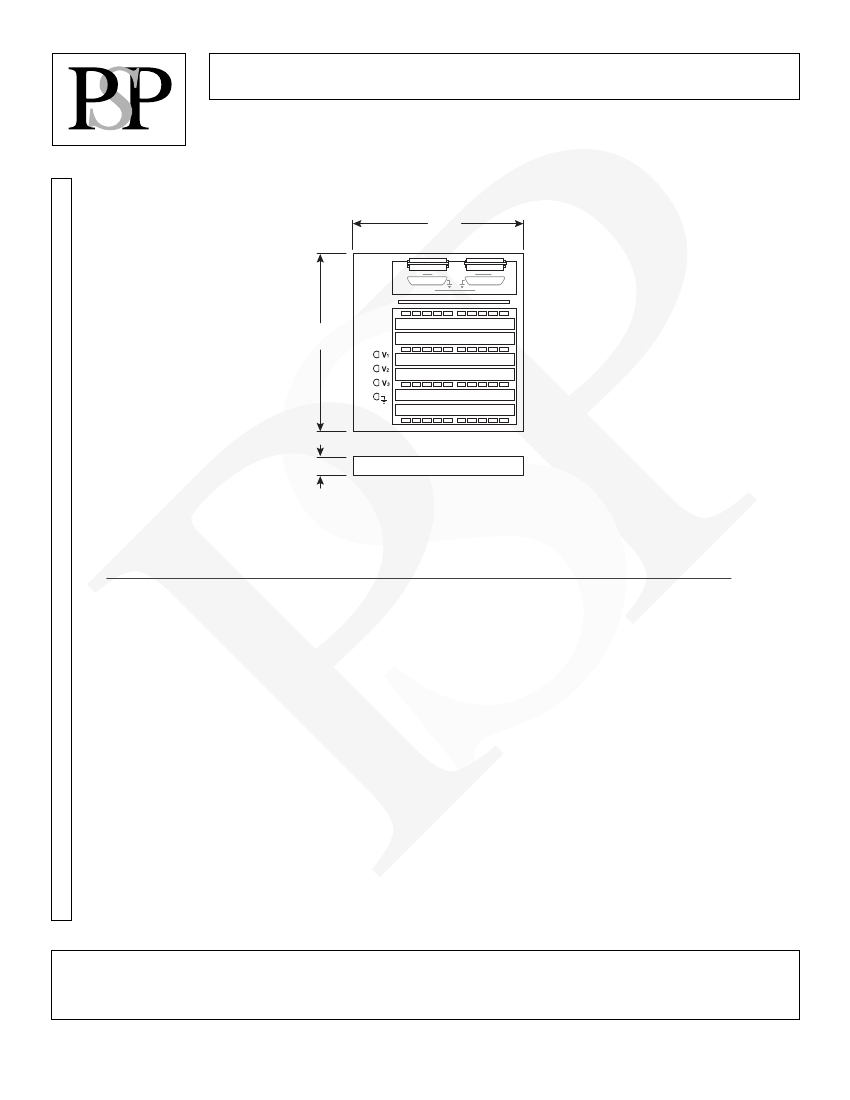

Proto-Type Board

PSP-110002

9.06

10.04

.787

Dimensions: In.

Specifications:

Type: UIB-34 universal interface breadboard

External body & back plate: ABS polymer

Internal contact terminal: silver alloy and nickel

Resistance: <10mΩ (ø0.6mm lead @ 1KHz)

Capacitance: <10pF (ø0.6mm lead @ 1KHz)

Insulation: >10TΩ (500VDC for 1 minute)

Hi-Pot test: 1500VDC for 1 minute

Breakdown current: 30mA

Contact current: 3A (ø0.6mm lead)

Wire size acceptability: ø0.3mm ~ 0.8mm

Warning: do not use high voltage (AC>50V, DC>75V)

Tie point: 5 point x 128 row (640) x 3 pcs. (base socket);

5 point x 20 row (100) x 4 pcs. (bus strip); 2320 total

•

Weight: 600gm

•

Height with UC-02: 1.18”

•

Accessories: 1 edge plate (EP-3), 1 universal connector,

& 4 bind posts

Updated: 5-11-05

•

383-K2300-1

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
