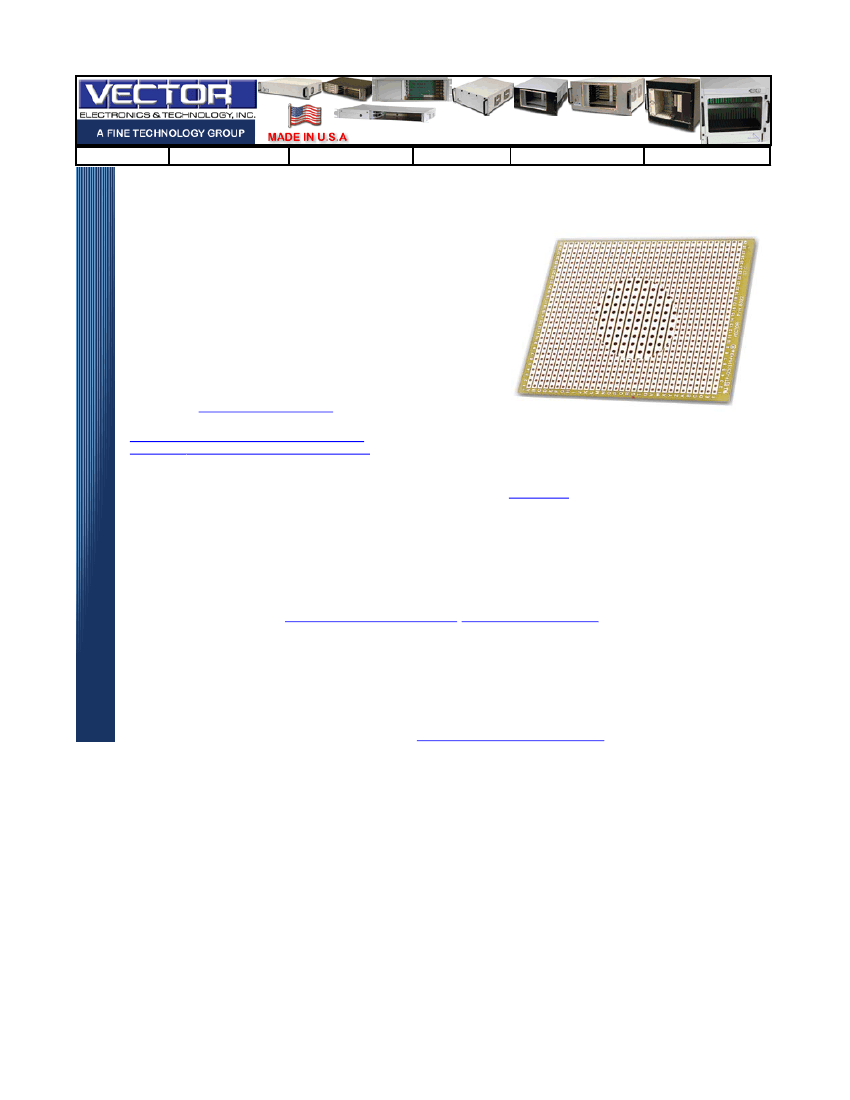

VECTORBORD
®
CIRCBORD
TM
....Part No. :
8022
Description :
Single sided board, pattern one side, holes not plated thru
Board dimensions : 3.00" X 3.50" X 0.062" Thick
(76mm X 88mm x 1.57mm)
32 continuous tracks with 29 holes per track..
Unplated thru holes diameter 0.042" on 0.100" grid.
Solder coated pattern on one side of board.
Ideal for common busses, signal line running longer distances, for hard
wire of test circuits or discrete components. Tracks run close to board
edges.
Large selection of pins & terminals for 0.042" diameter holes.
Layout paper
.......... Layout Paper (PDF)
Also available in single & double sided version :
P/N : 8019 (3.94" X 6.3"), Double sided version
P/N : 8019-1 (3.94" X 6.3"), Single sided version
0.042" Dia. Holes on 0.100" Grid
Circuit Pattern :
Contacts :
16 Pin DIP Capacity :
Hole Diameter :
Grid :
Dimension { H, W, T } :
Material :
Wire-Wrap Terminals :
Wire-Wrap Socket Pins :
NEMA Grade :
UL Flammability Class :
32 Tracks { Columns }, 29 Holes per Tracks,
" P " pattern
on one side
N/A
N/A
0.042" { 1.0668 mm }
0.100" x 0.100" { 2.54mm X 2.54mm }
3.00" X 3.50" X 0.062" { 76 mm x 88 mm x 1.5748 mm }
FR4, 1 oz Copper, 1 Side { MIL - P13949 Type GF }
(Also available in FR-4, Hi-Tg, 180
0
C Material, P/N : 8022-180)
T44, T46, T49, T68
R32
FR4
94V - 0
email us your requirements
:
inquire@vectorelect.com
11115 Vanowen St., North Hollywood, CA 91605, USA
Tel.: ( 818 ) 985 8208, ( 800 ) 423 5659; Fax : ( 818 ) 985 7708
only
Circbord®, Vectorbord® and VectorPak® are registered trademarks of Vector Electronics & Technology, Inc.
CompactPCI® is a registered trademark of PCIMG. © 2001 Vector Electronics & Technology, Inc. - All Rights Reserved
