SP3UT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> SP3UT

SP3UT: DescriptionPCBs u0026 Breadboards SMTpads-3U-Thin 2 sided; CategoryTools and equipment; File Size342KB，2 Pages; ManufacturerBusBoard

Download Datasheet Parametric View All

SP3UT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SP3UT	-	-	View	Buy Now

SP3UT Overview

PCBs u0026 Breadboards SMTpads-3U-Thin 2 sided

SP3UT Parametric

Parameter Name	Attribute value
Product Category	PCBs & Breadboards
Manufacturer	BusBoard
RoHS	Details
Product	Breadboards
Description/Function	SMD prototype PCB, thin with ground plane
Length	100 mm
Width	160 mm
Contact Material	FR4 Epoxy Glass
Factory Pack Quantity	1

Preview

Download Datasheet

View All

SMTpads-3U-Thin

- surface mount proto PCB

Square pad grid for 0402, 0603, 0805, 1206, and other SMT parts with a ground plane.

Features

A grid of 42 mil square pads on 50 mil centers

allows SMT components of various sizes and

pitches to be mounted. Larger components can

span pads.

SOIC (50 mil pitch) and DIP (100 mil pitch)

integated circuits can be soldered directly to the

pads without adapters.

Solid ground plane on reverse side provides

easy ground connections and helps achieve low

noise in circuits.

Unplated holes to the ground plane are spaced 4

pads apart for easy connection to the ground

plane. Just insert a wire and solder both sides.

Order the PTH option for plated holes.

Lead free

etched copper PCB with an anti-

tarnish coating to preserve solderability.

Bridge pads or solder wires on pads to create

traces wherever they are needed.

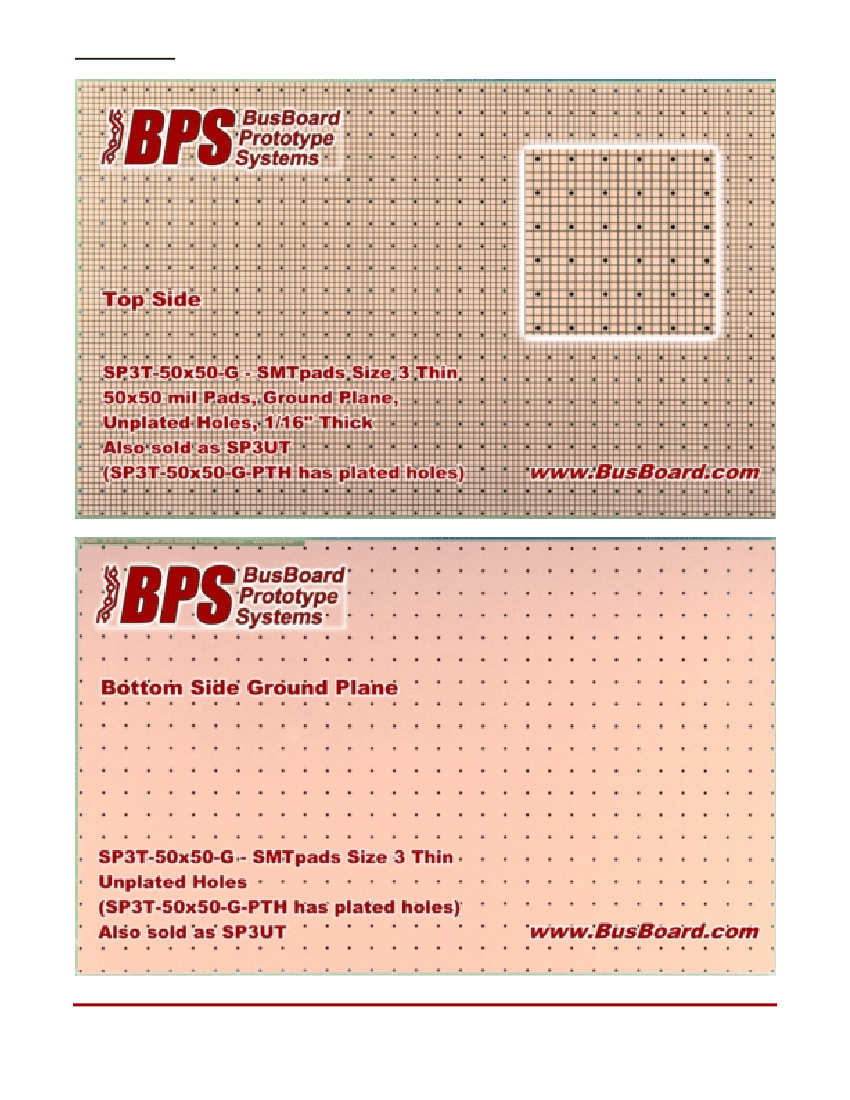

Board Pattern

0402

0603

1/32” thin PCB is easy to cut into smaller

pieces.

Standard single height (3U) Eurocard/VME

size. Many enclosures and card cages available.

Specifications

High quality etched FR4 glass-epoxy circuit

board. 1oz/ft

copper.

Lead free copper PCB with an antitarnish

coating for easy soldering. RoHS compliant.

3.9 x 6.3 x 1/32" (100 x 160 x 0.8mm).

0.031" (0.79mm) holes for connections to

ground plane.

Order Part# SP3T-50x50-G

(also sold as SP3UT)

SP3T-50x50-G-PTH (plated holes option)

0402

0805

BusBoard Prototype Systems

Built for designers

www.BusBoard.com

sales@busboard.com

BPS-MAR-(SP3T-50x50-G)-001 Rev 4.00

0805

0603

0805

0402

0603

0805

SOIC

1206

SOT23
