Features
• Portable ESD worksurface that can also be used to
transport populated, unsoldered circuit boards
• Static dissipative foam (RTT 10E6 - 10E8 ohms) laminated to
Protektive Pak
®
impregnated corrugated material for greater
durability
• Foam is shuntable, component leads can be kept at equipotential
and more stable when moved
• Includes 10mm (3/8”) grounding snap
• Static dissipative material 10E6 - 10E8 ohms
• Buried shielding layer minimizes sloughing and rub-off contamination
• Made in America
L
-----------------------------------------------
SPECIFICATIONS FOR CORRUGATED MATERIAL:
Properties
Electrostatic Decay
Surface Resistance
High-Voltage Discharge Resistance
Static Shielding
Charged Device Model (CDM) Safety
Corrosivity
Sloughing Test
Recyclability
Biodegradability
Volume Conductivity
Shelf Life
Typical Values
0.01 seconds at 72°F and 11.8% R.H.
10E6 - 10E8 ohms/sq. after 11 days at 68°F and 12% R.H.
for surface. 10E3 - 10E4 ohms/sq. for buried shielding layer
Failure rate 0/5 (no oxide damage in five consecutive tests)
99.9% attenuation at 10kV; 99.6% attenuation at 30kV
RTG >10E7 ohms at 86% R.H. or less
Contains 1-3 ppm reducible sulfur
Negligible surface damage at 10 cycles and <5% of surface
damage at 200 cycles in Taber Abrasion Test.
No conductive particles abrased from surface
Complete recyclability of package
Biodegradation in or on moist soil
Conductivity from wall to wall as well as across surface
to assure permanence of the antistatic property
Indefinite
---
---
---
W
---
---
---
-
Test Procedures/Method
FED-STD-101, Method 4046
ASTM D257
Rockwell International Test Report of December 20, 1991
EIA 541, appendix E, capacitive probe test
Rockwell International Test Report of December 20, 1991
FED-STD-101, Method 3005 for reducible sulfur
ASTM D4060 at 70 rpm with CS-17 abrasive-coated
wheels and 1000 grams load
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
*Colour and texture may vary between lots and mills
SPECIFICATIONS FOR FOAM:
Property
Density
Surface Resistivity
Corrosivity
Water Extract
Total Chlorine
Recommended Operating
Temperature Range
Tear Strength
Tensile Strength
Test Method
ASTM D3575-91
EOS/ESD DS111-1993
TS 1021BA (UK MOD)
TS 1021BA (UK MOD)
TS 1021BA (UK MOD)
Internal
ASTM D3575-91
ASTM D2575-91
Results
1.9 lb/ft
3
10E7 - 10E9 ohms/sq
Pass
Pass
Pass
+200°F to -95°F
14 lbf/in
44 psi
Item No.
37800
39852
37801
39854
Size - L x W
12 x 18
12 x 18
18 x 24
18 x 24
Snap
Male
Female
Male
Female
Made in America

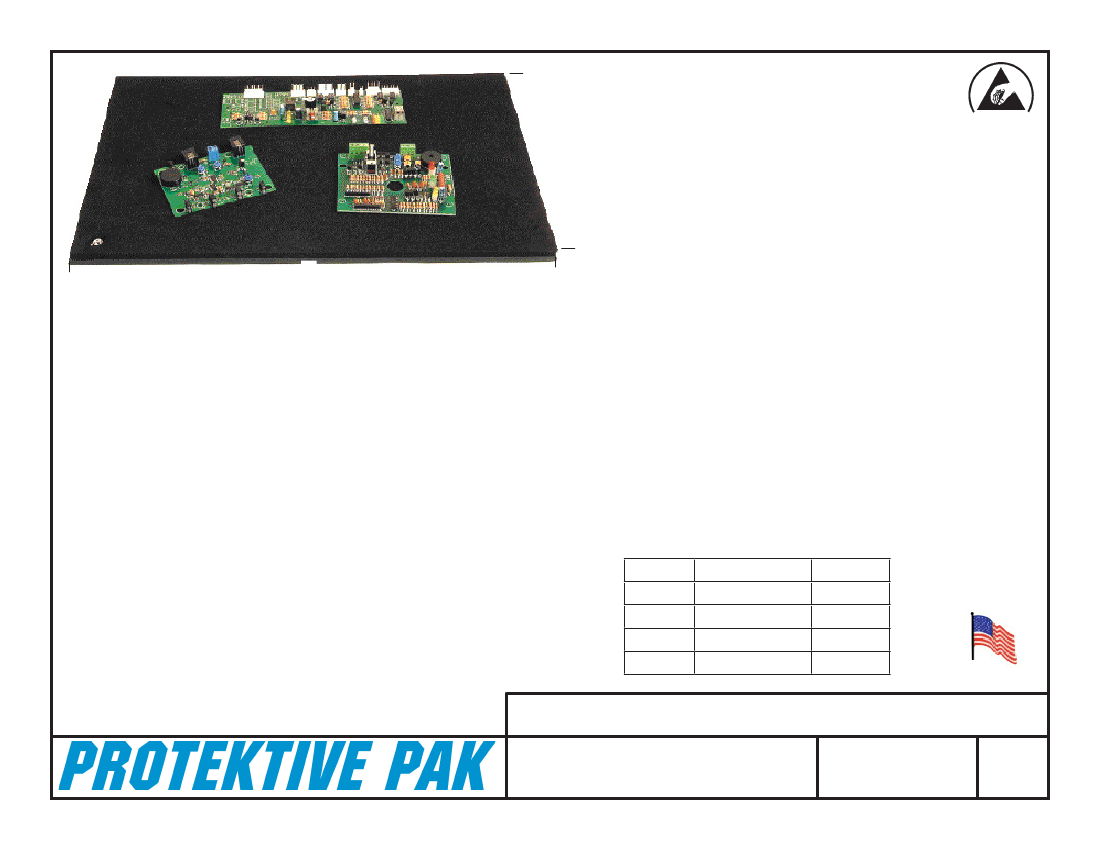

TEK-MATE™ BOARD HANDLERS
PROTEKTIVE PAK
13520 MONTE VISTA AVENUE, CHINO, CA 91710
PHONE (909) 627-2578, FAX (909) 363-7331
ProtektivePak.com
DRAWING NUMBER
37800
DATE:
July
2009
