807-22-001-30-001101 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 807-22-001-30-001101

807-22-001-30-001101: DescriptionHeaders u0026 Wire Housings 4P WTB VERT HDR PICO EZMATE; CategoryThe connector Connector bracket; File Size381KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

807-22-001-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	807-22-001-30-001101	-	-	View	Buy Now

807-22-001-30-001101 Overview

Headers u0026 Wire Housings 4P WTB VERT HDR PICO EZMATE

807-22-001-30-001101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

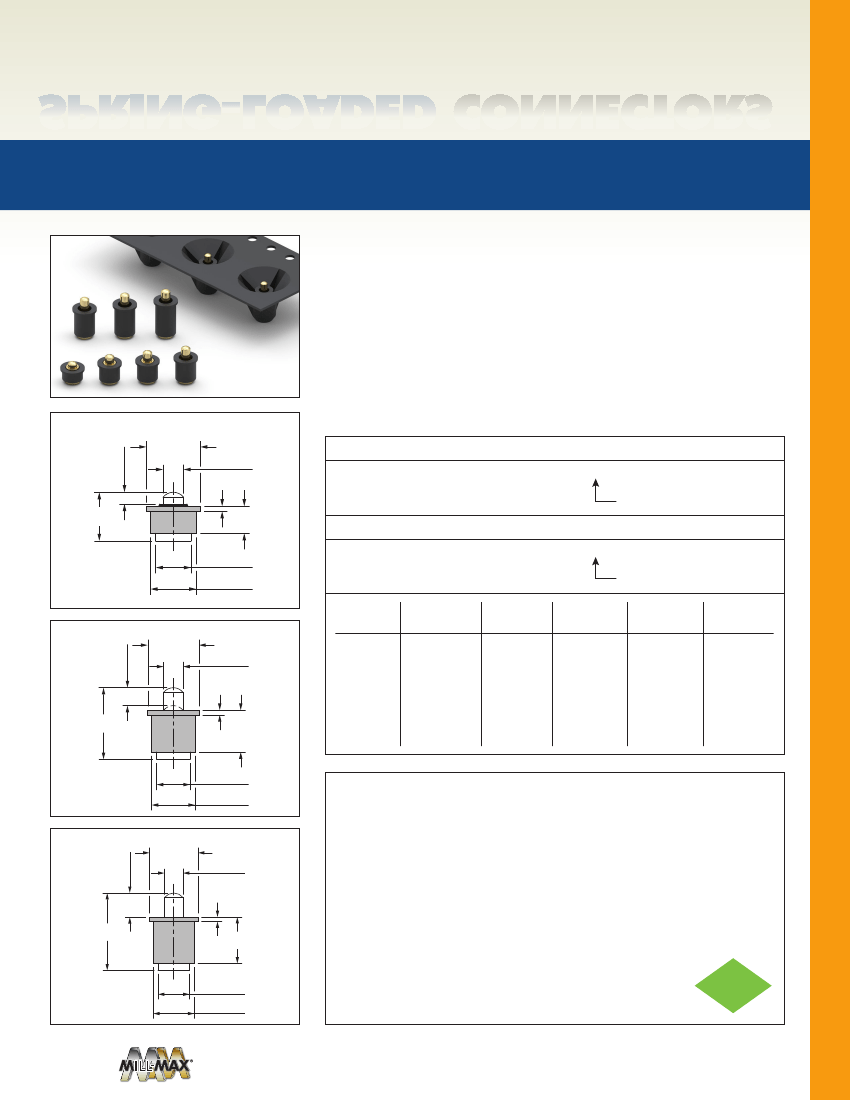

SPRING-LOADED

CONNECTORS

SERIES 807 • DISCRETE INSULATED SPRING-LOADED PINS •

SURFACE MOUNT

•

Discrete insulated spring-loaded pins; available in seven heights from 2,54 to 5,99,

with working travel from 0,3 to 0,7

•

Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle

life durability

•

Low resistance contacts are rated at 2 amps continuous, 3 amps peak

•

High temperature thermoplastic insulators are suitable for SMT soldering processes

•

807 series, contact styles 0 through 6, are available in bulk or on 16mm wide carrier

tape for auto-mated pick and place assembly. Tape and Reel packaging per EIA-481.

See below for ordering information

Series 807 (Contact Style 0)

Stroke

2,79 DIA.

1,07 DIA.

0,25

ORDERING INFORMATION

Series 807 (Bulk Packaged)

807-22-001-30-00X101

Specify contact style

0-6

1,83 DIA.

2,39 DIA.

Series 807 (Tape & Reel Packaged)

807-22-001-30-00X191

Specify contact style

0-6

Contact

Style

Initial

Height (A)

2,54

3,48

3,94

4,50

5,0

5,51

5,99

Working

Travel

0,3

0,5

0,7

MAX.

Stroke (B)

0,61

0,99

1,39

Sleeve

Height (C)

1,39

2,08

2,29

2,69

3,2

3,71

4,19

Quantity

per Reel

2,620

1,625

780

Series 807 (Contact Style 1 & 2)

Stroke

2,79 DIA.

1,07 DIA.

0,25

1,83 DIA.

2,39 DIA.

Series 807 (Contact Style 3-6)

Stroke

2,79 DIA.

1,07 DIA.

0,25

1,83 DIA.

2,39 DIA.

Materials:

Contact piston & base: Machined copper alloy plated 0,51μm gold over 2,54μm nickel

Spring (Contact style 0): Stainless Steel-plated 0,25μm gold

Spring (Contact style 1-6): Beryllium copper-plated 0,25μm gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height (A) (Contact style 0-6): 25 grams

Spring force @ mid stroke (B/2) (Contact style 0): 70 grams

Spring force @ mid stroke (B/2) (Contact style 1-6): 60 grams

Durability: 1,000,000 cycles

Electrical:

Current rating: 2A (continous), 3A (peak) per contact

RoHS - 2

Contact resistance: 20mW max.

2011/65/EU

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Technical Specifications

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 19.1 | SPRING-LOADED CONNECTORS
