850-10-050-40-001000 datasheet, PDF

Datasheet> All Categories > The connector> 850-10-050-40-001000

850-10-050-40-001000: DescriptionHeaders u0026 Wire Housings; CategoryThe connector; File Size316KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

850-10-050-40-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	850-10-050-40-001000	-	-	View	Buy Now

850-10-050-40-001000 Overview

Headers u0026 Wire Housings

850-10-050-40-001000 Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Mill-Max

Preview

Download Datasheet

View All

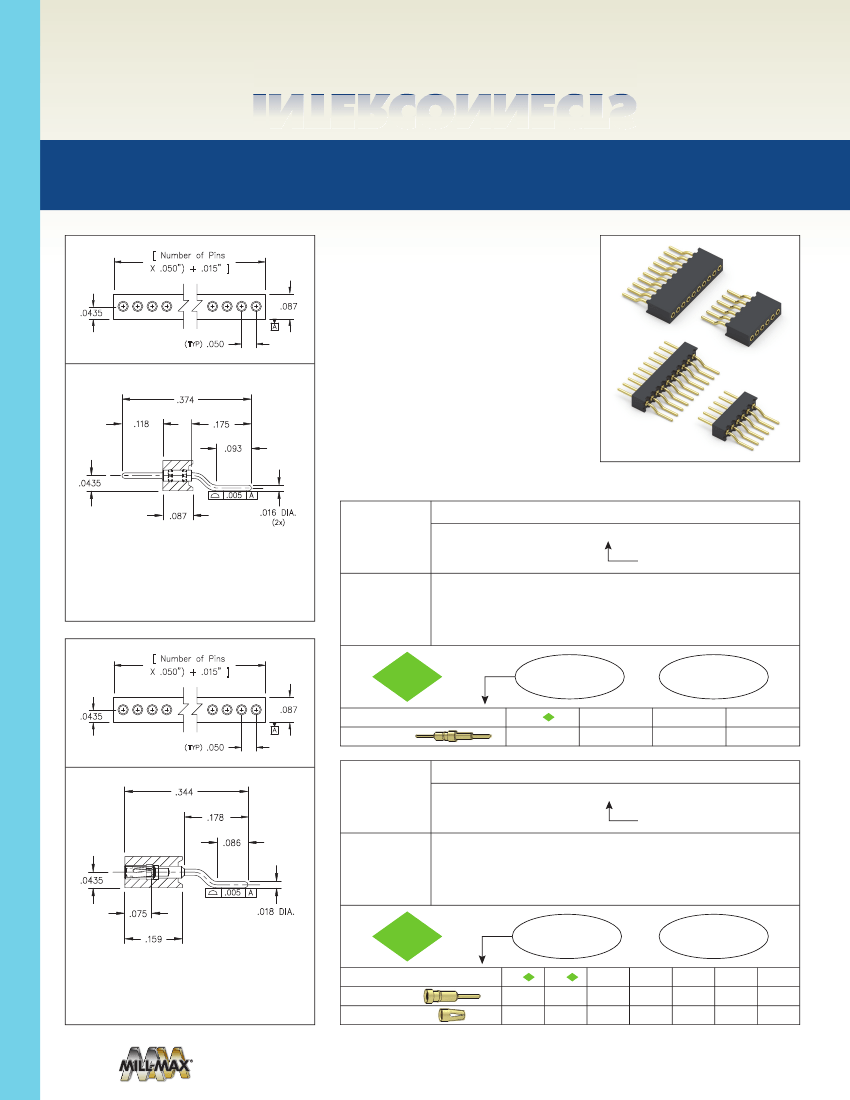

INTERCONNECTS

SERIES 850 & 851 • .050” GRID HORIZONTAL SURFACE MOUNT Z

-BEND

HEADERS & SOCKETS • SINGLE ROW STRIPS

•

Series 850 horizontal surface mount headers

[ Number of Pins

X .050") + .015" ]

have .016” dia. pluggable pins and Z-bend tails

for SMT soldering to the P.C.B. (MM #4006-1).

See page 208 for details

sockets uses MM #4890-1 receptacles that

accept pin diameters from .015”-.020”. See

page 160 for details

contact rated at 3 amps. See page 251

for details

suitable for all soldering operations

.0435

.087

•

Series 851 horizontal Surface Mount Z-Bend

(TYP)

.050

•

Receptacles use Hi-Rel, 3- nger BeCu #11

.374

.118

.175

.093

•

Insulators are high temperature thermoplastic,

.0435

.005 A

ORDERING INFORMATION

.016 DIA.

(2x)

.087

Series 850...001 Single Row Surface Mount Z-Bend Header

FIG. 1

850 10 0_ _ 40 001000

Specify number of pins

02-20

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

FIG. 1

[ Number of Pins

X .050") + .015" ]

2011/65/EU

.087

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.0435

SPECIFY PLATING CODE XX=

Pin Plating

(TYP)

.050

Series 851...001

.344

.178

.086

Single Row Surface Mount Z-Bend Socket

851 XX 0_ _ 40 001000

02-20

FIG. 2

Specify number of pins

PAGE 40 | INTERCONNECTS

.0435

.005 A

.075

.159

.018 DIA.

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity .005”. For pin counts >20 positions, consult

Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

µ”

FIG. 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
