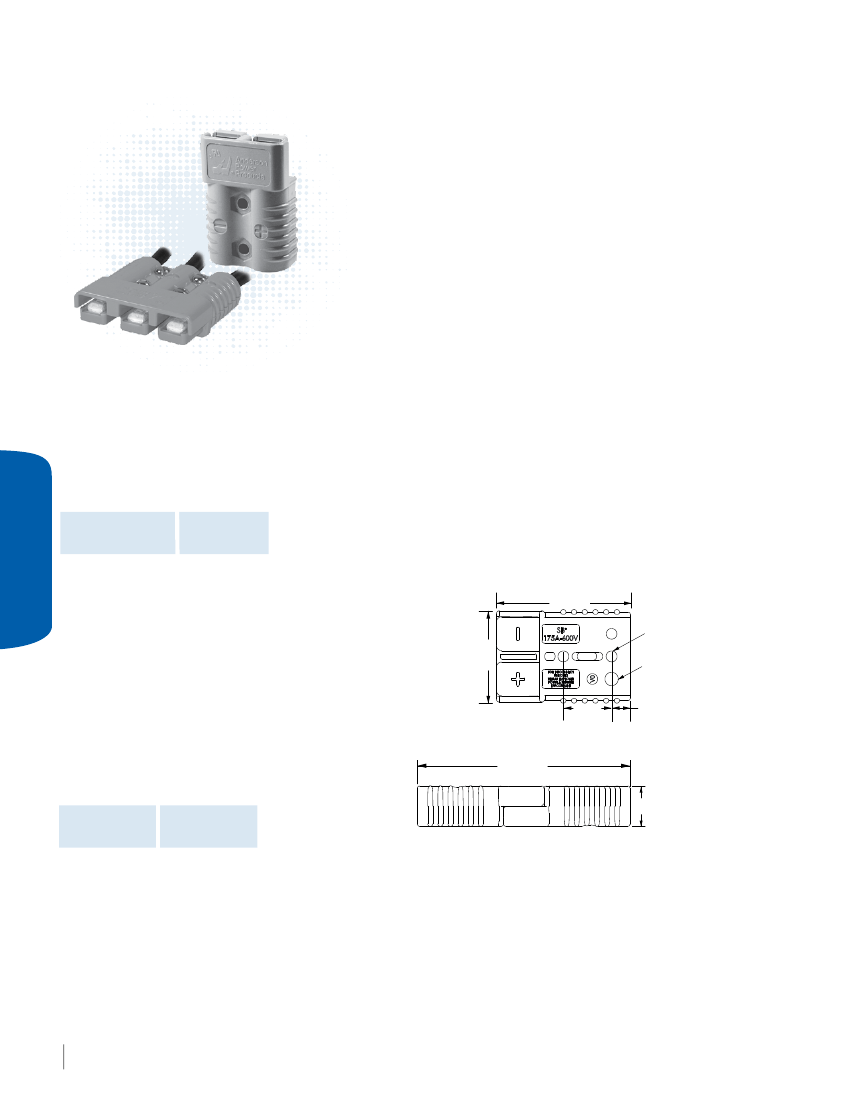

SB175
®
Connectors
- up to 280 Amps
2 Pole
Wires sizes from #12 (3.3 mm²) to 1/0 (50 mm²) fit in
the second to largest connector in the SB
®
series. The
3 pole SB
®
175 adds an additional position for power or
grounding. All Multipole wire connector housings are
genderless and mate to themselves minimizing inven-
tory and assembly complexity.
3 Pole
• Silver Plated Wire Contacts up to 1/0 (50 mm²)
Allows UL rated currents up to 280 amps
• Chemical Resistant Housing Option
Extends temperature range down to -40°C, while offering
enhanced UV and chemical resistance
Great for battery or other applications where the ability to
interrupt circuits is required
• UL Rated for Hot Plugging up to 100 Amps
| SB
®
175 ORDERING INFORMATION |
SB
®
175 Standard Housings
The second to largest SB
®
housings work with wire contacts up to 1/0
AWG [50 mm²] as well as busbar contacts. Genderless design mates with
itself. Mechanical keys are color coded. NOTE: SB175 black is keyless
and can be mated with all other colors.
Voltage
Color
Description
Code
Minimum Quantity ..........
Yellow
12V
Orange
18V
Red
24V
Gray
36V
Blue
48V
Black (Keyless) 80V
Brown
96V
--- Part Numbers ---
200
50 ...
943-BK
943
942-BK
942
949-BK
949
940-BK
940
941-BK
941
2-7252G11 -
940-BK
940
SECTION 3
Bottom View
[ 79.6 ]
3.13
[ 6.5 ]
Ø 0.26
(2) PLC’S
Material ID
P = Chemical
Resistant
[ 28.6 ]
1.13
Mated Length
[ 11.3 ]
0.45
SB
®
175
[ 55.6]
2.19
SB
®
175 Chemical Resistant Housings
®
Same features as the Standard SB 175 but molded in a
chemical resistant PBT/ PC blend. Suitable for use to -40°C.
Voltage
Color
Description Code
---- Part Numbers ----
Minimum Quantity ......
200
50 ...
Red
24V
P949-BK
P949
Gray
36V
P940-BK
P940
[ 133.4 ]
5.25
[ 25.4 ]
1.00
- 66 -
www.andersonpower.com
All Data Subject To Change Without Notice
SB
®
175 3 Pole Housings & Hardware
®
Top View
[ 79.4 ]
3.13
[28.6]
1.13
A three pole version of the standard SB 175 housing has
a two piece housing with springs and hardware. Useful for
DC 2 wire plus ground and AC single phase applications.
Voltage
Color
Description
Code
--- Part Numbers ---
Minimum Quantity .......................................
100
25 ....
-
902
Gray Housing and Hardware Kit 36V
Gray Housing Top Half
-
2-5048
-
Gray Housing Bottom Half
-
2-5049
-
-
-
110G34
Hardware Kit
[ 11.7 ]
0.46
[ 6.7 ]
Ø 0.27 (4)
Side View
[ 28.6 ]
1.13
[ 82.6 ]
3.25
[ 25.4 ]
1.00
[ 26.2 ]
1.03
SB
®
175 Silver Plated Wire Contacts
Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles.
Dimensions
Mating
Loose Piece
-A-
-B-
-C-
-D-
AWG
mm²
Force - Part Numbers - inches mm
inches mm
inches mm inches mm
Minimum Quantity ........... 500
50
..........................................................................................................
1/0
53.5
High
1382-BK 1382
2.35
59.69 0.52
13.21
0.44
11.18 1.04
26.42
1
42.4
High
1347-BK 1347
2.35
59.69 0.52
13.21
0.39
9.91 1.04
26.42
2
33.6
High
1383-BK 1383
2.35
59.69 0.52
13.21
0.35
8.89 1.04
26.42
4
21.1
High
1384-BK 1384
2.35
59.69 0.52
13.21
0.30
7.62 1.04
26.42
6
13.3
High
1348-BK 1348
2.10
53.34 0.37
9.40
0.22
5.59 0.80
20.32
SB
®
175
SECTION 3
D
C
B
A
[ 12.7 ]
0.50
SB
®
175 Silver Plated Busbar Contacts
Provides a quick disconnect input or output busbar connection.
Busbar contacts are for mating with wire contacts only. Part number
180BBS includes lock nuts. Locknuts must be ordered separately
for 180BBS-BK.
Mating
Type
Thread
Force
------ Loose Piece Part Numbers ------
Minimum Quantity ..................... 1,000
120
10 ....
Busbar
1/4-20
High
-
180BBS-BK 180BBS
Lock Nut 1/4-20
-
H1216P7
110G56
110G55
See Busbar contact drawing on
website for further detail.
[ 109.0 ]
4.29
[ 12.7 ]
0.5
B
#¼- 20 THD
[ 25.4 ]
1.0
[ 4.57 ]
0.18
All Data Subject To Change Without Notice
www.andersonpower.com
- 67 -
| SB
®
175 CONNECTOR SPECIFICATIONS |
Electrical
Current Rating Amperes¹
Wire to Wire (1/0 AWG)
Wire to Busbar (1/0 AWG)
Voltage Rating AC/DC
UL 1977
Dielectric Withstanding Voltage
Volts AC
UL 1977
280
200
CSA
175
Mechanical
Wire Size Range
Wire Contacts with Bushings
Max. Wire Insulation Diameter
AWG
12 to 1/0
in.
0.600
°F
-4° to 221°
-40 to 221°
Silver (Ag)
10,000
Lbf.
25
35
mm²
3.3 to 53.5
mm
15.240
°C
-20° to 105°
-40° to 105°
600
Operating Temperature²
Standard
Chemical Resistant*
Mating Cycles No Load by Plating
Wire and Busbar Contacts
Avg. Mating / Unmating Force
2 Pole
3 Pole
2,200
Avg. Mated Contact Resistance Milliohms¹
6” of 1/0 AWG wire
0.100
UL Hot Plug Current Rating Amperes - Wire & Busbar
250 cycles at 120V DC 1/0 wire
100A
Materials
N
111
156
Housing
Standard Plastic Resin
Chem. Resistant Resin
Contact Retention Spring
Housing Flammability Rating
UL94
Wire & Busbar Contacts
Base
Plating
Contact Termination Methods
Crimp³
Hand Solder
Wrench / Socket
Polycarbonate
Polycarbonate / PBT blend
Stainless Steel
Min. Contact / Spring Retention Force
lbf
150
N
667
Protection
V-0
Touch Safety with Wire Contacts
IEC 60529
IP10
¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP
®
recommended tooling, and a
25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below a 30°C
temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Use APP
®
recommended tooling only. Alternate tools may adversely affect the performance of our connectors along
with UL and CSA recognition.
Copper Alloy
Silver
SECTION 3
Wire Contacts
Wire Contacts
Busbar Contacts
SB
®
175
| SB
®
175 CONNECTOR TEMPERATURE CHARTS |
SB
®
175
Temperature Rise at Constant Current
125
SB
®
175
Derating vs. Ambient Temperature
60
50
Temperature (°C)
40
30
20
10
0
Temperature (°C)
0
25
50
75
100 125 150 175 200 225 250
Amperes Applied
1/0 AWG
2 AWG
1 AWG
4 AWG
100
75
50
25
0
25 50 75 100 125 150 175 200 225 250 275 300
Amperes Applied
1/0 AWG
2 AWG
1 AWG
4 AWG
NOTE: Temperature rise charts are based on a 25°C ambient temperature.
- 68 -
www.andersonpower.com
All Data Subject To Change Without Notice
| SB
®
175 Accessories |

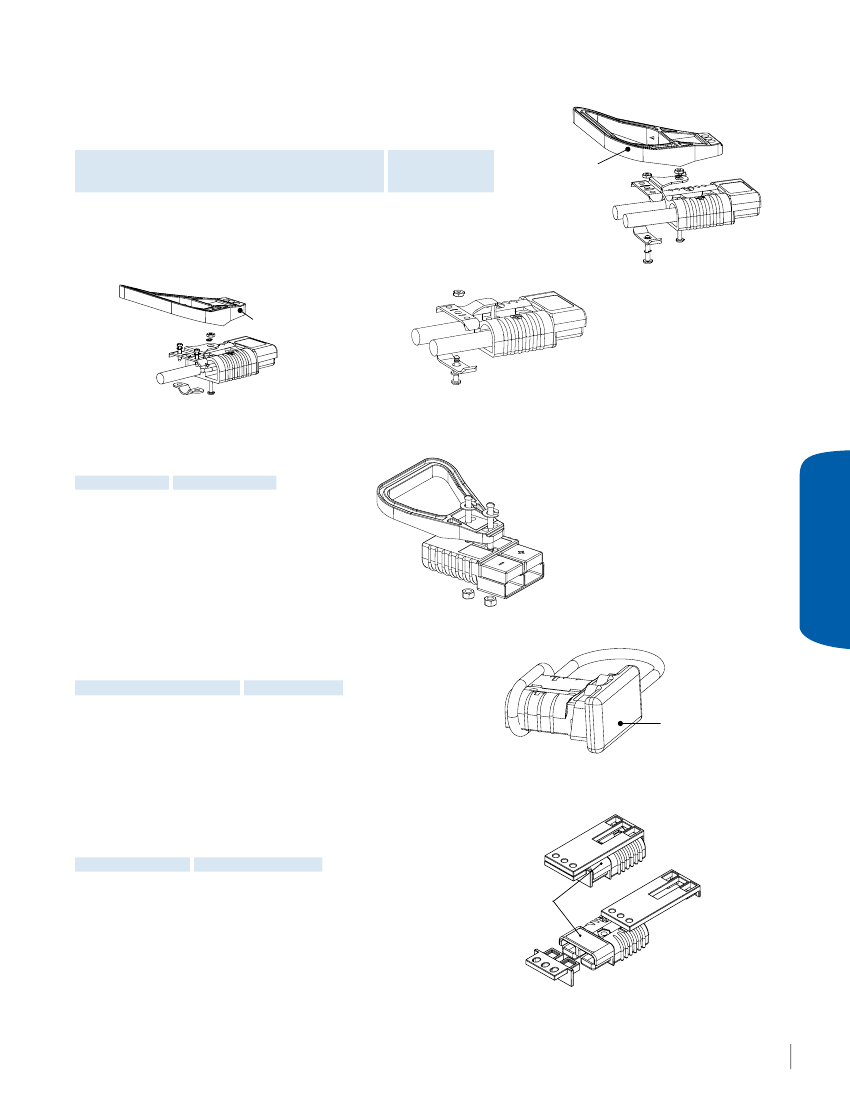

Durable metal cable clamps securely hold cables to prevent accidental strain or pulls from dislodging
wire or contacts from the housing. Only Bolt On type clamps can be used with the handles. Cable
clamps are recommended for solder terminated wires. Not for use with 3 pole housing.
Cable Size
Max / Min In. Max / Min mm
Description
Inches O.D.
mm O.D.
---- Part Numbers ----
100
50 ....
Minimum Quantity ...................................................................................
Self Attaching for Discrete Conductor 0.55 to 0.24
14 to 6
105G3
945
0.66 to 0.24
16.7 to 6.2
945G3-BK 945G3
Bolt On for Discrete Conductor
Bolt On for Bundled Conductor
0.75 to 0.29
18.3 to 7.3
946G1-BK 946G1
Cable Clamps
945G3
"A" Frame Handle
(not included).
946G1
"A" Frame Handle
(not included).
945
The given wire O.D. information is an
estimate. Cable clamps should be
evaluated for performance with the
actual wire to be used.
Handles
Handles are made out of durable PC plastic. Hardware to
attach to connector body included in kits. Not for use with
3 pole housing.
SB
®
175
SECTION 3
Description
----- Part Numbers -----
Minimum Quantity ....
100
25 ...
Gray Handle Kit
995G1-APP
995G1
Red Handle Kit
995G3-APP
995G3
Handle Only, Gray
3-5074P1
-
Handle Only, Red
3-5074P3
-
Handle Only, Black 3-5074P5
-
Hardware Bag
-
105G8
995G1
Dust Cover
Prevents dust and dirt from entering the mating interface
of the connector when unmated. NOTE: Not a Hermetic Seal.
Not for use with 3 pole housing.
Description
----- Part Numbers ----
Minimum Quantity .............................
500
50 ...
Dust Cover with Lanyard Strap, Red 113890P2 134G2
Slide cover over
mating end.
SB
®
175 Lockout
Works with standard lockout - tagout equipment to prevent access
to the mating interface of the connector. Made from durable PC plastic.
Can be used with 3 pole housing to lockout positive and negative
positions only.
Description
Minimum Quantity ..........
Red Lockout - Tagout Kit
--------- Part Numbers ---------
50
25
.......
GA-175 SB175-LOCKOUT
SB
®
175 Connector
not included.
All Data Subject To Change Without Notice
www.andersonpower.com
- 69 -

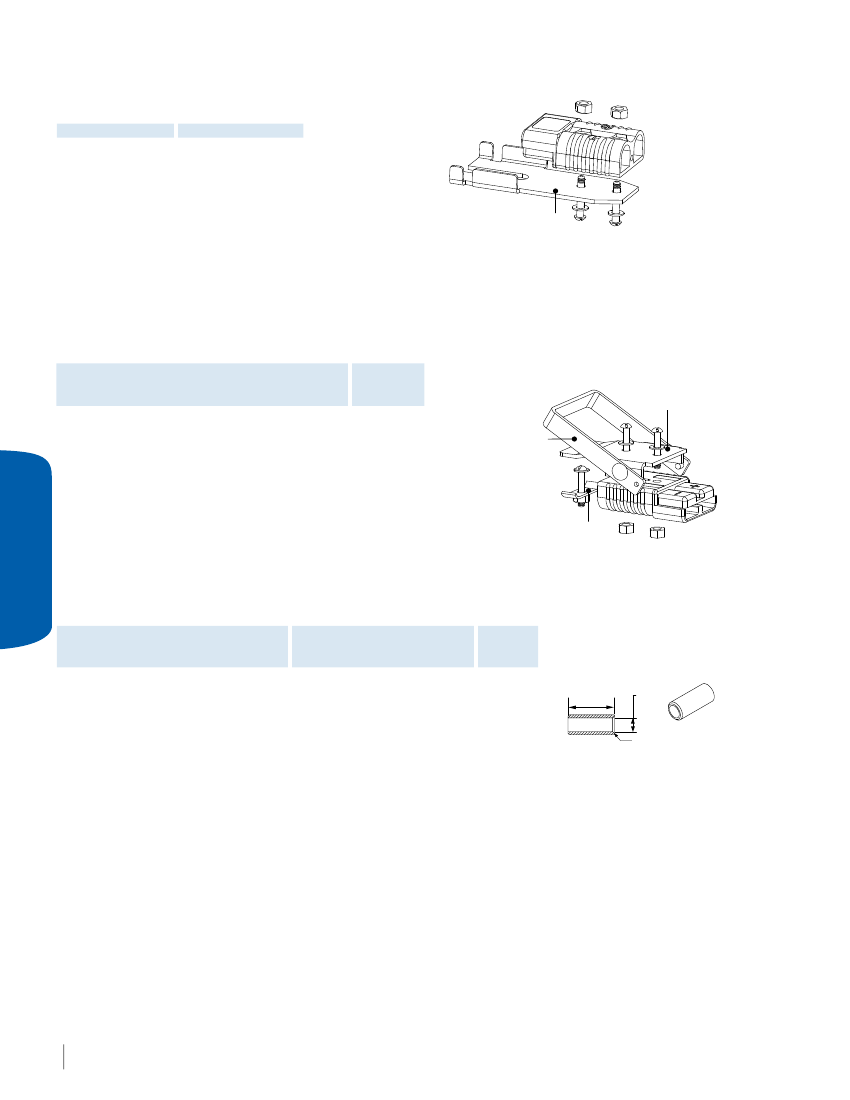

Manual Release Bracket - Mounting Side
Works with the Locking Side to ease mating and unmating connectors.
Not for use with 3 pole housing.
-------- Part Numbers --------
Description
Minimum Quantity ............
96
25
10 ...
Bracket and Hardware Kit
-
-
924
B00333P1
-
-
Bracket Only
Hardware Bag
-
105G1
-
Mounting Plate
Manual Release Bracket - Locking Side
Works with the Mounting Side to ease mating and unmating
connectors. Not for use with 3 pole housing.
Cable Size
Max / Min
Max / Min
Description
Inches O.D.
mm O.D.
- Part Number -
Minimum Quantity .............................................................................
10 .........
Bracket and Hardware Kit w/ Clamp
0.50 to 0.21
12.6 to 5.4
923
The given wire O.D. information is an estimate. Cable clamps should be
evaluated for performance with the actual wire to be used.
Locking Plate
Handle
Cable Clamp
SECTION 3
SB
®
175
Reducing Bushings: for Use with Contact # 1382
Use with contact part number 1382-BK to allow a smaller wire to be used with the connector. Electrical capability
is derated with smaller wire.
Dimensions
- ID -
Contact Barrel Size
Wire Size
----------------- Part Numbers ------------------ inches mm
Minimum Quantity ....................................................... 1,500
1,000
500
100 ......................
1/0 AWG [53.5 mm²] #1 AWG [42.4 mm²]
-
-
5687-BK 5687 0.39
9.91
1/0 AWG [53.5 mm²] #2 AWG [33.6 mm²]
5690-BK
-
-
5690 0.34
8.64
1/0 AWG [53.5 mm²] #4 AWG [21.2 mm²]
-
5693-BK
-
5693 0.27
6.86
1/0 AWG [53.5 mm²] #6 AWG [13.3 mm²]
-
5663-BK
-
5663 0.22
5.59
1/0 AWG [53.5 mm²] #10 - 8 AWG [5.3 - 8.4 mm²] 5648-BK
-
-
5648 0.19
4.83
[ 25.4 ]
1.00
ID
Wire Entrance
- 70 -
www.andersonpower.com
All Data Subject To Change Without Notice
