74712-4001

CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

74712-4001 Online Shopping

Suppliers Part Number Price MOQ In stock
74712-4001 - - View Buy Now

74712-4001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresPOLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch6.25 mm
Termination typePRESS FIT
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

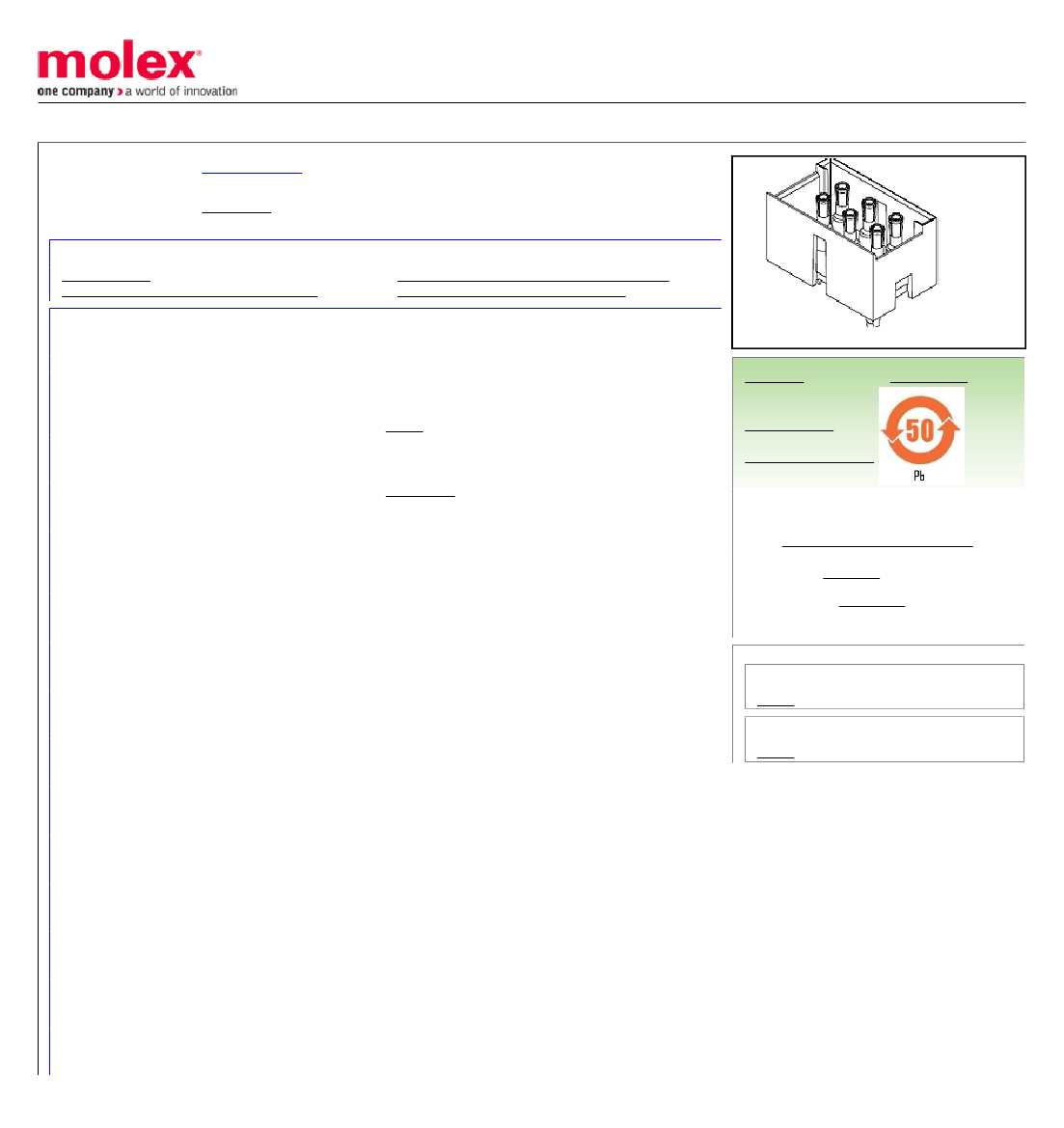

This document was generated on 01/27/2015
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
74712-4001
Active
Ganged RF
6.25mm Pitch Ganged RF Header, Vertical, 8 Circuits
Documents:
Drawing (PDF)
Product Specification PS-74854-001 (PDF)
Packaging Specification PK-74712-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E107635
image - Reference only
EU RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
UPC
Backplane Connectors
74712
Backplane
Ports Numbered 2, 5, 8, and 11 Loaded
PCB Header
Ganged RF
Ganged RF
N/A
822350730822
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
8
8
8
Black, Natural
500
No
94V-0
No
Yes
Copper
Gold
High Temperature Thermoplastic, Polyester
13.730/g
4
N/A
2
Vertical
2.24mm
Yes
None
4.50mm
Tray
6.25mm
6.25mm
Yes
No
Yes
-40°C to +85°C
Through Hole - Compliant Pin
Search Parts in this Series
74712Series
Mates With
74642 Ganged RF Receptacle
